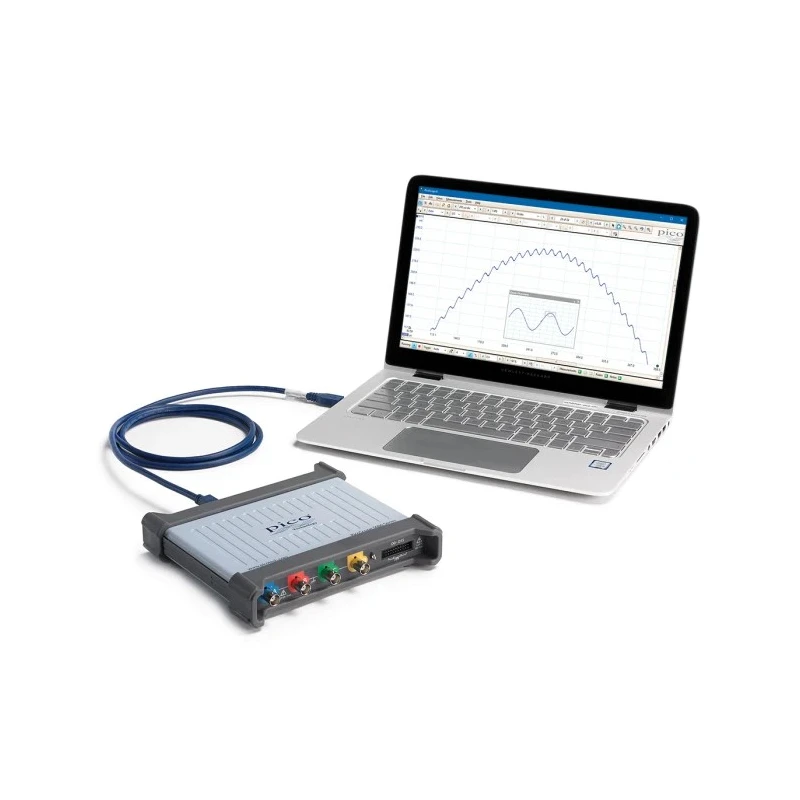

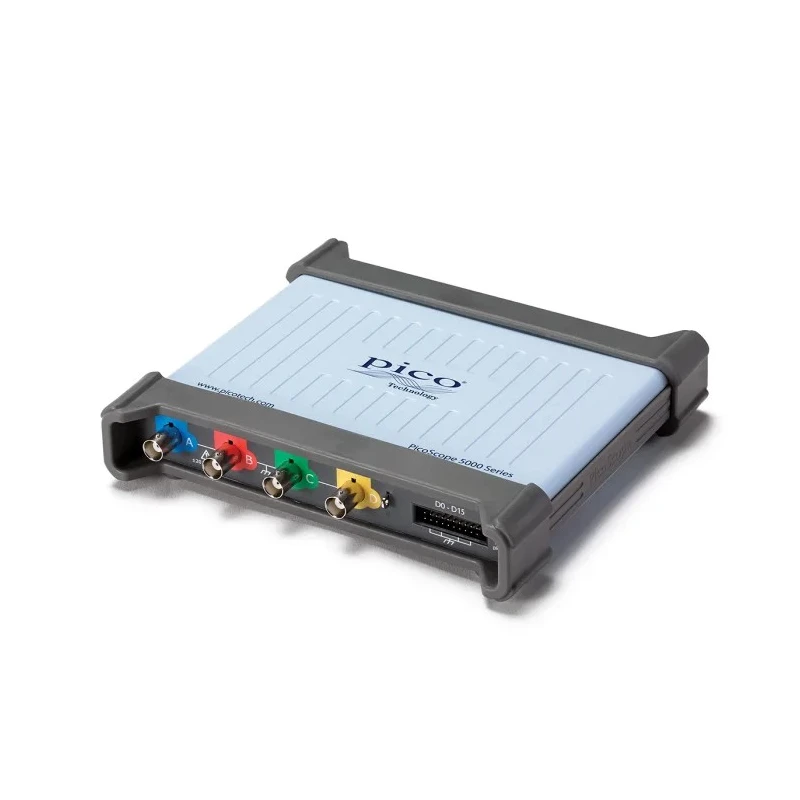

Pico Technology PicoScope 5000D Series 200 MHz PC Based 4-Channel Oscilloscope PicoScope 5444D MSO
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 8 bit |
| Brand | pico Technology |
| Height | 40mm |
| Length | 190mm |
| Model | PicoScope 5444D MSO |
| Width | 170mm |
| Bandwidth | 200MHz |
| Series | PicoScope 5000D |
| Number Of Channels | 4 |
| Vertical Resolution | 16 bit |
| Rise Time | 1.75ns |
| Interface Type | CAN, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Digital Channels | 16 |
| Minimum Vertical Sensitivity | 2mV/div |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
Key Features
- Oscilloscope features FlexRes® Technology switching between 8 and 16 bit resolution for optimal performance.
- Sampling rates include 1 GS/s at 8 bit, 500 MS/s at 12 bit, and 62.5 MS/s at 16 bit resolution.
- Includes 512 MS buffer memory for capturing detailed waveforms and 16 digital channels for mixed signal analysis.
- Equipped with a 200 MS/s arbitrary waveform generator supporting various serial decodings and mask testing.
- Compatible software runs on Windows, Linux, and Mac platforms.
- Multi-instrument capabilities include logic analyser and spectrum analyser functionality.
- Suitable for diverse industrial, laboratory, telecom, research, automotive, and education applications.
Product Description
Pico Technology PicoScope 5444D MSO PC Based Oscilloscope is a high-performance 4-channel instrument from the PicoScope 5000D Series, offering 200 MHz analog bandwidth with up to 16-bit vertical resolution using FlexRes® Technology. Designed for engineers, technicians, and students, it provides exceptional analog and mixed signal measurement capabilities essential for accurate real-time signal capture and analysis.
The device supports sampling rates of up to 1 GS/s at 8 bit resolution, 500 MS/s at 12 bit, and 62.5 MS/s at 16 bit, with a deep 512 MS buffer memory for extended waveform capture. The built-in 200 MS/s arbitrary waveform generator adds versatility for stimulus or test signal generation.
With 16 digital channels, the 5444D MSO enables simultaneous digital and analog signal view, facilitating thorough mixed signal debugging. Serial decoding and mask testing are included standard, enabling protocol analysis for interfaces like CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB.
The oscilloscope’s compact dimensions of 190 mm length, 170 mm width, and 40 mm height with USB and AC adapter power support make it ideal for field and laboratory use. The device interfaces with Windows, Linux, and Mac software platforms.
Applications cover a broad range of fields including scientific research, medical device testing, telecommunications, automotive electronics, general-purpose troubleshooting, production testing, education, and training.
FlexRes® Technology switches resolution between 8 and 16 bits for optimized performance. 1 GS/s sampling rate at 8 bit, with deeper sampling for higher resolutions. 512 MS buffer size for detailed waveform capture. 16 digital channels available for mixed signal analysis.
200 MS/s arbitrary waveform generator included. Standard serial protocol decoding and mask testing. Compatible with Windows, Linux, and Mac operating systems. Compact and portable form factor for versatile usage. Explore advanced Oscilloscopes and precision measuring equipment from Pico Technology and other brands at EnvMart, your trusted industrial catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 5444D MSO has a bandwidth of 200 MHz, allowing for a wide range of signal measurements.
This oscilloscope supports sampling rates of up to 1 GS/s at 8 bit resolution, 500 MS/s at 12 bit, and 62.5 MS/s at 16 bit resolution.
It features 4 analog channels and 16 digital channels for mixed signal analysis.
The dimensions of the PicoScope 5444D MSO are 190 mm in length, 170 mm in width, and 40 mm in height.
The minimum vertical sensitivity is 2 mV/div, while the maximum vertical sensitivity is 4 V/div.
This model supports various interfaces including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB.
The rise time of this oscilloscope is 1.75 ns, which is suitable for capturing fast signals.
It is equipped with a 512 MS buffer memory, allowing for detailed waveform capture.
The PicoScope 5444D MSO is compatible with Windows, Linux, and Mac operating systems.
In addition to standard oscilloscope features, it includes a 200 MS/s arbitrary waveform generator and capabilities for serial decoding and mask testing.
This oscilloscope is suitable for diverse applications including scientific research, medical device testing, telecommunications, automotive electronics, and education.
It utilizes FlexRes® Technology, enabling switching between 8 and 16 bit resolution for optimal performance.
