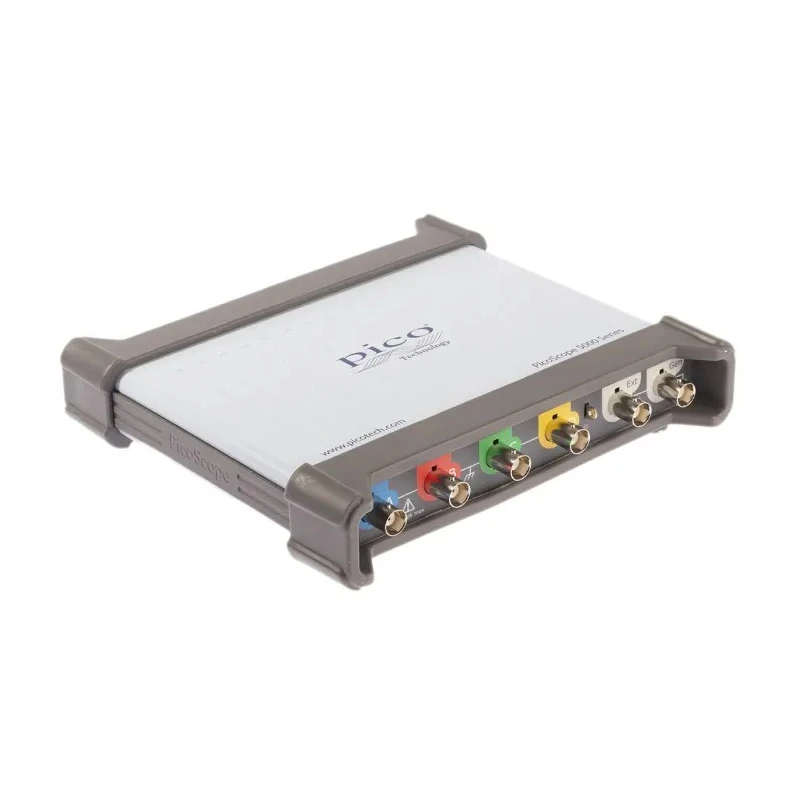

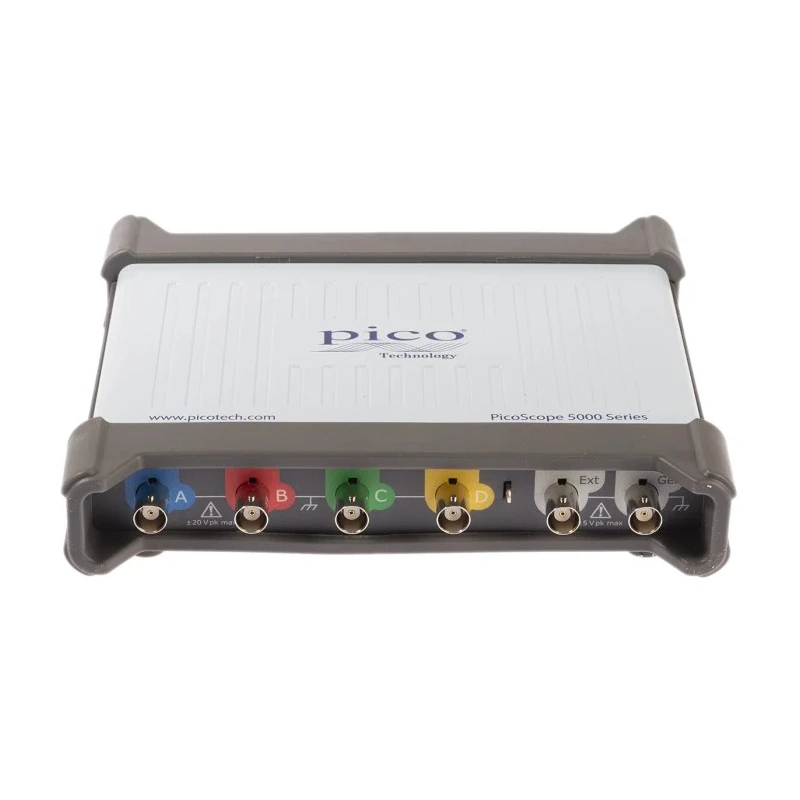

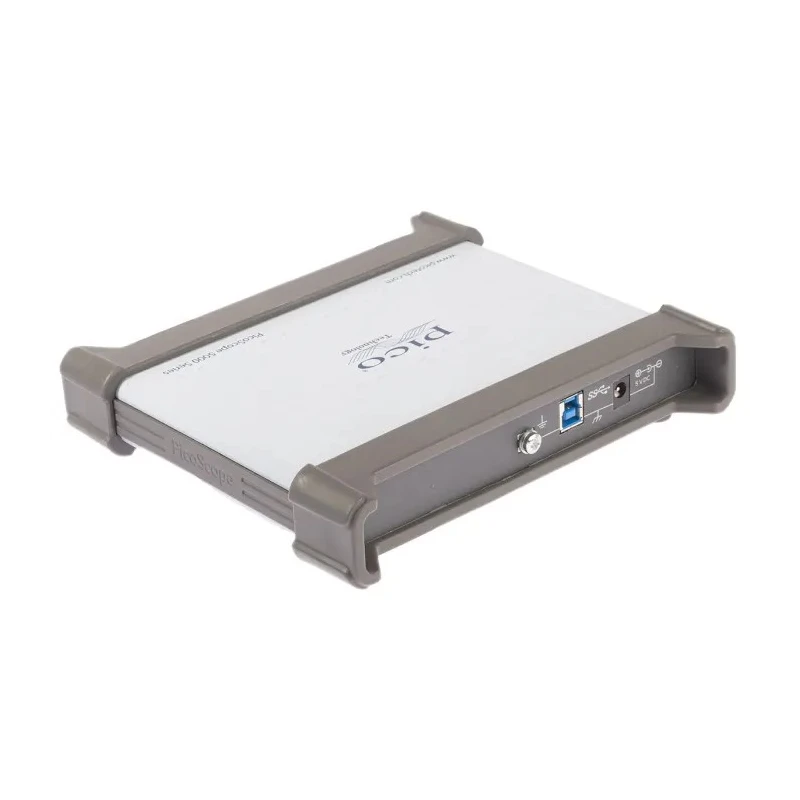

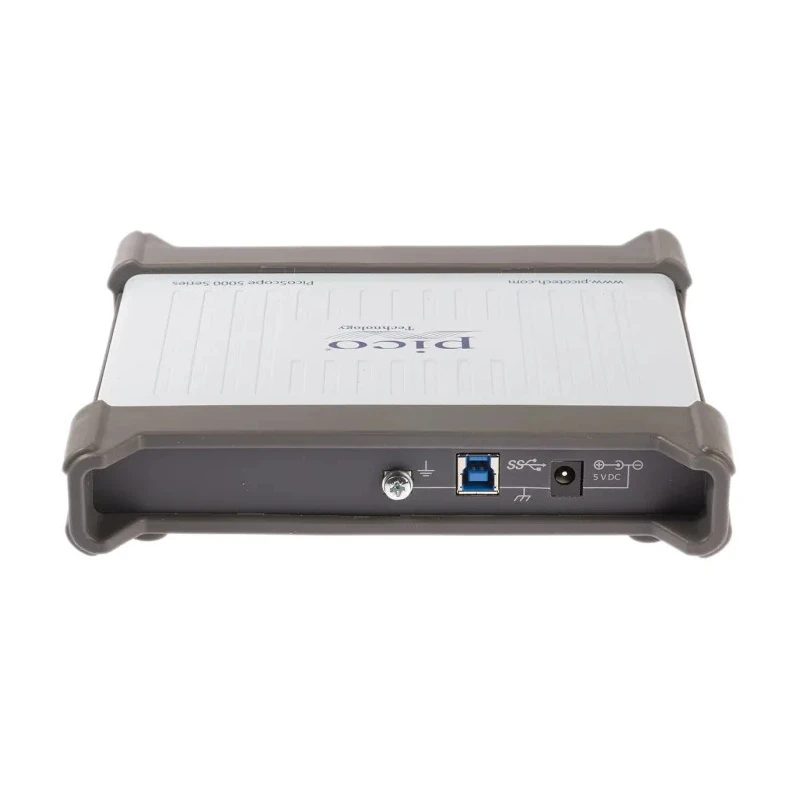

Pico Technology PicoScope 5000D Series PC Based Oscilloscope 4-Channel 200 MHz Bandwidth PicoScope 5444D
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 8 bit |
| Brand | Pico Technology |
| Height | 40mm |
| Length | 190mm |
| Model | PicoScope 5444D |
| Width | 170mm |
| Bandwidth | 200MHz |
| Series | PicoScope 5000D |
| Number Of Channels | 4 |
| Vertical Resolution | 16 bit |
| Rise Time | 1.75ns |
| Interface Type | CAN, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 2mV/div |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
Key Features
- High bandwidth of 200 MHz supports detailed signal analysis.
- Features 4 independent input channels for multi-signal measurement.
- Utilizes advanced ADC technology offering 8 to 16 bit hardware resolution.
- Sampling rates up to 1GS/s at 8 bit and 500MS/s at 12 bit resolution.
- Large 512MS buffer memory enables extended waveform capture.
- Comes with a 200MS/s arbitrary waveform generator for versatile testing.
- Supports serial protocol decoding and mask limit testing.
- Compatible with Windows, Linux, and Mac operating systems.
Product Description
Pico Technology PicoScope 5444D PC Based Oscilloscope is a versatile 4-channel instrument from the PicoScope 5000D Series with a bandwidth of 200 MHz. Designed for demanding applications across research, development, and production, it delivers exceptional performance with a compact footprint measuring 190mm long, 170mm wide, and 40mm tall.
This oscilloscope features cutting-edge ADC technology with hardware resolution dynamically switching between 8 and 16 bits, enabling high-fidelity signal capture. It provides ultra-fast sampling rates of up to 1GS/s at 8 bit resolution, 500MS/s at 12 bit resolution, and 62.5MS/s at 16 bit resolution. The large 512MS buffer allows for detailed waveform analysis over extended sample periods.
Equipped with a 200MS/s arbitrary waveform generator and multi-instrument capabilities, it supports serial data decoding and mask limit testing, enhancing diagnostics across automotive electronics, embedded systems, mixed signal, and video applications. Its interface types include CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB for broad connectivity.
The device is powered by an AC adapter or USB-C interface and provides vertical sensitivity from 2mV/div to 4V/div, with a rise time of 1.75ns and a minimum time base of 1ns/div. Its 16-bit vertical resolution ensures precise measurements essential for electronics troubleshooting and advanced scientific instrumentation.
Manufactured in the United Kingdom, this new oscilloscope delivers reliable results suitable for educational laboratories, electronics development, manufacturing quality control, and automotive diagnostics.
High bandwidth of 200 MHz supports detailed signal analysis. Features 4 independent input channels for multi-signal measurement. Utilizes advanced ADC technology offering 8 to 16 bit hardware resolution. Sampling rates up to 1GS/s at 8 bit and 500MS/s at 12 bit resolution.
Large 512MS buffer memory enables extended waveform capture. Comes with a 200MS/s arbitrary waveform generator for versatile testing. Supports serial protocol decoding and mask limit testing. Compatible with Windows, Linux, and Mac operating systems.
Compact form factor with 190mm length, 170mm width, and 40mm height. Ideal for educational labs, embedded electronics, automotive, and video design. Explore other Pico Technology Oscilloscopes and measurement instruments available at EnvMart for advanced industrial and laboratory testing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 5444D has a bandwidth of 200 MHz, allowing for detailed signal analysis.
This model features 4 independent input channels for multi-signal measurement.
It offers sampling rates of up to 1 GS/s at 8 bit resolution and 500 MS/s at 12 bit resolution.
The vertical resolution can dynamically switch between 8 bits and 16 bits, with a maximum vertical resolution of 16 bits.
The oscilloscope measures 190 mm in length, 170 mm in width, and 40 mm in height.
It supports various interface types including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB.
The minimum vertical sensitivity is 2 mV/div, allowing for fine measurement adjustments.
The rise time of the PicoScope 5444D is 1.75 ns, which is suitable for capturing fast signals.
The minimum time base is 1 ns/div, enabling high-resolution time measurements.
It features a large buffer memory of 512 MS, which allows for extended waveform capture.
The PicoScope 5444D is compatible with Windows, Linux, and Mac operating systems.
This oscilloscope is ideal for applications in automotive electronics, embedded systems, mixed signal, and video design.
