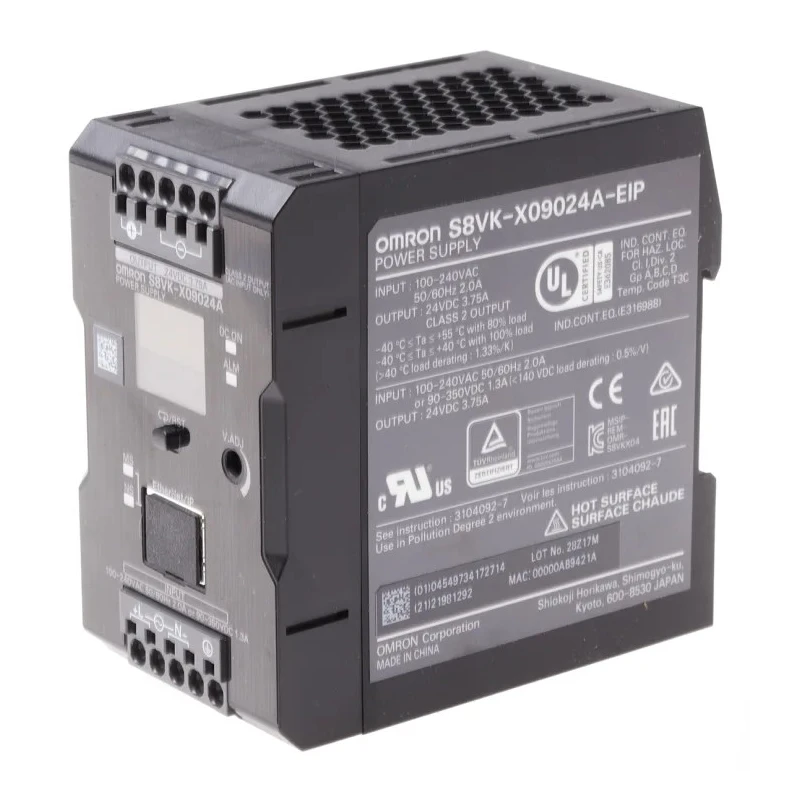

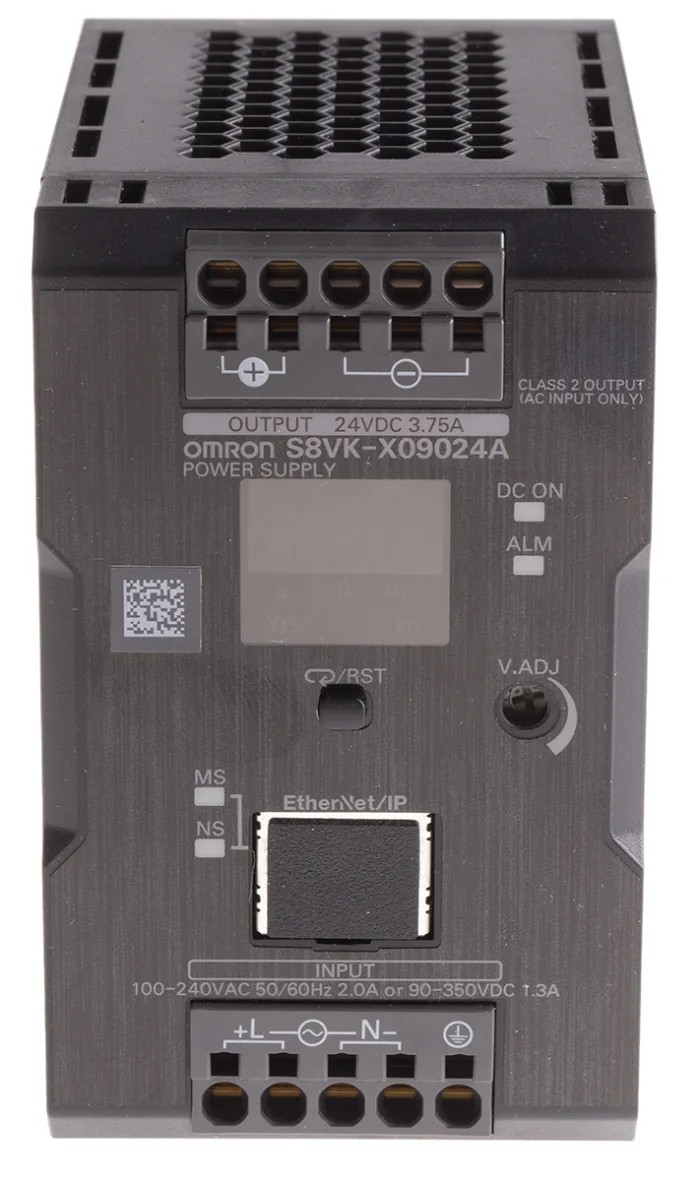

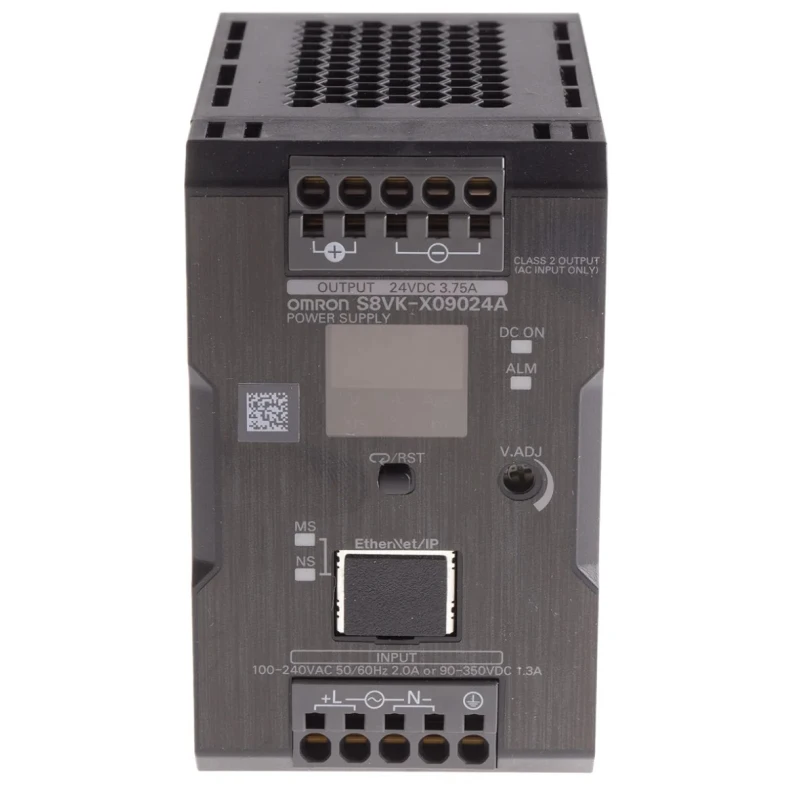

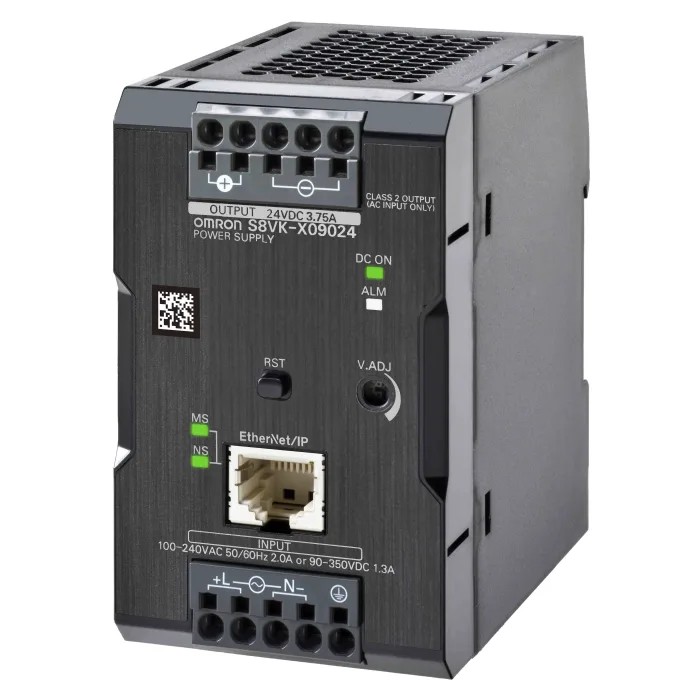

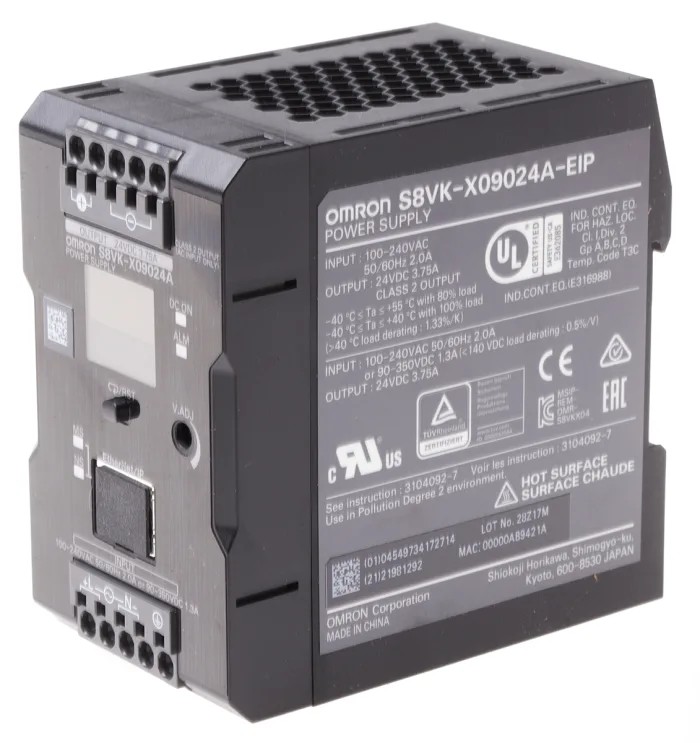

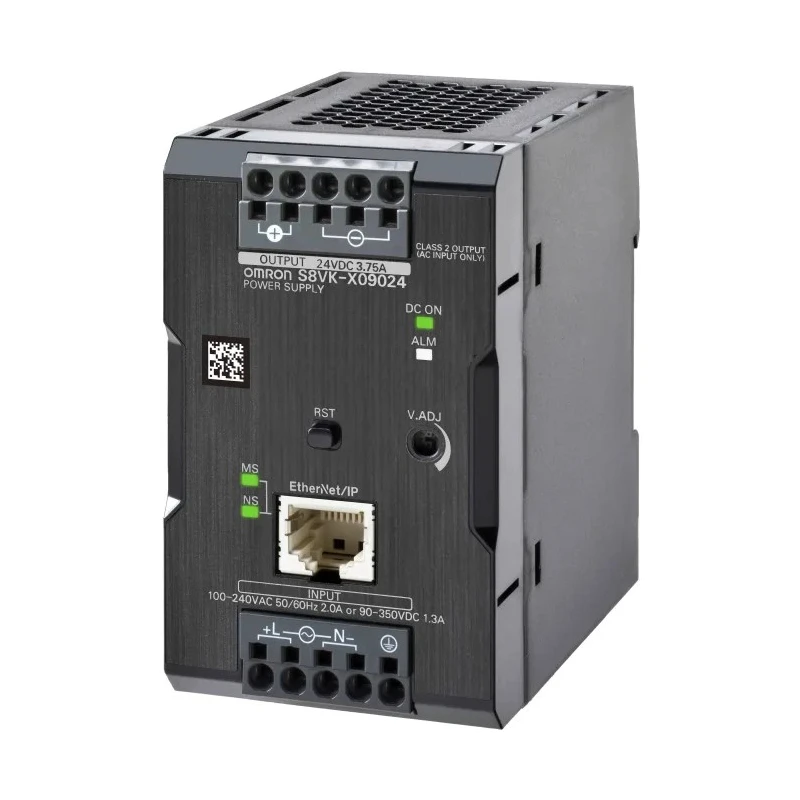

Omron S8VK-X Switched Mode DIN Rail Power Supply 90W 24.1V dc, 3.75A Output S8VK-X09024-EIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Power | 90W |
| Efficiency | 87% |
| Height | 90mm |
| Model | S8VK-X09024-EIP |
| Depth | 92mm |
| IP Rating | IP20 |
| Width | 55mm |
| Series | S8VK-X |
| Output Current | 3.75A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264, 350V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24.1V dc |
| Minimum Input Voltage | 85, 90V ac |
Key Features
- Compact and space-saving design suitable for side-by-side mounting up to 55°C.
- Compatible with EtherNet/IP and Modbus TCP for centralized monitoring over Ethernet.
- High efficiency of 87% with no cooling fan required, ensuring quiet operation.
- Wide operating temperature range from -40°C to 70°C for harsh environments.
- Overload protection automatically lowers output voltage on overcurrent situations.
- Durable construction with vibration resistance (10Hz to 55Hz) and shock resistance (150 m/s²).
- Coated printed circuit boards resist humidity and gas exposure for enhanced reliability.
- IP20 rated protection against solid objects, ideal for industrial installations.
Product Description
Omron S8VK-X09024-EIP is a high-quality, switched mode DIN rail mounted power supply delivering a rated output power of 90 W with 24.1V dc voltage and 3.75 A output current.
Designed to be compact and space-saving, this power supply allows installation beside other units up to an ambient temperature of 55°C without performance degradation. The unit supports communication protocols such as EtherNet/IP and Modbus TCP, enabling centralized monitoring through a connected PC via Ethernet.
The power supply features an efficiency rating of 87%, operating without a cooling fan, which ensures silent operation and decreases maintenance requirements. Its robust construction includes coated PCBs resistant to humidity and gases, providing long-term durability in industrial environments. It also offers vibration resistance across 10 Hz to 55 Hz and shock resistance at 150 m/s², capable of withstanding challenging conditions.
Safety features include overload protection which reduces output voltage when load current exceeds 101% to 110%, protecting against short circuits and excess currents. The unit operates within -40°C to 70°C temperature range and is IP20 rated, making it suitable for indoor industrial applications.
This product complies with multiple certifications and standards such as UL, TUV, EN IEC 61558-2-16, CE, cULus, EAC, EN 61000-3-2, EN 61204-3, and EN IEC 60529, assuring reliability and safety.
Typical applications of this DIN rail power supply include industrial automation, factory machinery, HVAC systems, control panels, and other environments requiring reliable DC power conversion and monitoring capabilities.
Compact and space-saving design suitable for side-by-side mounting up to 55°C. Compatible with EtherNet/IP and Modbus TCP for centralized monitoring over Ethernet. High efficiency of 87% with no cooling fan required, ensuring quiet operation.
Wide operating temperature range from -40°C to 70°C for harsh environments. Overload protection automatically lowers output voltage on overcurrent situations. Durable construction with vibration resistance (10Hz to 55Hz) and shock resistance (150 m/s²).
Coated printed circuit boards resist humidity and gas exposure for enhanced reliability. IP20 rated protection against solid objects, ideal for industrial installations. Complies with international standards including UL, TUV, CE, cULus, and EAC.
Explore more industrial power supplies and Omron products at EnvMart to meet your power conversion and control system requirements.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The efficiency rating is 87%, allowing for silent operation without a cooling fan.
The maximum output voltage is 24.1V dc.
It operates within a wide temperature range of -40°C to 70°C.
This model has one output.
The dimensions are 90mm in height, 55mm in width, and 92mm in depth.
It is compatible with EtherNet/IP and Modbus TCP for centralized monitoring.
The power supply has an IP20 rating, providing protection against solid objects.
Typical applications include industrial automation, factory machinery, and control panels.
It operates on a single electrical phase.
The country of origin for this power supply is India.
