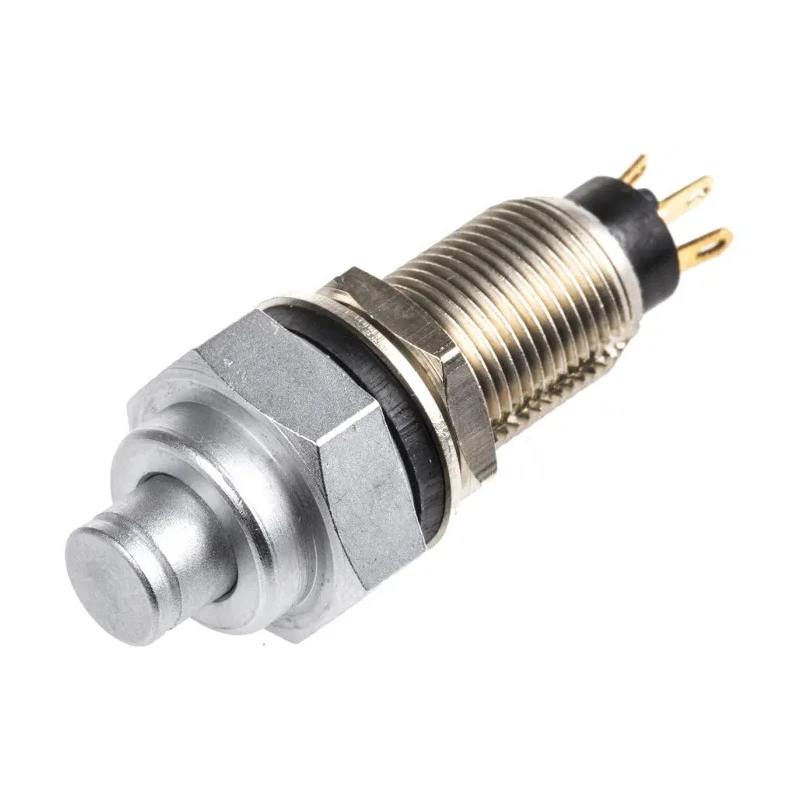

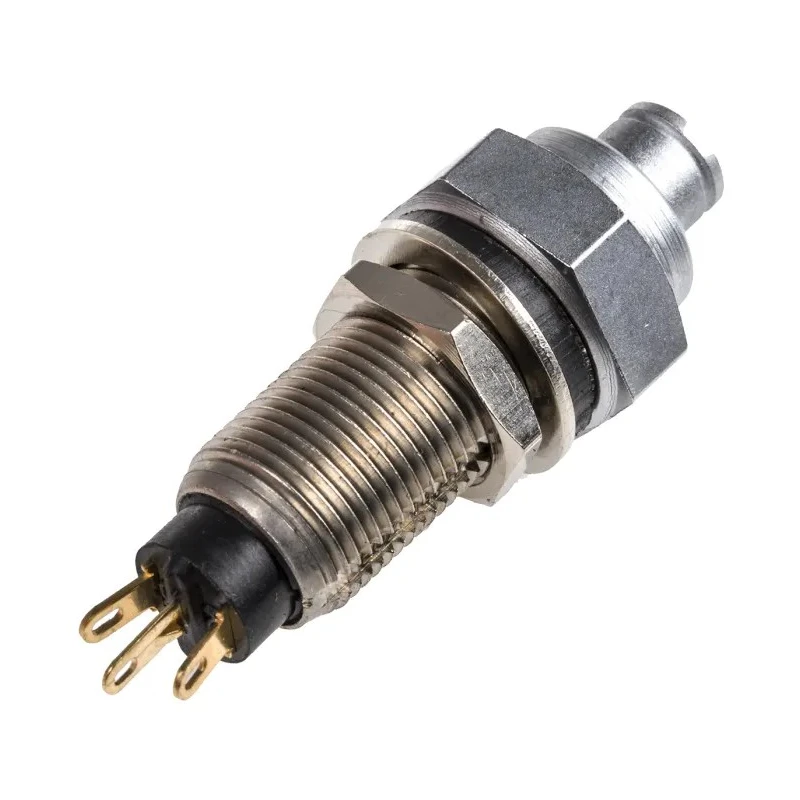

EOZ DJET Series Momentary Push Button Switch, Panel Mount, 10 mm Cutout, SPST, IP67, 110 V AC 17.17252.22



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	Switzerland
Brand	EOZ
IP Rating	IP67
Mount Type	Panel
Series	DJET
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	CO
Minimum Operating Temperature	-40°C
Panel Cutout Size	10 mm
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Silver
Actuator Style	Round
Switch Contact Current	2.5A
Contact AC Voltage	110V ac

Key Features

The switch provides a momentary operating function making electrical contact only while pressed.
IP67 front sealing ensures total protection against dust and temporary immersion in liquids.
Gold contact material enhances corrosion resistance and reliability.
Compact 10 mm diameter mounting cutout suitable for various control panels.
Capable of handling a contact current of 2.5 A AC at 110 V AC.
Wide operating temperature range from -40°C to 85°C supports harsh environments.
Panel-mounted with a fixing nut for secure installation.
Non-illuminated actuator in a silver finish for clear visibility and durability.

Product Description

The EOZ 17.17252.22 DJET Series momentary push button switch is engineered for precision and reliability in electrical and automation systems. Designed for panel mounting through a 10 mm diameter cutout, it offers a silver round actuator and a single pole single throw (SPST) switch configuration operated by momentary action.

This switch features a gold contact material that provides excellent corrosion resistance, offering dependable performance even under demanding industrial conditions. The IP67 front sealing ensures the device is completely protected against dust ingress and can withstand temporary immersion in liquids from 15 cm to 1 m depth for up to 30 minutes, making it ideal for outdoor and harsh environmental applications.

With a contact AC voltage rating of 110 V AC and a contact current capacity of 2.5 A, this switch is suitable for controlling one circuit with precise on-off control. Its operating temperature range from -40°C to 85°C supports use in a wide variety of industrial, military, telecommunications, aviation, medical equipment, power supply, and other automation contexts.

The switch is mounted conveniently by pushing it through the front panel cutout and securing it with a fixing nut, ensuring a reliable and stable installation. The non-illuminated silver actuator style offers a clear, durable interface for operator control. Additionally, compliance with RoHS directives guarantees product safety and environmental responsibility.

The switch offers momentary operation, activating only while pressed. IP67 rating ensures full dust protection and liquid resistance. Gold contacts improve durability and corrosion resistance. Compact 10 mm cutout fits diverse panel configurations.

Contact current rated at 2.5 A for reliable circuit control. Wide temperature range from -40°C to 85°C for harsh environments. Single pole single throw (SPST) configuration simplifies wiring. Panel mounting with fixing nut provides secure installation.

RoHS certified meeting environmental safety standards.

This push button switch is ideal for applications in industrial automation, telecommunications, military and aviation equipment, medical devices, and power supply systems. Its robust design and high ingress protection rating make it suitable for both indoor and outdoor environments.
