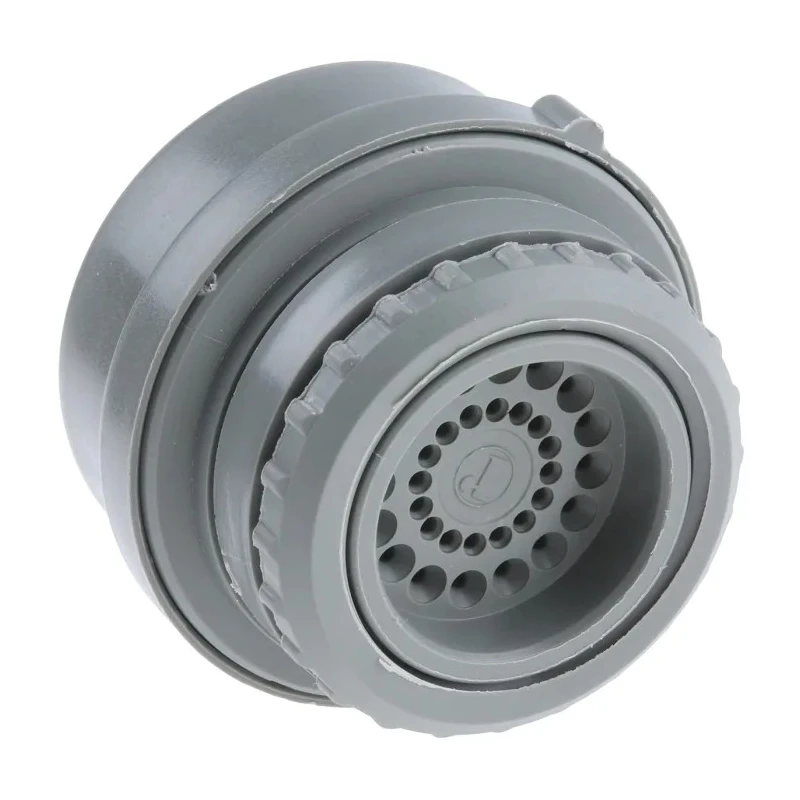

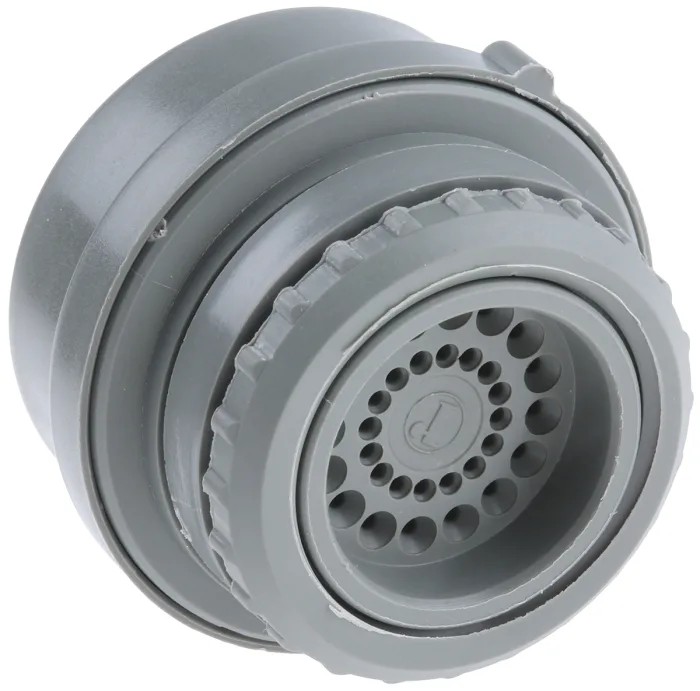

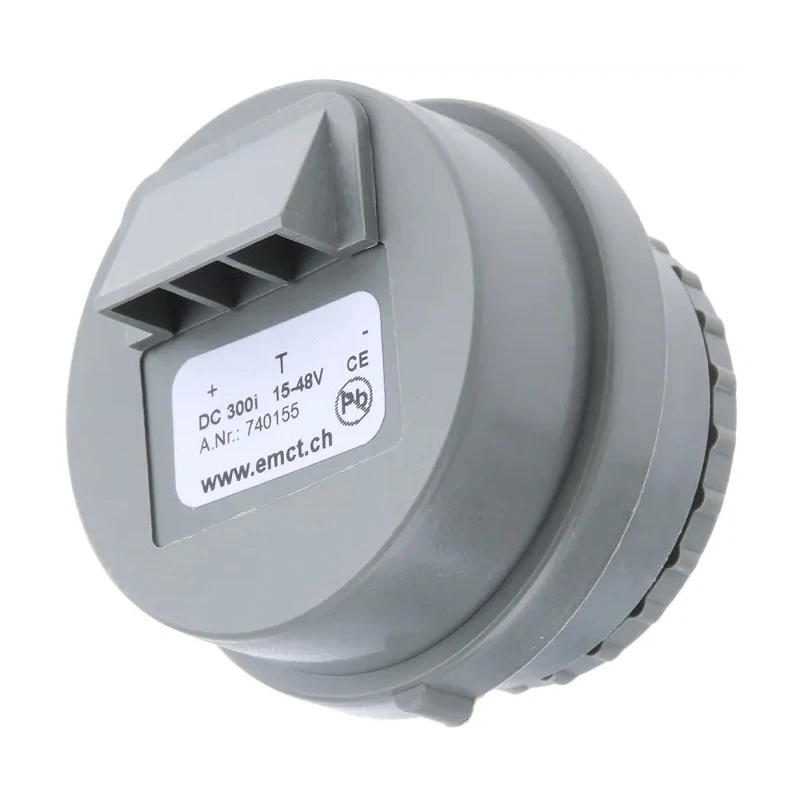

EMCT 95 dB Panel Continuous or Intermittent Internal 28.5 mm Piezo Buzzer Component 1.5 V Min 48V dc Max DC300I15-48V

EMCT DC300I15-48V Piezo Buzzer Component is engineered for panel mounting applications where a loud, dependable sound signaling device is required. This buzzer provides a continuous or intermittent tone with a high sound level of 95 dB, making it ideal for industrial, electronic, and safety systems.

Its compact diameter of 25.5 mm and height of 28.5 mm allow easy integration into panels with mounting holes. The device operates efficiently between a minimum supply voltage of 1.5 V and a maximum of 48 V dc, drawing only 15 mA of current courtesy of its internal drive type circuitry.

The buzzer termination employs a fast-on contact tab measuring 2.8 x 0.5 mm for secure and convenient connections. It is capable of producing a frequency range from 2700 Hz to 3100 Hz with reliable operation in ambient temperatures from -30°C to 75°C, suitable for varied environmental conditions.

Manufactured in Switzerland, this component ensures premium quality and long-lasting performance for electronic, industrial control, HVAC, and security alarm systems. This buzzer operates with a minimum supply voltage of 1.5 V and maximum 48 V dc.

It features an internal drive type and fast-on contact tab termination style for quick installation. The buzzer has a diameter of 25.5 mm and height of 28.5 mm, suitable for panel hole mounting. It produces a sound frequency ranging from 2700 Hz to 3100 Hz.

Designed to operate reliably within temperature extremes from -30°C to 75°C. It draws a supply current of 15 mA for efficient energy use. Manufactured in Switzerland ensuring high-quality standards.

This EMCT Piezo Buzzer Component is ideal for applications in electronic and electrical industrial systems requiring reliable audible signals. Explore more in the Electronics Components category at EnvMart for compatible devices and accessories.
