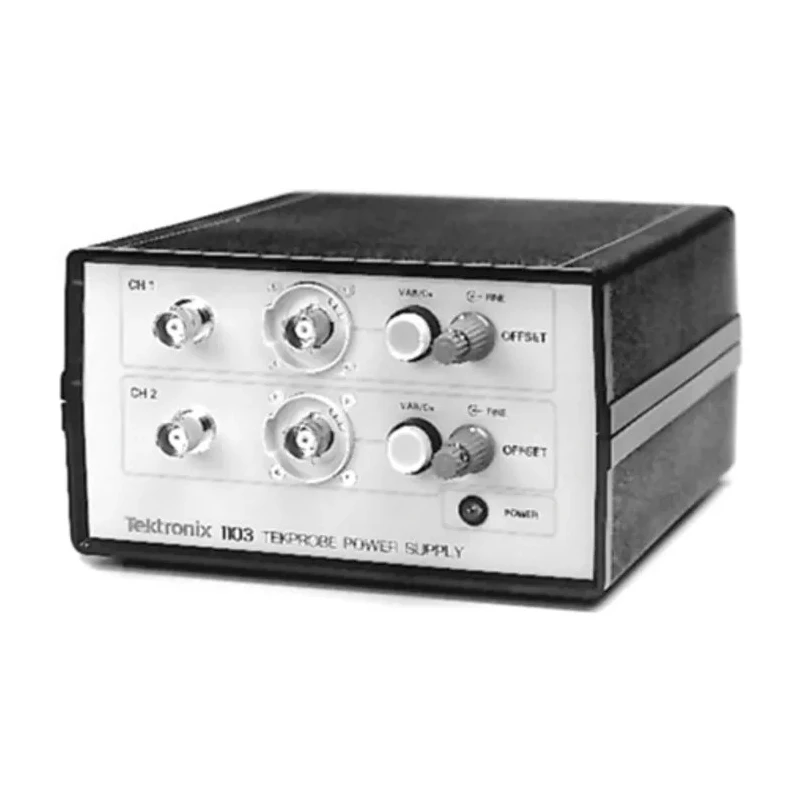

Tektronix Oscilloscope Battery Power Supply for TCP202 and Various Probes 1103
Specifications
| Country of Origin | China |
|---|---|
| Output | pin1 NC, pin2 NC, pin3 +5V, pin4 +15V, pin5 offset +/-1V, pin6 -5V, pin7 -15V |
| Brand | Tektronix |
| Model | 1103 |
| Accessory Type | Power Supply |
| For Use With | TCP202 on other than TekProbe BNC Interfaced Scopes, P6703B, P6701B, P6330, P6249, P6248, P6247, P6246, P6245, P6243, P6205, P5210, P5205, ADA400A |
| Standards/Approvals | ISO 9001, CE |
Key Features
- Compatible with TCP202 and various Tektronix probes requiring external power.
- Consumes less than 35 watts for efficient power use.
- Features two independently controlled output channels with voltage offset control.
- Includes output voltages of +5V, +15V, -5V, and -15V with ±1V offset adjustment.
- Provides short circuit protection for safe operation.
- Ideal for high-speed digital system design and component characterization.
- Supports educational research and manufacturing engineering testing applications.
- Certified to ISO 9001 and CE standards for quality and safety.
Product Description
Tektronix 1103 oscilloscope battery power supply is designed to provide external power to TekProbe BNC interface probes, enabling their use with oscilloscopes or digitizers that do not supply TekProbe BNC power. It is specifically compatible with probes including TCP202, P6205, P6243, P6245, P6246, P6247, P6248, P6249, P6330, P6701B, P6703B, P5205, P5210, and ADA400A.
The power supply consumes less than 35 watts, efficiently powering up to two probes simultaneously. Each of the two independently controlled channels features a TekProbe BNC interface input, voltage offset control, and BNC signal output, ensuring precise and reliable operation. Output pins provide voltages of +5V, +15V, -5V, and -15V with an offset adjustment of ±1V. The device includes short circuit protection to safeguard connected instruments.
This Power Supply is suitable for applications in high-speed digital system design such as ECL, GaAs, MOS, CMOS, FastCMOS, BiCMOS, and TTL technologies. It also supports component design and characterization tasks involving amplitude levels, aberrations, propagation delay, timing, bandwidths, and rise times. Educational research and manufacturing engineering testing are additional practical use cases.
The product is certified with ISO 9001 standards and carries CE certification, confirming compliance with international quality and safety regulations. This makes the Tektronix 1103 an ideal accessory for laboratory, industrial, academic, and manufacturing environments.
Compatible with multiple Tektronix probes and TCP202 on non-TekProbe BNC interfaced scopes. Low power consumption under 35 watts for energy-efficient operation. Two independent output channels with voltage offset control and BNC signal output.
Output voltages of +5V, +15V, -5V, and -15V with ±1V offset adjustment. Short circuit protection enhances device and instrument safety. Suited for high-speed digital system design and component characterization. Useful for educational research and manufacturing engineering testing.
ISO 9001 and CE certified for quality assurance and safety compliance. Explore Tektronix power supplies and accessories in the Electronics & Electricals category at EnvMart for reliable, high-quality instrumentation support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix 1103 power supply consumes less than 35 watts, ensuring efficient power usage while operating.
This model is compatible with several Tektronix probes including TCP202, P6205, P6243, P6245, P6246, P6247, P6248, P6249, P6330, P6701B, P6703B, P5205, P5210, and ADA400A.
It provides output voltages of +5V, +15V, -5V, and -15V, with an offset adjustment of ±1V.
The Tektronix 1103 features two independently controlled output channels, allowing for simultaneous operation of two probes.
It includes short circuit protection to enhance the safety of connected instruments during operation.
This power supply is certified to ISO 9001 and carries CE certification, ensuring compliance with international quality and safety regulations.
It is suitable for high-speed digital system design, component characterization, educational research, and manufacturing engineering testing applications.
The power supply uses a TekProbe BNC interface input for connecting to compatible probes, along with BNC signal output.
The Tektronix 1103 power supply is manufactured in China.
The voltage offset control allows for precise adjustment of the output voltage levels, enhancing the accuracy of measurements.
The Tektronix 1103 is categorized as a power supply accessory.
