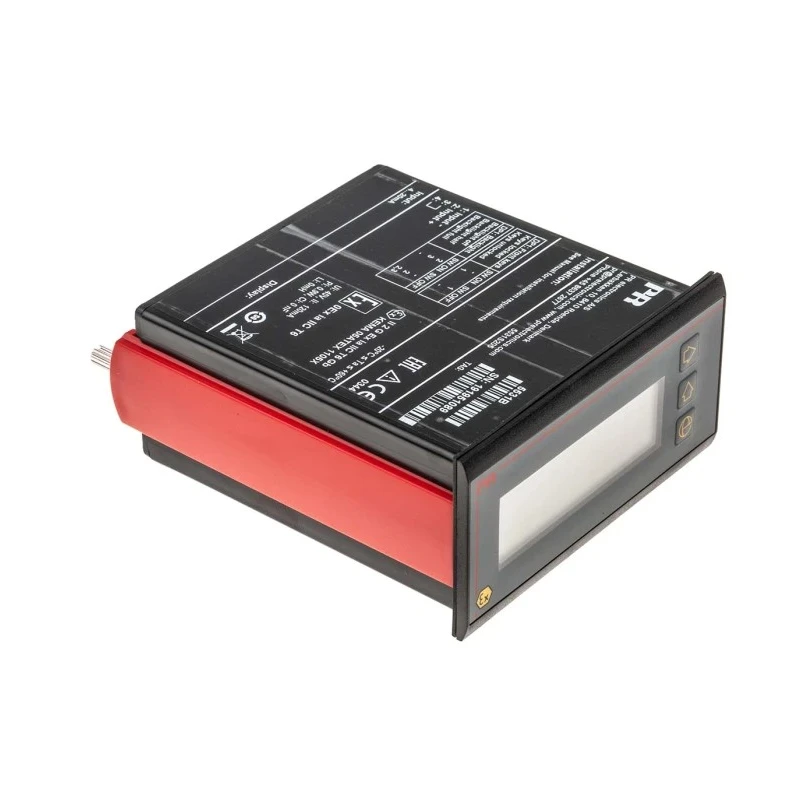

PR Electronics 5500 LCD Digital Panel Multifunction Meter for Current, Loop Powered, 44.5mm x 91.5mm 5531B

PR Electronics 5531B is a high-precision LCD Digital Panel Multifunction Meter specifically engineered for current measurement. It is part of the 5500 Series, known for loop-powered LCD indicators that ensure simple yet effective process value monitoring in demanding industrial environments.

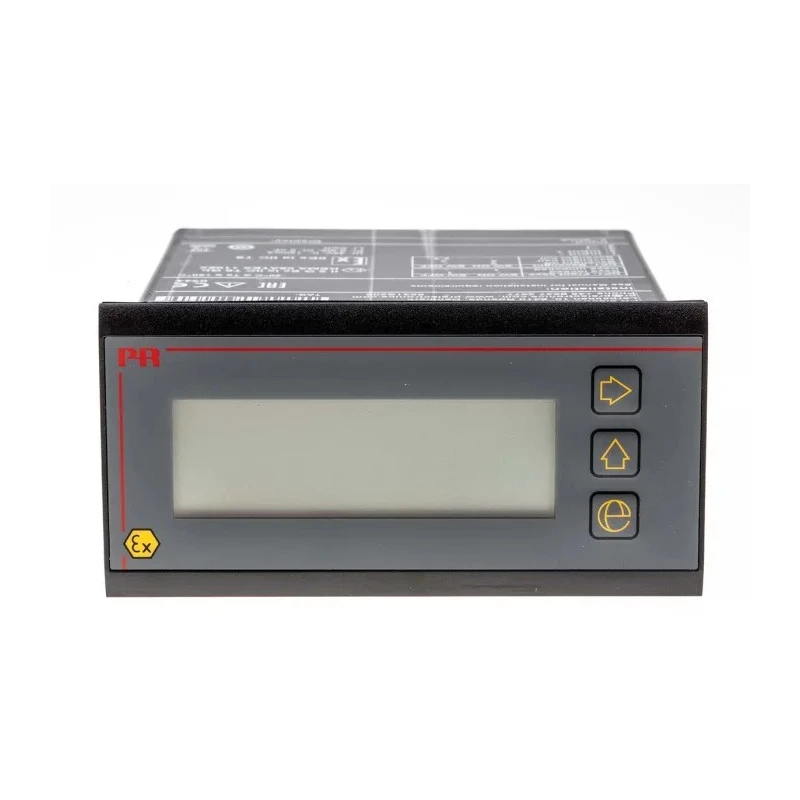

The meter features a 4-digit LCD display with a digit height of 16 mm, housed in a compact cutout sized 44.5 mm by 91.5 mm, perfectly suited for panel mounting. Powered by the 4 to 20 mA current loop, the device eliminates the need for separate power supplies, enabling streamlined integration into existing automation systems.

Easily scalable from -9999 to 9999, this multifunction meter allows customization of displayed values to suit specific process requirements. The LCD backlight intensity can be set to half or full brightness to enhance readability in low light conditions. Front panel push-buttons facilitate straightforward programming while also providing the option to lock controls for unauthorized adjustment prevention.

The device complies with stringent safety standards including DEMKO 02ATEX132122 and certification EX II 1 G and EEx ia IIC T6, making it suitable for hazardous locations including Ex Zone 0, thereby expanding its industrial applicability to chemical plants, oil refineries, and other environments requiring explosion-proof equipment.

Its operating temperature range from -20°C to 60°C ensures reliable performance in diverse climatic conditions. The compact depth of 120 mm further optimizes space utilization within control panels.

Industrial applications include process control, measurement in automation systems, and environments demanding certified hazardous area equipment. The 5531B model supports critical industrial demands for accuracy, safety, and durability.

This product is manufactured in Denmark, reflecting high quality and engineering standards. The 4-digit LCD display provides clear process measurement visualization. Loop-powered by 4 to 20 mA current loop for ease of installation.

Scalable display range from -9999 to 9999 for flexibility. Adjustable LCD backlight for enhanced visibility under various lighting conditions. Push-button configuration with disable option to prevent unauthorized use. Certified for hazardous area Zone 0 applications.

Durable operation in temperatures from -20°C to 60°C. Compact panel mounting depth of 120 mm. Explore more products in Multi-Function Panel Meters category on EnvMart for diverse industrial automation needs.
