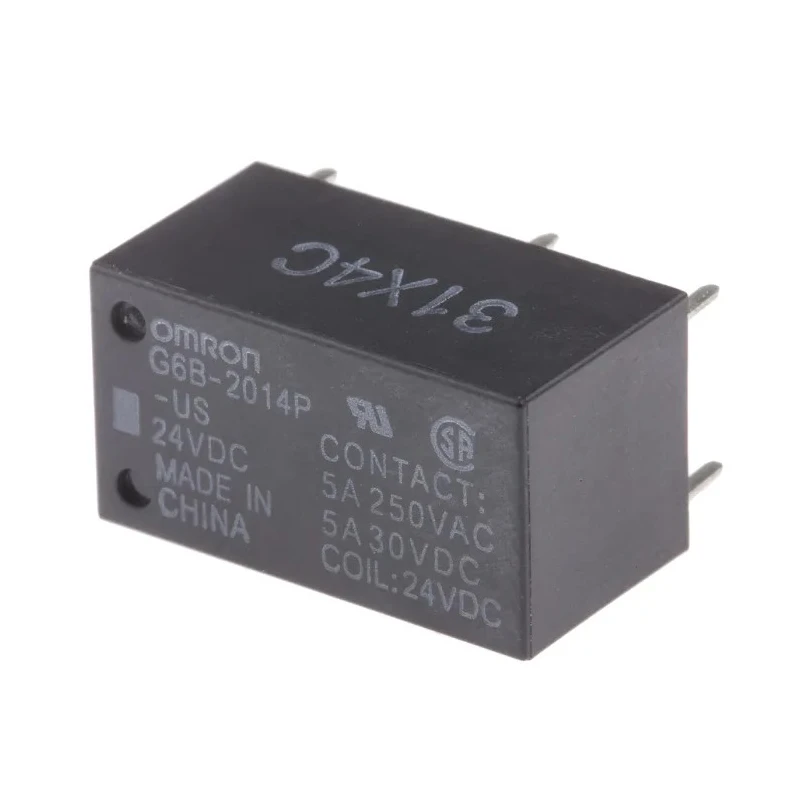

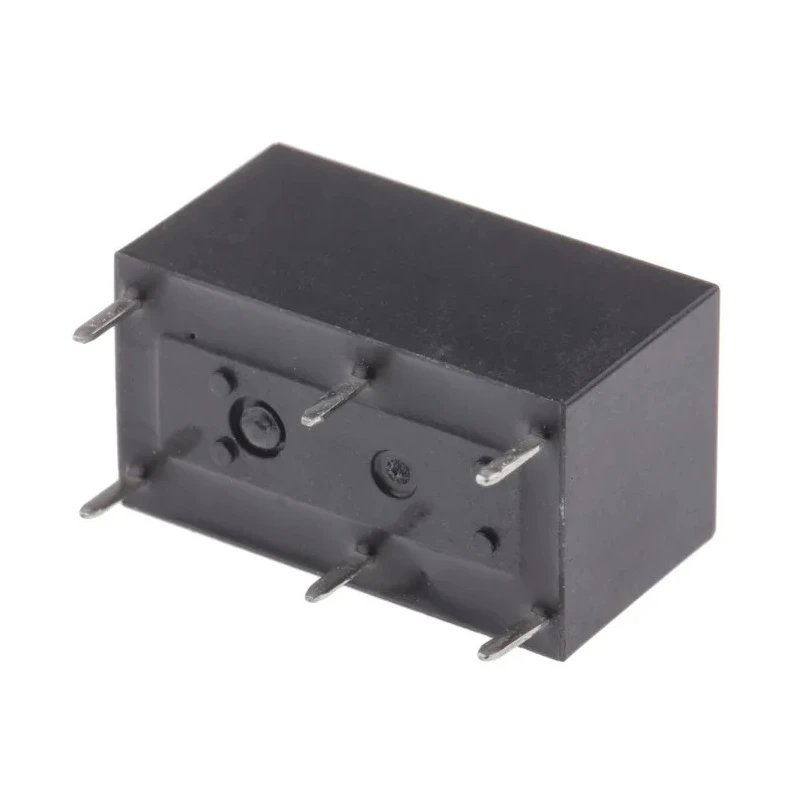

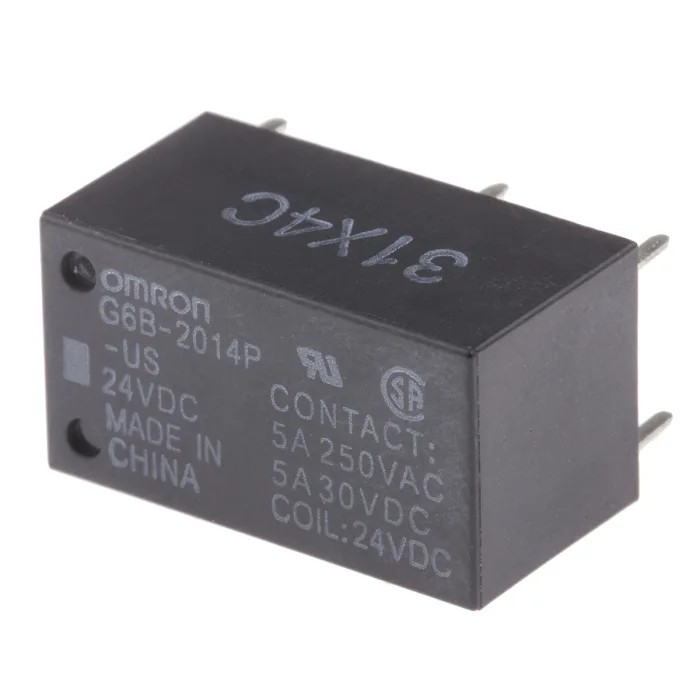

Omron PCB Power Relay 24V DC Coil 5A Switching Current DPST G6B-2014P-US DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20mm |
| Model | G6B-2014P-US DC24 |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Switching Power | 300mW |
| Subminiature | 20x10x10mm |
Key Features
- The relay features a subminiature design measuring 20x10x10mm.
- Consumes low power of 200 mW for efficient operation.
- Supports switching AC voltage up to 380V and DC voltage up to 125V.
- Robust construction with silver alloy contacts ensuring reliable conductivity.
- Operating temperature range from -25°C to 70°C suitable for various environments.
- Designed for PCB mounting with solder terminal types for secure installation.
- UL recognized and CSA certified for quality and safety compliance.
- Contact resistance of 30mΩ minimizes power loss during switching.
Product Description
Omron G6B-2014P-US DC24 PCB Power Relay is a compact, low power consumption relay designed for reliable control applications. Featuring a 24V DC coil voltage and a DPST (Double Pole Single Throw) contact configuration, this power relay efficiently switches currents up to 5A with high precision.
This subminiature relay has dimensions approximately 20x10x10mm enabling space-saving circuit designs on PCBs. It consumes only 200 milliwatts of coil power, making it energy efficient for continuous operation.
The relay supports switching AC voltages up to 380V and DC voltages up to 125V, making it versatile for various electrical loads. The contacts are made of high-quality silver alloy, reducing contact resistance to just 30 milliohms and ensuring long-term durability and reliable conductivity.
Operating temperature range from -25°C up to 70°C allows usage in demanding industrial environments. The relay is designed for PCB mounting with solder terminals facilitating secure and robust installation.
This device is UL recognized and CSA certified, meeting international quality and safety standards. The relay is fully sealed, providing excellent protection against environmental contaminants and has a dielectric strength capable of withstanding impulse voltages of up to 6kV.
The G6B series features a unique moving loop armature to reduce size, magnetic interference, and contact bounce time. Its compact form factor aids in optimizing control equipment design. Typical applications include industrial automation systems, control panels, and output switching circuits.
The relay ensures efficiency, safety, and reliability across various control and signal conditioning uses. Manufactured in China, this relay is a trusted solution within Omron's range of Power Relays, widely adopted in industrial, laboratory, and automation sectors.
Explore more options within our Electronics & Electricals category, including specialized relays and contactors for diverse applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch currents up to 5A, making it suitable for various control applications.
The relay has dimensions of approximately 20mm in length, 10mm in width, and 11mm in height, allowing for space-saving designs on PCBs.
It operates with a coil voltage of 24V DC, which is essential for its functionality in control circuits.
The relay supports switching AC voltages up to 380V and DC voltages up to 125V, providing versatility for different electrical loads.
This model is designed for PCB mounting and features solder terminals for secure installation.
It features a DPST (Double Pole Single Throw) contact configuration, suitable for various control applications.
The contact resistance is 30 milliohms, which helps minimize power loss during switching operations.
The relay operates effectively within a temperature range of -25°C to 70°C, making it suitable for various environments.
The contacts are made of high-quality silver alloy, ensuring reliable conductivity and durability.
It is UL recognized and CSA certified, meeting international quality and safety standards.
The relay has a coil power consumption of 200 milliwatts, which contributes to its energy efficiency.
Typical applications include industrial automation systems, control panels, and output switching circuits, making it versatile for various control needs.
