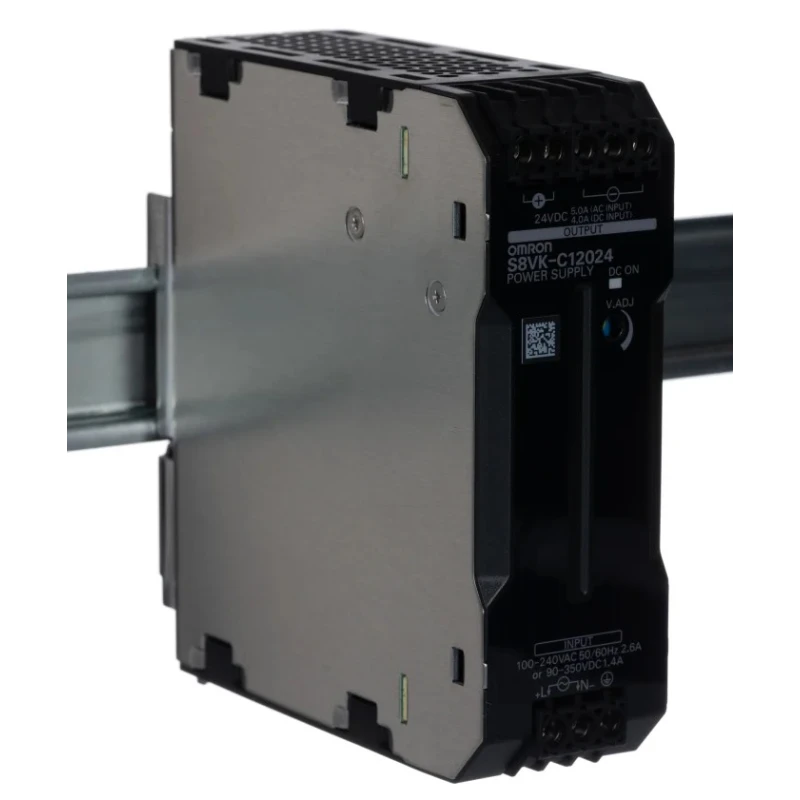

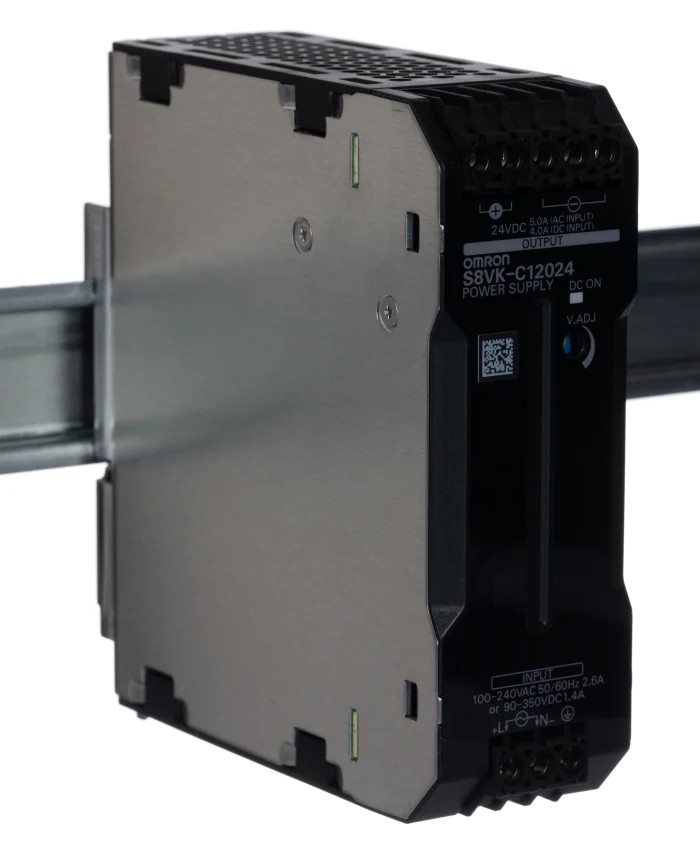

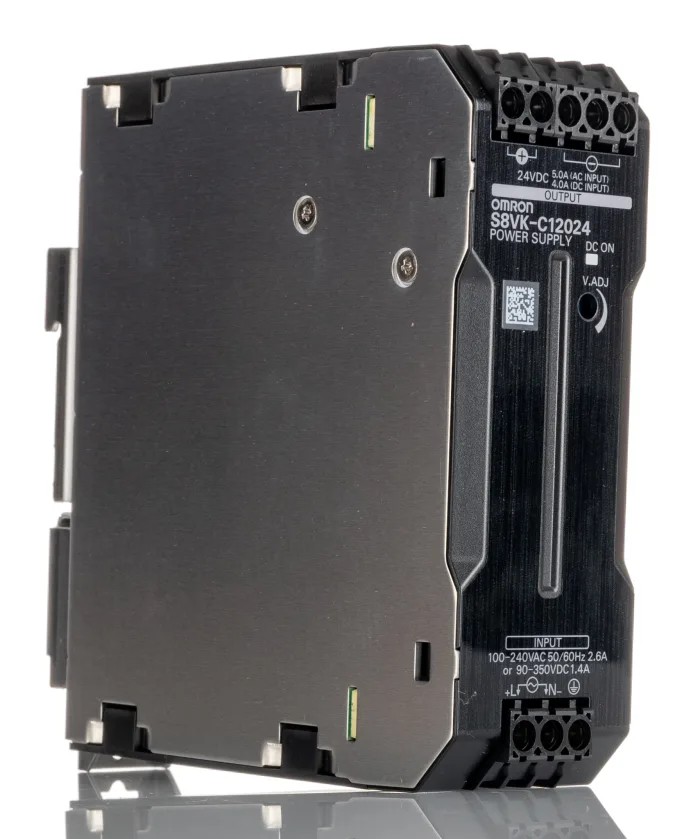

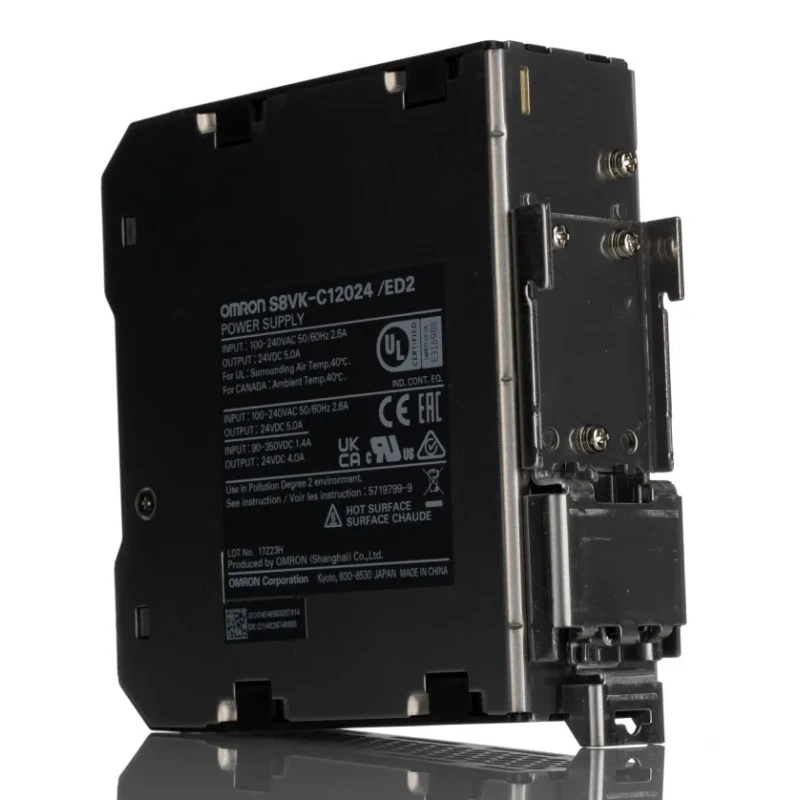

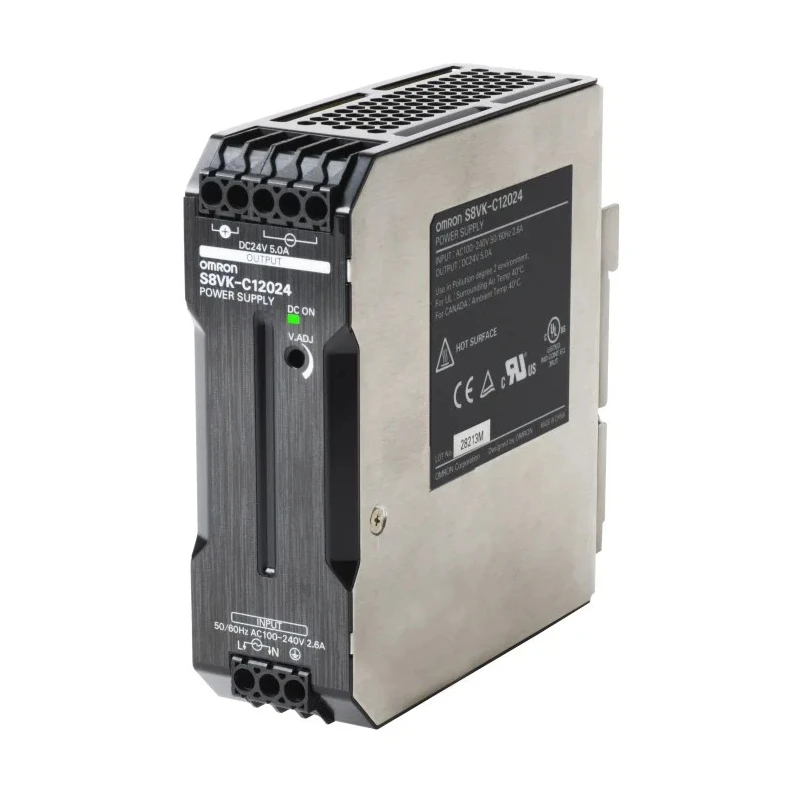

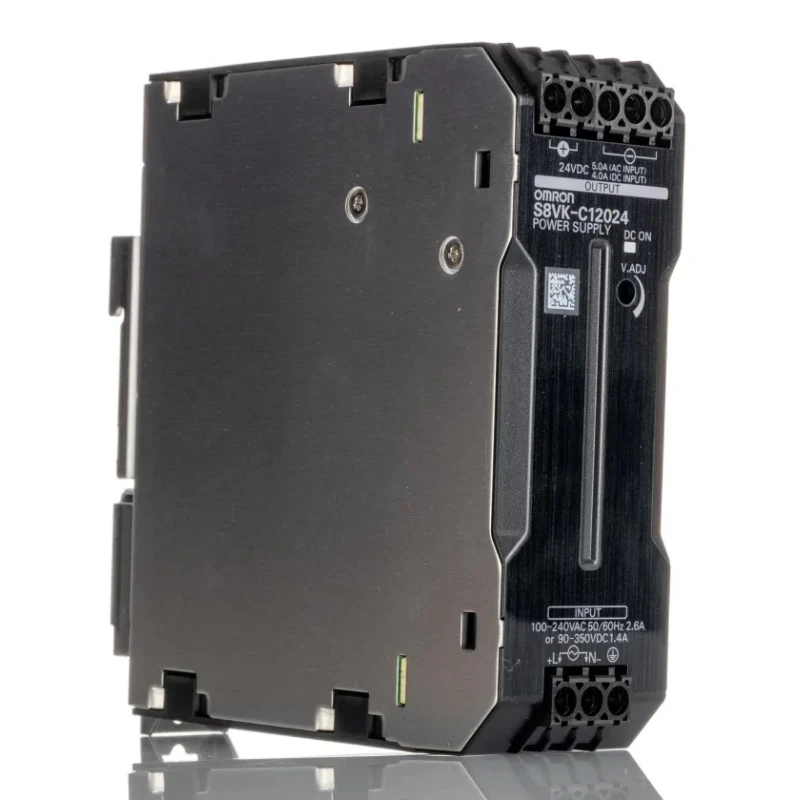

Omron S8VK-C Switched Mode DIN Rail Power Supply 1 Phase AC/DC Input 100-350V 24V DC Output 5A 120W

Free Delivery in India | Lowest Global Shipping Charges

Omron S8VK-C Switched Mode DIN Rail Power Supply 1 Phase AC/DC Input 100-350V 24V DC Output 5A 120W

Name: Omron S8VK-C Switched Mode DIN Rail Power Supply 1 Phase AC/DC Input 100-350V 24V DC Output 5A 120W
Brand: Omron
SKU: 235508
Price: 20.22 USD
Availability: InStock



Category DIN Rail Power Supplies Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Power	120W
Efficiency	88%
Height	125mm
Model	S8VK-C
Depth	122mm
IP Rating	IP20
Width	40mm
Series	S8VK-C
Output Current	5A
Maximum Operating Temperature	60°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	350, 240V dc
Electrical Phase	1
Standards/Approvals	CE
Maximum Output Voltage	24V dc
Minimum Input Voltage	100V ac

Key Features

Wide input voltage range supports 85 to 264V AC and 90 to 350V DC for universal compatibility.
Highly efficient with 88% efficiency rating, reducing heat dissipation and increasing reliability.
Compact DIN rail mounting design with IP20 protection for safe industrial use.
Operating temperature range from -25°C to +60°C suitable for harsh environments.
Tight output voltage regulation with 0.5% line and 1.5% load regulation for stable performance.
Includes adjustable output voltage from 10% to 15% to fine-tune for different applications.
Compliance with CE standards and built to meet multiple international safety certifications.
Robust construction with a mean time between failures of approximately 490,000 hours for durability.

Product Description

Omron S8VK-C12024 is a switched mode DIN rail power supply designed for industrial control and automation systems. It accepts single-phase AC/DC input voltages ranging from 100V AC up to 350V DC, stepping down reliably to a stable 24V DC output at 5A, delivering 120W of continuous power.

The unit features a compact form factor (125mm height, 40mm width, and 122mm depth) optimized for space-saving DIN rail installations. It carries an IP20 rating ensuring basic protection against physical contact and ingress. Designed for durability, this power supply maintains operation within a wide temperature range of -25°C to +60°C, making it suitable for various harsh industrial environments.

With an efficiency rating of 88%, heat generation is minimized, eliminating the need for additional cooling mechanisms like fans or heatsinks. The output voltage can also be finely adjusted by 10 to 15%, allowing adaptation for specific application requirements, including battery charging or building automation systems.

This model is CE certified and meets several international standards such as UL508, UL60950-1, cUL, cUR, and EN/VDE approvals, ensuring reliability and safety in demanding applications. Its robust construction contributes to an impressive mean time between failures (MTBF) of 490,000 hours, emphasizing longevity.

Applications include production lines, building automation, HVAC systems, and other industrial control environments requiring stable DC power supply with high efficiency and reliability.

Wide AC/DC input voltage range for universal application. High efficiency at 88% saves energy and reduces heat. Compact DIN rail mount with IP20 protection rating. Stable 24V DC output at 5A and 120W power. Output voltage adjustable by 10-15% for flexibility.

Complies with CE and multiple safety standards. Operates in harsh temperature conditions from -25°C to +60°C. Robust design with long operational lifetime (MTBF 490,000 hours).
