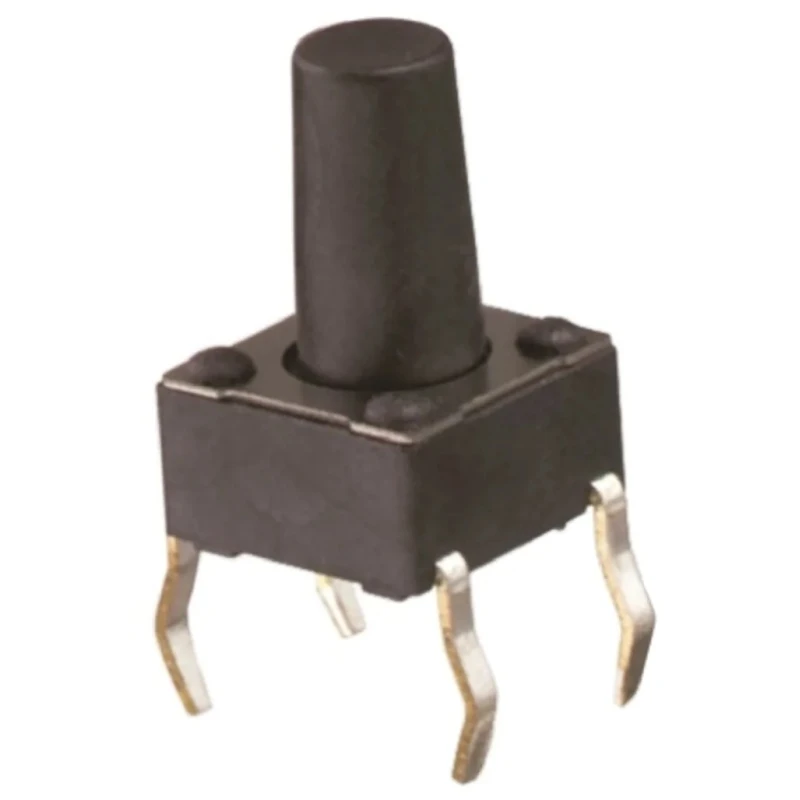

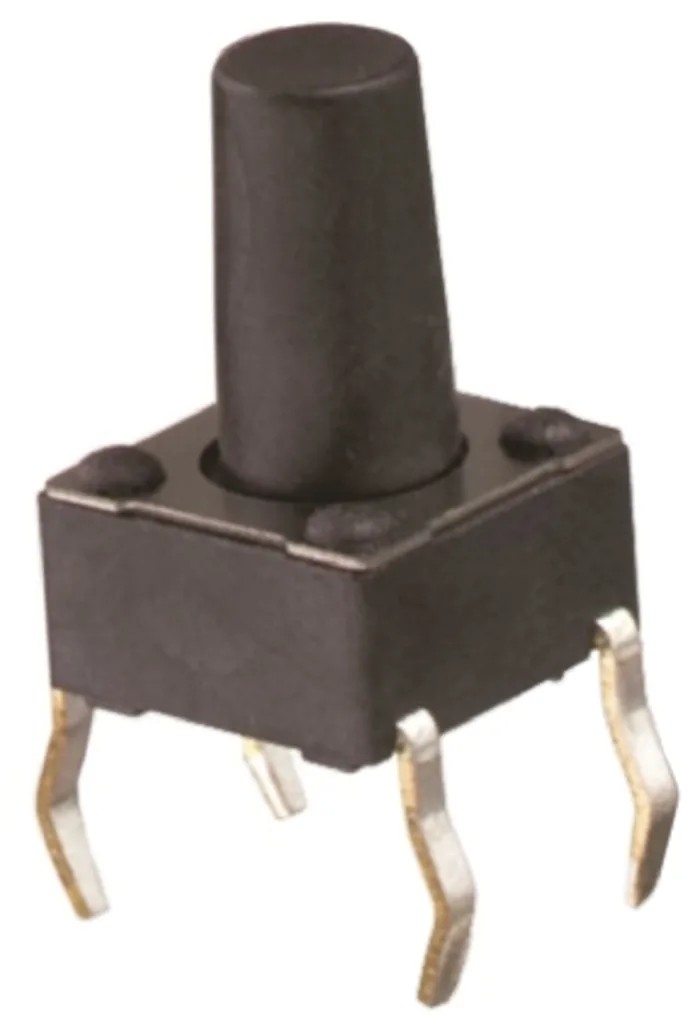

Wurth Elektronik Black Tactile Switch SPST 50mA 12V DC Through Hole 3.6mm Actuator WS-TST 430186070716

Wurth Elektronik 430186070716 Black Tactile Switch is a high-quality, through-hole SPST tactile switch designed for use in electronics, automation, and industrial applications. This switch features a black tactile actuator with a length of 3.6 mm and a compact footprint measuring 6.5 mm by 6.2 mm by 7 mm in height.

The switch has a contact configuration of SPST (single-pole single-throw) and supports a maximum switch contact current of 50 mA at 12 V DC, making it suitable for low-power control circuits. It operates with a momentary action, providing tactile feedback with an operating force of 1.57 N, enhancing user experience in keypad and interface designs.

Manufactured with stainless steel contacts with silver cladding, the switch ensures durable conductivity and corrosion resistance. The silver-plated through-hole brass terminals are optimized for wave soldering processes, tolerating temperatures up to 260°C for 10 seconds, facilitating robust PCB assembly.

The product withstands an operating temperature range from -40°C to 85°C, suitable for various environments including industrial, commercial electronics, and automotive applications. The actuator is oriented straight and the switch is non-illuminated, designed primarily for tactile feedback applications.

SPST single-pole single-throw contact configuration. Solder terminal type with through-hole mounting style. Momentary switch operation with tactile actuator style. Black actuator color with 3.6 mm actuator length. Compact size 6.5 mm length, 6.2 mm width, and 7 mm height.

Operating force 1.57 N and mechanical life of 1,000,000 cycles. Wave soldering capable at 260°C for 10 seconds max. Operating temperature range from -40°C to 85°C. Contact current rating of 50 mA at 12 V DC. RoHS compliant and manufactured in China.

This tactile switch is ideal for use in keyboards, control panels, electronic instruments, and embedded system interfaces that require reliable, tactile input mechanisms. Its durable construction and precise operating characteristics make it suitable for industrial automation and electrical control systems.

Explore the full range of Wurth Elektronik Tactile Switches and enhance your electronic designs with quality and performance guaranteed by compliant industry standards at EnvMart.
