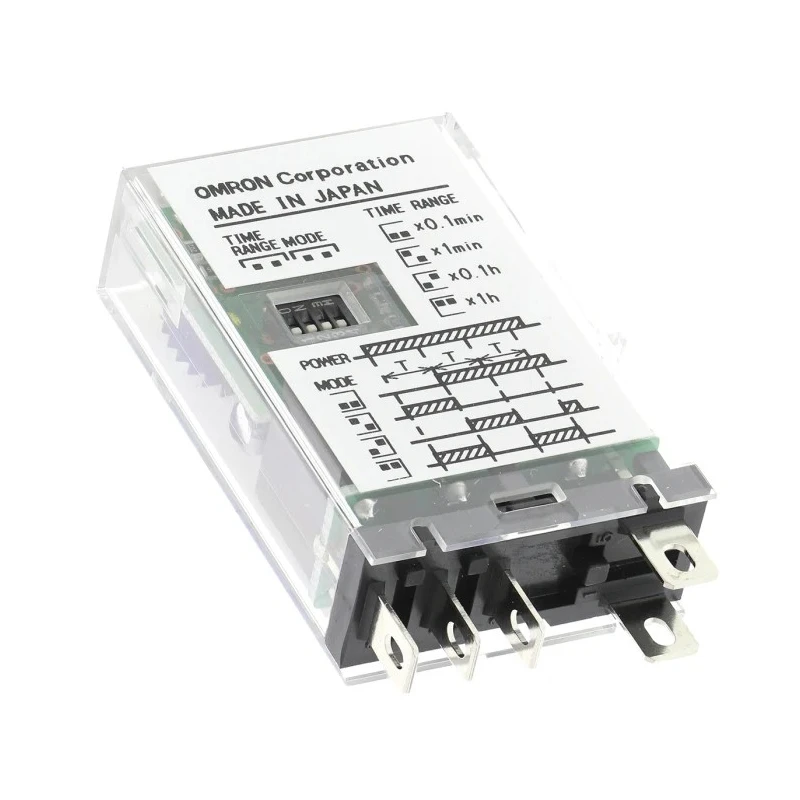

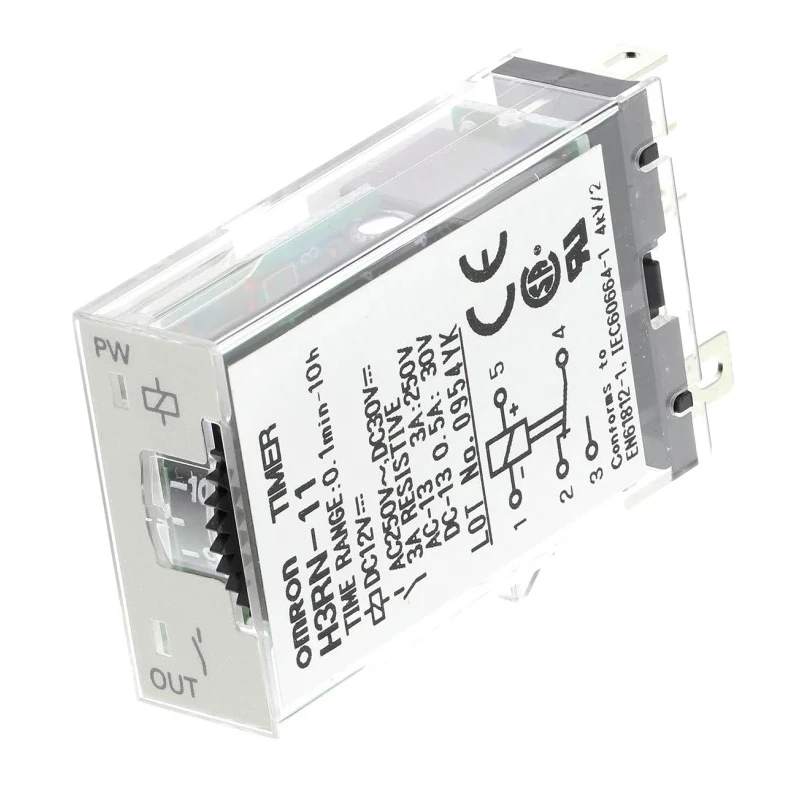

Omron Multifunction Panel Timer Relay 1-Contact SPDT Switch, 12 V DC/AC, 0 to 60 min Time Range H3RN

The Omron H3RN series multifunction panel timer relay is engineered for precise timing control in electrical and automation applications. Incorporating a single-pole double-throw (SPDT) switch with one contact, this relay supports both 12 V DC and 12 V AC supply voltages, making it versatile for a broad range of control circuits.

Its time range from zero to 60 minutes can be finely adjusted with an accuracy of ±1% FS, suitable for critical timing operations. The relay offers multiple operating modes such as ON-delay, interval timing, and flicker ON/OFF start, providing enhanced flexibility for diverse applications. With a contact current rating of 3 amperes at 250 volts AC, it reliably switches loads within electrical control panels.

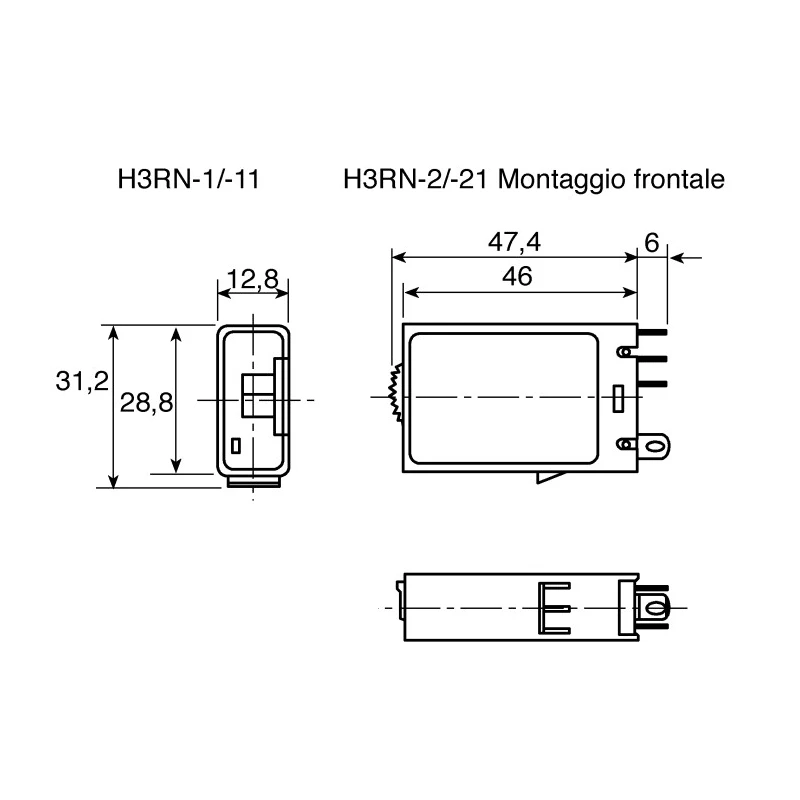

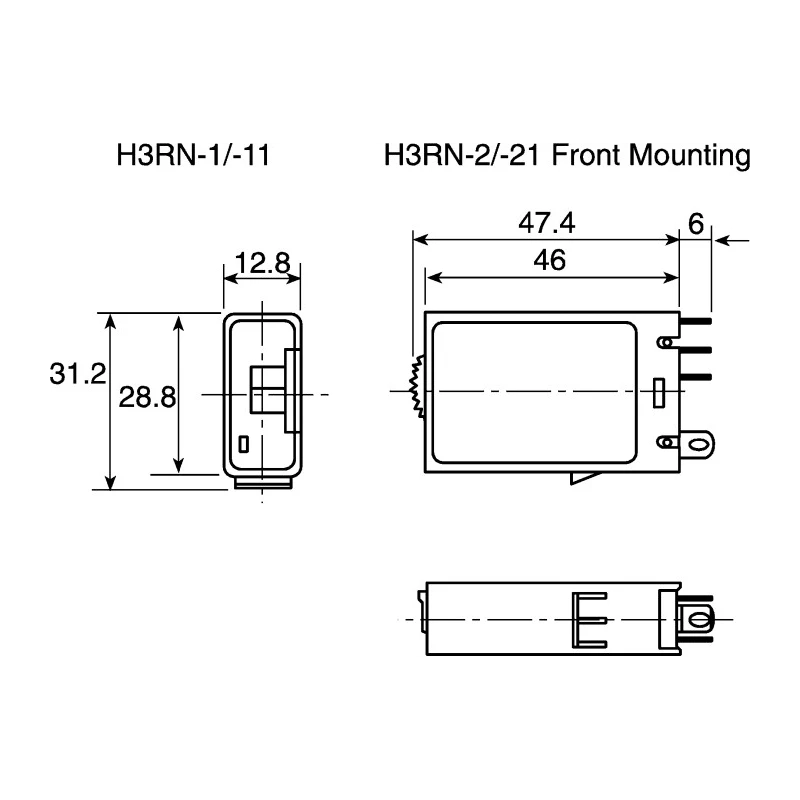

The unit is designed for panel mounting, featuring socket-type terminals and compact physical dimensions (width 12.8 mm, height 53.4 mm, and length 31.2 mm) for easy integration into limited spaces. Rated with an IP40 protection class, it performs reliably in indoor environments where protection against solid objects above 1 mm is required but without water protection.

Operating temperature range spans from -10°C to 55°C, ensuring stable performance under typical industrial conditions. The product meets UL recognition, CSA certification, and EN61812-1 standards, providing assured safety and international quality norms compliance.

Common applications include timing functions in automation systems requiring adjustable time delays with high precision and reliability. It is often paired with G2R relay sockets for efficient switching operations. Suitable for systems that benefit from flicker ON/OFF timing sequences and panel-mounted automation control tasks.

Compact design suitable for panel mounting installations. Multi-functional timer with flexible operating modes. High current capacity for reliable switching at 3A, 250V AC. Accurate timing control with ±1% FS accuracy and selectable time increments.

Robust construction with IP40 rating and compliance with UR, EN, and CSA standards. Wide operating temperature range from -10°C to 55°C. Socket terminal for simple mounting and replacement.
