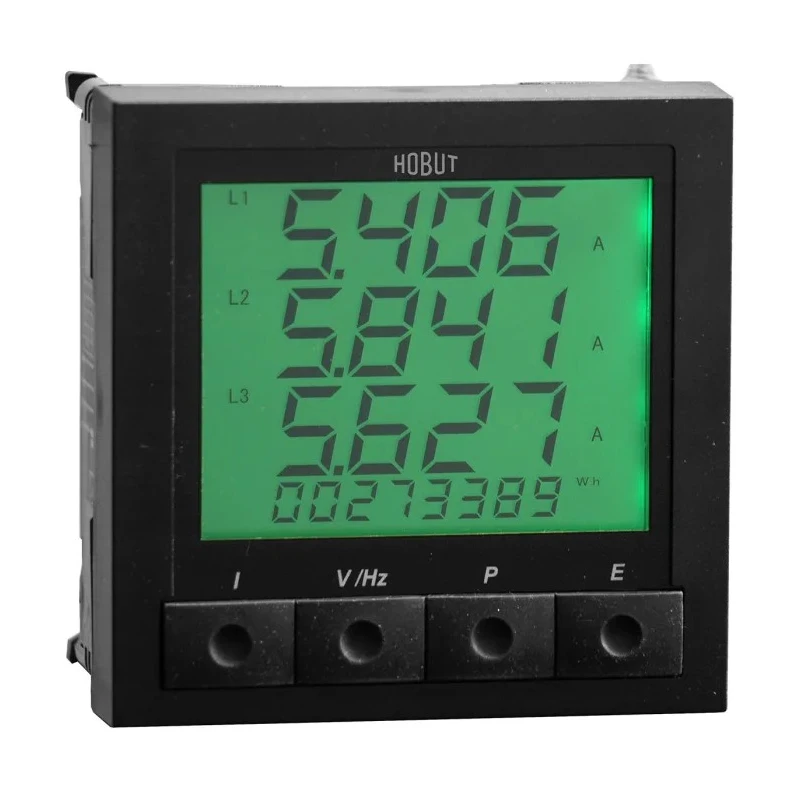

HOBUT Digital Panel Multifunction Meter for Voltage, Energy, Frequency, Power, Current, 96 mm x 96 mm M850-LCD

HOBUT M850-LCD Digital Panel Multifunction Meter is an advanced industrial-grade measuring instrument engineered for accurate monitoring of electrical parameters such as voltage, energy, frequency, power, and current. Equipped with a 96 mm by 96 mm LCD display featuring a selectable three-colour backlighting system, this multifunction meter is suitable for a wide range of applications in industrial automation and process control.

Its user-programmable CT and VT ratios allow easy configuration for any single-phase or three-phase electrical system without the need for reprogramming across different voltage levels. The device operates reliably within 0°C to 60°C ambient temperature, handling input voltages ranging between 28 V and 570 V, making it adaptable to low, medium, and high voltage environments.

The meter's compact design with an 82 mm depth and clear 14.2 mm digit height ensures it fits conveniently within control panels. Security code protection prevents unauthorized access to programming parameters, enhancing operational security.

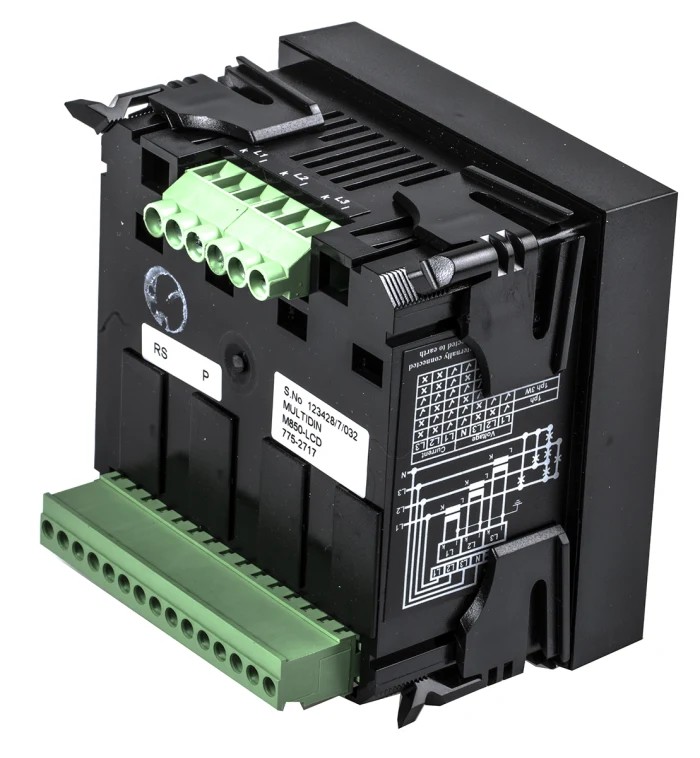

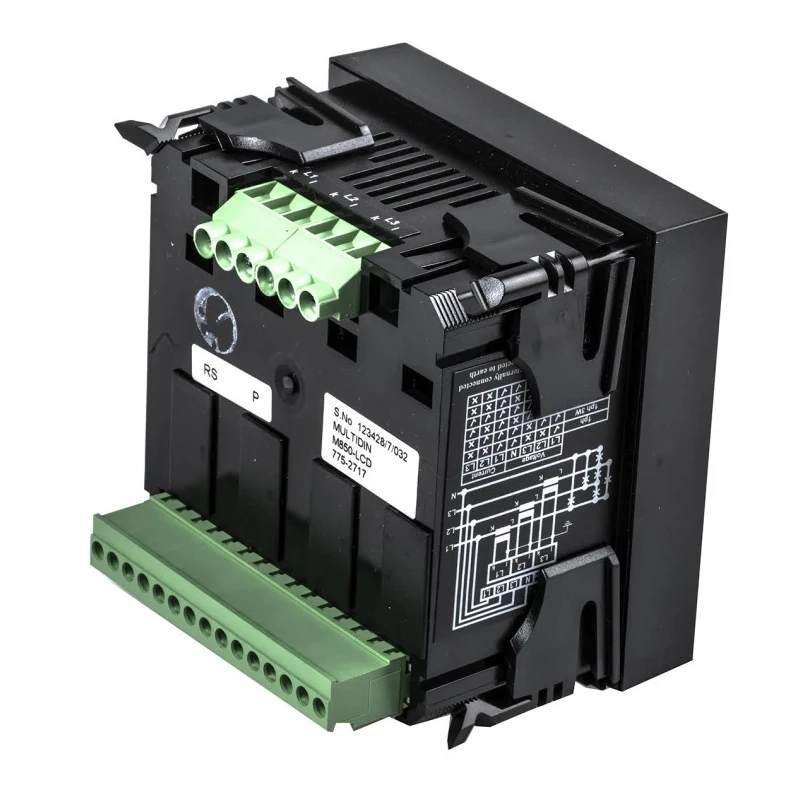

Optional plug-in modules, such as RS485 output with Modbus protocol and pulsed outputs for watt-hour or volt-ampere reactive hour measurements, extend the meter's functionality for integration in complex energy management systems.

This product is CE certified and meets rigorous standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, ensuring compliance with international quality and safety regulations.

Ideal applications include building management systems, genset monitoring, power management in control panels, and electrical distribution monitoring in industrial, commercial, or HVAC systems.

Features a universal LCD power indicator with selectable three-colour backlight screen. User-programmable CT and VT ratios suitable for single or three-phase systems. Displays measurements including current, energy, frequency, power, and voltage simultaneously.

Compact 96 mm x 96 mm cutout size with 82 mm device depth for easy panel mounting. Operates within a temperature range of 0°C to 60°C ensuring industrial reliability. Supports input voltage ranges from 28 V to 570 V for versatile applications.

Includes security code access to protect programming settings. Compatible with plug-in options including RS485 Modbus protocol and pulsed outputs. Certified compliant with CE, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards.

Designed primarily for building management systems, gensets, and power management panels. Explore more from the Digital Panel Multifunction Meter category and discover HOBUT's range of reliable industrial automation instruments at EnvMart.
