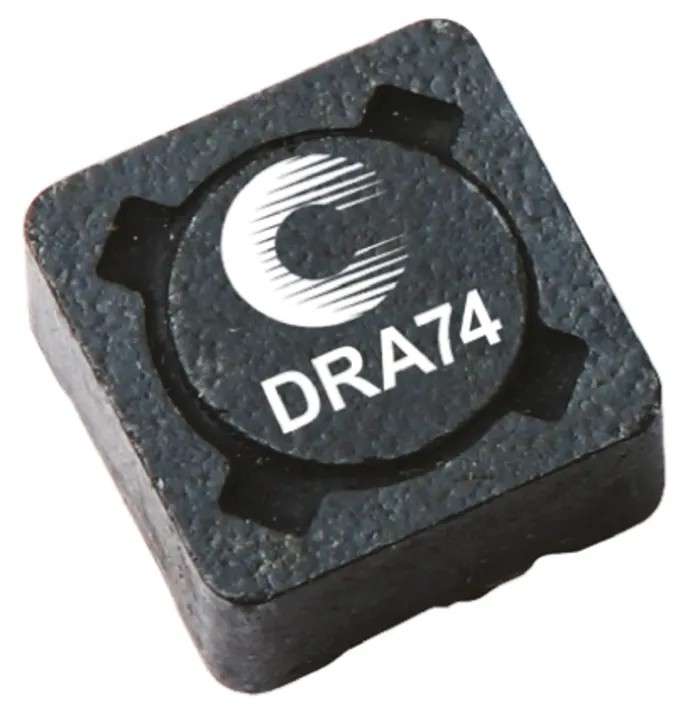

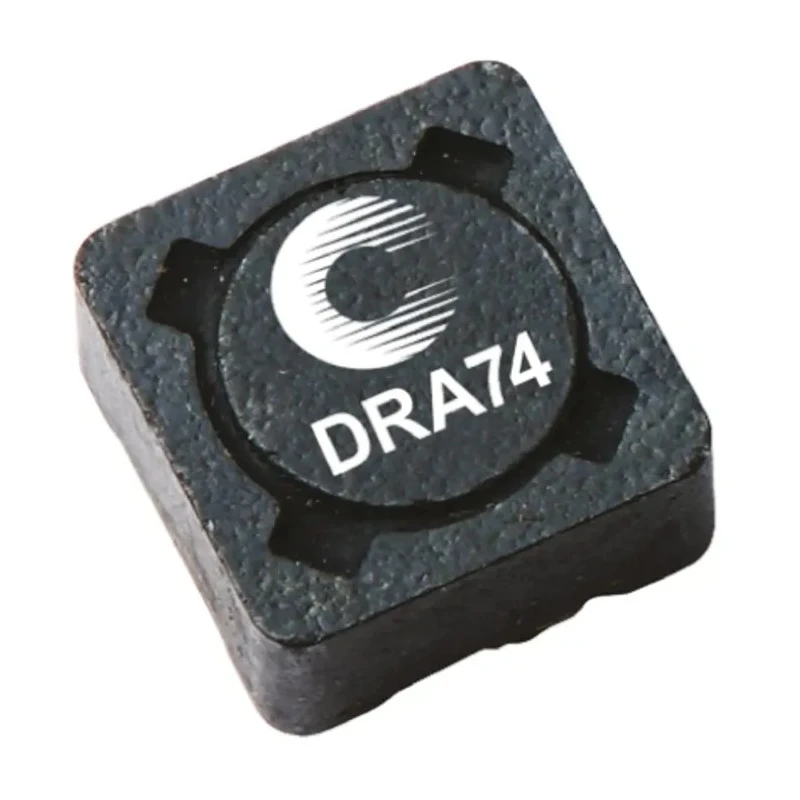

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 150 μH ±20 % 748 mA Idc 0704 DRA74-151-R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Height | 4.35mm |
| Length | 7.6mm |
| Model | DRA74-151-R |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | DRA |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 150μH |
| Standards/Approvals | RoHS |
| Package/Case | 0704 |
| Maximum DC Current | 748mA |
| Pin Count | 2 |
| Maximum DC Resistance | 648mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded drum core design enhances power density and efficiency.
- Constructed with ferrite core material for excellent magnetic properties.
- Suitable for automotive electronics and harsh environments with AEC-Q200 certification.
- Maximum operating temperature of 165°C supports high thermal conditions.
- Surface mount termination style with a 0704 package for PCB integration.
- Maximum DC resistance of 648 mΩ ensures low power loss.
- Mechanical robustness with moulded wirewound construction.
Product Description
Eaton DRA74-151-R is a shielded wirewound Surface Mount Inductor featuring a ferrite core. This component provides 150 μH inductance with a tolerance of ±20 %, and supports a maximum DC current of 748 mA. It is designed for demanding environments in automotive electronics, industrial electronics, and telematics applications.
The DRA series inductors are magnetically shielded using a drum core design, which enables high power density and higher efficiency in DC-DC converters such as buck, boost, forward, and resonant converters. The ferrite core and wirewound construction provide excellent inductance stability and noise filtering capabilities.
With an AEC-Q200 automotive standard rating and a maximum operating temperature of 165°C, this inductor is robust for high shock and vibration environments typically found in automotive under-the-bonnet and interior/exterior electronics. The package case is 0704 with surface mount terminations, resulting in easy PCB assembly. The inductor has a maximum DC resistance of 648 mΩ, which minimizes power loss while maintaining performance.
The maximum self-resonant frequency is 100 kHz, appropriate for a variety of power management applications and noise filtering tasks in industrial, automotive, and telecommunications sectors. The component is moulded for mechanical protection and stability.
Magnetically shielded drum core for efficient power density. Ferrite core material for magnetic efficiency and stability. Compliance with AEC-Q200 automotive standards. High maximum operating temperature of 165°C. Surface mount 0704 package for PCB integration.
Low DC resistance of 648 mΩ to reduce losses. Suitable for noise filtering and DC-DC conversion applications. Moulded wirewound construction for robustness.
This inductor is ideal for usage in automotive electronics, industrial manufacturing, telecommunications, and other sectors requiring reliable power filtering and energy storage components. Eaton products offer quality and durability for engineering and design professionals.
Explore a wide range of inductors and electronic components on EnvMart to find solutions that meet your industrial and technological needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 150 μH with a tolerance of ±20%.
The maximum DC current for this inductor is 748 mA.
It can operate at a maximum temperature of 165°C.
The core material used in this inductor is ferrite, which provides excellent magnetic properties.
The dimensions of this inductor are 7.6 mm in length, 7.6 mm in depth, and 4.35 mm in height.
The maximum DC resistance is 648 mΩ, which helps reduce power loss.
The maximum self-resonant frequency is 100 kHz.
This inductor features a surface mount termination style.
Yes, it is compliant with RoHS and has an AEC-Q200 automotive standard rating.
This inductor is suitable for automotive electronics, industrial electronics, and telematics applications.
It features a wirewound construction, which enhances its inductance stability and noise filtering capabilities.
The inductor is packaged in a reel for easy handling and assembly.
