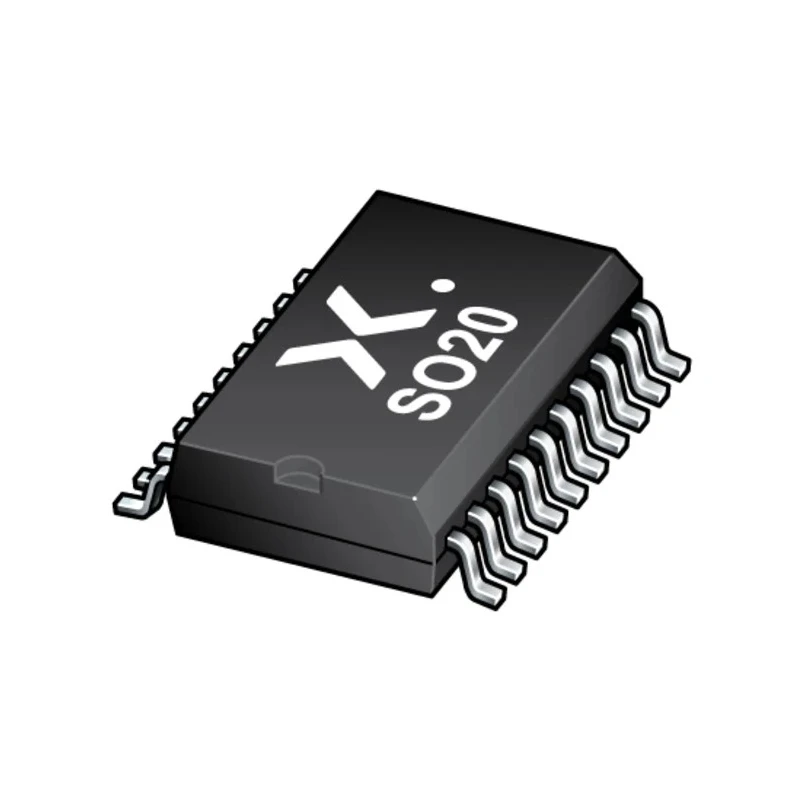

Nexperia Octal D Type Latch 8-Bit Non-Inverting 20-Pin SO 74HCT373D,653

Name: Nexperia Octal D Type Latch 8-Bit Non-Inverting 20-Pin SO 74HCT373D,653
Brand: Nexperia
SKU: 230577
Price: 0.39 USD
Availability: InStock



Category Latch ICs Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	2.45mm
Length	13mm
Model	74HCT373D,653
Mount Type	Surface
Output type	3 State
Series	74HCT
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	8
Pin Count	20
Maximum Supply Voltage	5.5V
Logic Family	74HCT
Logic Function	D Type
Minimum Supply Voltage	4.5V
Maximum Propagation Delay Time @ CL	45ns
Input Level	TTL

Key Features

The device features latch enable (LE) and output enable (OE) inputs for data control.
It operates with a voltage range from 4.5 V to 5.5 V, supporting TTL input levels.
The maximum propagation delay time at CL is 45 nanoseconds, enabling fast signal processing.
The latch supports up to 8 channels with a 20-pin SO package and surface mount type.
Designed to operate in temperature ranges from -40°C to 125°C.
It provides mixed 5 V and 3.3 V applications compatibility and overvoltage tolerance.
Low power CMOS technology ensures efficient power consumption.
Offers improved signal integrity for complex layouts and low propagation delays.

Product Description

Nexperia 74HCT373D,653 Octal D Type Latch is an 8-bit non-inverting transparent latch with 3-state outputs, designed for mixed 5 V and 3.3 V applications. Operating at minimum supply voltage of 4.5 V and maximum supply voltage of 5.5 V, it features latch enable (LE) and output enable (OE) control inputs. When LE is high, the latches are transparent and data changes at the inputs are reflected at the outputs. When LE is low, the latched data is stored from the inputs.

With a maximum propagation delay time of 45 ns, the device supports fast switching and signal processing essential for complex electronic layouts. The latch is housed in a 20-pin SO package with surface mount type, suitable for space-limited PCB designs.

Operating temperature range from -40°C to 125°C ensures robustness in industrial and automotive environments. Its low power CMOS technology and overvoltage tolerance enable efficient and reliable performance across multiple applications.

The device functions as an octal D-type transparent latch for 8 channels with non-inverting polarity. Supports TTL input levels and features three-state outputs for bus-oriented applications. Improves signal integrity and is suitable for backplane interfaces and memory controllers.

Designed for use in semiconductor, electronic component, and industrial control systems. Compact SO package type with surface mount assembly ensures easy integration into PCB designs.

This latch IC is essential for industrial, laboratory, manufacturing, and electronic design applications requiring reliable high-speed data latching and bus control. Its wide voltage range and thermal tolerance make it suitable for demanding environments.
