Keithley Series Source Meter, Current Voltage Source, Measure Current Resistance Voltage, ±200 mV to ±200 V, ±1 μA to 2400

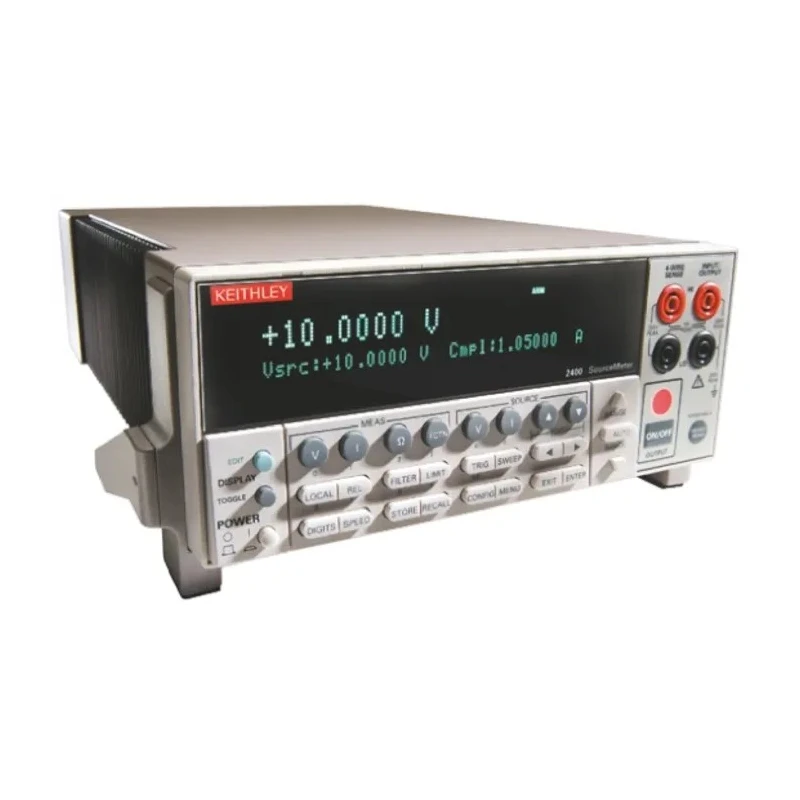

Keithley 2400 Series Source Meter 2400 combines the functionality of a precision voltage and current source with a high-accuracy measurement instrument suitable for demanding test and measurement applications.

This single-channel source meter unit operates over source voltage ranges from ±200 mV to ±200 V and source current ranges from ±1 μA to ±1 A with an output power of 20W. It integrates a low noise and stable DC power source with an instrument-grade 6.5-digit digital multimeter, providing high accuracy and repeatability in measurements.

This instrument supports 2-, 4-, and 6-wire remote sensing techniques to eliminate errors due to lead resistance, crucial for resistance and voltage measurements in semiconductor and precision component testing.

The 2400 supports four-quadrant source and sink operation, enabling sourcing and sinking of current and voltage for comprehensive device characterization and testing capabilities.

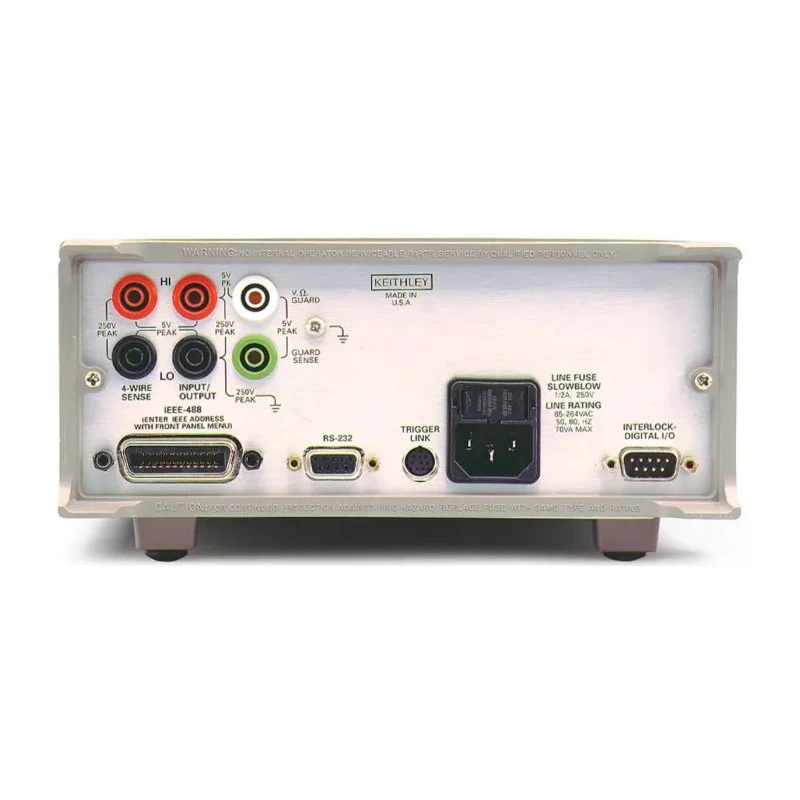

Connectivity includes Standard SCPI commands via GPIB, RS-232, and Keithley Trigger Link interfaces, ensuring easy integration into automated test setups. High-speed measurement rates of up to 1700 readings per second at 4.5 digits facilitate efficient data acquisition.

Additional features include a pass/fail comparator for fast sorting and binning of components as well as a programmable digital I/O port for automation control.

Compact and lightweight design with dimensions of 89 mm height, 213 mm width, and 370 mm depth, and a weight of 3.21 kg, makes it suitable for laboratory benches and production environments.

Contents include the 2400 SourceMeter® unit, Model 8605 test leads, downloadable documentation, KickStart start-up software, and LabVIEW and IVI drivers.

The Keithley 2400 Series Source Meter is ideal for industrial, laboratory, semiconductor, automotive, communications, and medical device testing applications that require precise sourcing and measurement of voltage, current, and resistance.

Functions as voltage source, current source, voltage meter, current meter, and ohmmeter. Offers 6½-digit accuracy with 0.012% basic measurement accuracy. Supports 2-, 4-, and 6-wire remote voltage sensing for precise measurements.

Delivers 1700 readings per second at 4.5 digits via GPIB interface. Includes source and sink (four-quadrant) operation for versatile electrical testing. Equipped with pass/fail comparator for fast component sorting and binning.

Programmable digital I/O port supports automation, handler, and prober control. Complies with standards: 89/336/EEC, UL, EN 61326-1 ensuring reliable, industry-grade performance. Compact form factor measuring 89mm (H) x 213mm (W) x 370mm (D) and weighing 3.21 kg enhances bench space efficiency.

Includes 2400 SourceMeter® unit, Model 8605 test leads, and downloadable documentation and software drivers. For the latest advancements, Keithley recommends considering the newer graphical model 2450 for new applications and designs.
