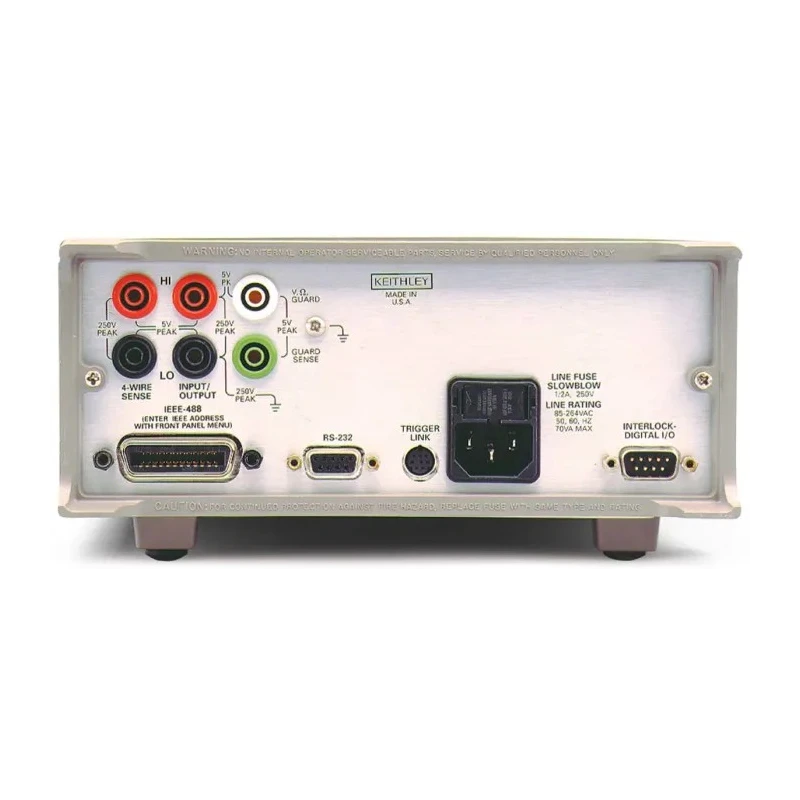

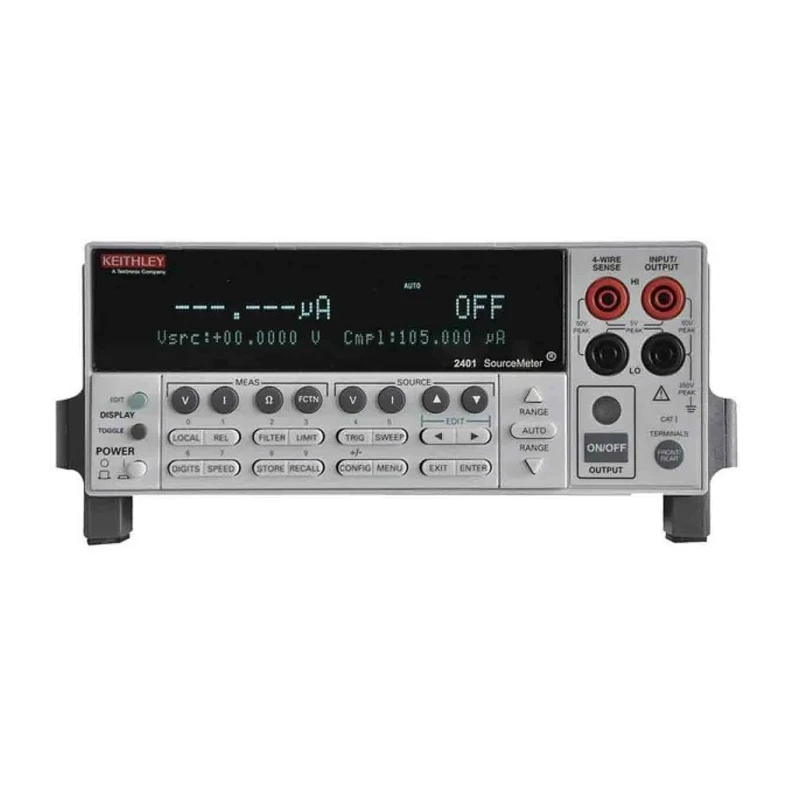

Keithley 2400 Series Source Meter, Single Channel, ±200 mV to ±20 V, ±1 μA to ±1 A, 20W Output 2401.

Keithley 2401. Source Meter is a precision 20V, 1A, 20W SourceMeter® unit featuring a tightly coupled voltage and current sourcing and measurement capability that supports advanced test applications requiring high accuracy and repeatability.

This instrument integrates a low-noise, stable DC power source with a true instrument-grade 6.5 digit multimeter, facilitating precise sourcing and measurement of voltage, current, and resistance.

The device supports 2-, 4-, and 6-wire remote sensing, enhancing measurement accuracy by minimizing voltage drops in test leads and contacts. It achieves a basic measurement accuracy of 0.012% with 6½-digit resolution and fast throughput of up to 1700 readings per second at 4.5 digits using the GPIB interface.

The Keithley 2401. Source Meter operates in source and sink (four-quadrant) mode and features a pass/fail comparator for efficient test sorting and binning. Connectivity options include standard SCPI commands over GPIB, RS-232 interfaces, and Keithley Trigger Link for seamless integration into automated test setups.

Equipped with a programmable digital I/O port, the instrument can control handlers, probers, and automate test sequences. The compact and lightweight design, measuring 89 mm (H) x 213 mm (W) x 370 mm (D) and weighing 3.21 kg, allows easy integration into laboratory benches and test stations.

This Source Meter is ideally suited for industrial, laboratory, semiconductor, communications, automotive, computer, and medical device manufacturing environments requiring precise electrical characterization and production testing.

Package includes the 2401 SourceMeter® unit, Model 8605 Test Leads, downloadable documentation, KickStart startup software, LabVIEW, and IVI drivers. Keithley recommends considering the newer graphical model 2450 for new applications and designs as this model is legacy.

Explore the extensive range of Keithley Source Meters and precision instruments available to optimize your test and measurement systems on EnvMart. Combines voltage and current sourcing and measurement in a single instrument.

6.5 digit multimeter provides precision and low noise measurement. Supports 2-, 4-, and 6-wire remote sensing to enhance measurement accuracy. High-speed data acquisition capability at 1700 readings per second via GPIB. Programmable DIO port for automation and control in test environments.

Multiple communication interfaces: SCPI GPIB, RS-232, Keithley Trigger Link. Compact dimensions and lightweight design for laboratory and industrial use. Measurement ranges suitable for semiconductor, communication, medical, and automotive electronics testing.

Includes test leads and software support for ease of use.
