Keithley 2100 Bench Digital Multimeter 3 A AC, 3 A DC, 750 V AC 2100/230-240

Free Delivery in India | Lowest Global Shipping Charges

Keithley 2100 Bench Digital Multimeter 3 A AC, 3 A DC, 750 V AC 2100/230-240

Name: Keithley 2100 Bench Digital Multimeter 3 A AC, 3 A DC, 750 V AC 2100/230-240
Brand: Keithley
SKU: 227543
Price: 1932.34 USD
Availability: InStock



Category Multimeter Brand Keithley Condition New

Specifications

Country of Origin	Taiwan
Display Type	Digital
Brand	Keithley
Height	112mm
Length	375mm
Model	2100/230-240
Gross Weight	4.1kg
Width	256mm
Series	2100
Maximum Operating Temperature	40°C
Minimum Operating Temperature	5°C
DC Current Accuracy	±0.0055 % rdg + 0.025
Interfaces	USB 2
Resistance Measurement Accuracy	±1 % rdg + 0.02 % range
AC Current Accuracy	±1.25 % rdg + 0.07
Resistance Resolution	100mΩ
AC Current Resolution	1μA ac
DC Current Resolution	10nA dc
Multimeter Type	Bench
Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Maximum Resistance Measurement	100mΩ
Maximum AC Current Measurement	3A ac
Maximum DC Voltage Measurement	1kV dc
Maximum DC Current Measurement	3A dc
Maximum AC Voltage Measurement	750V ac
Maximum Frequency	300kHz
Keithley DMM6500 Bench Multimeter True RMSBrand	Keithley

Key Features

Bench type digital multimeter for versatile electrical test.
Measures AC current, DC current, AC voltage, DC voltage, resistance, and temperature.
High resolution resistance measurement down to 100 milliohms.
Offers DC voltage accuracy of ±0.0055% reading plus 0.001.
Equipped with USB 2.0 interface supporting SCPI test programs.
Wide operating temperature range from 5°C to 40°C for reliability.
Constructed for durability with removable rubber bumpers and sturdy handle.
Suitable for research, development, calibration, and education environments.

Product Description

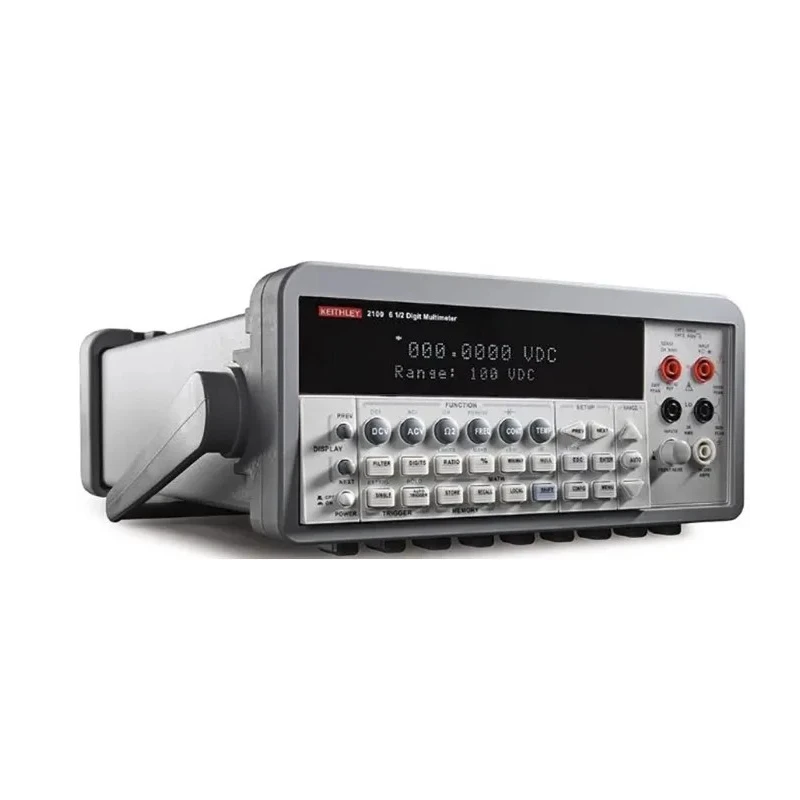

Keithley 2100/230-240 Bench Digital Multimeter provides high precision measurements in electrical and electronic testing with 3 A AC current, 3 A DC current, and 750 V AC maximum voltage capability. Its 6½-digit resolution allows detailed data acquisition for bench and system applications, making it ideal for industrial, laboratory, and educational use.

The instrument features digital display technology with resistance resolution at 100 milliohms and supports measurements of AC/DC voltage, current, resistance, and temperature. Designed for accuracy and reliability, it has a basic DC voltage accuracy of ±0.0055% reading plus 0.001 on the 10 V range.

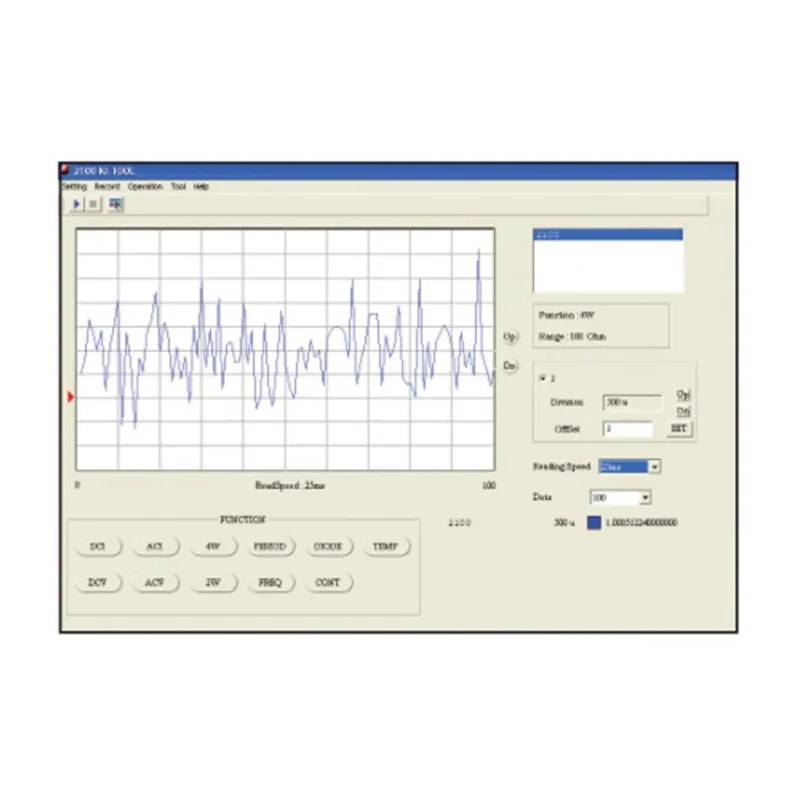

Connectivity is provided via a fully specified USB 2.0 interface compliant with SCPI standards, facilitating integration with automated test equipment and software for graphing and data sharing. The multimeter operates within an ambient temperature between 5°C and 40°C and performs frequency measurements up to 300 kHz.

Its rugged construction includes removable rubber bumpers and a durable handle for portability and protection in various test environments. Compact in size with dimensions 256 mm width, 112 mm height, and 375 mm length, it weighs 4.1 kg, suitable for bench-top use in R&D, calibration labs, educational institutions, and service centers.

Bench digital Multimeter with 6½-digit resolution for detailed measurement. Supports AC/DC voltage up to 750 V AC and 1 kV DC. Measures current up to 3 A AC and 3 A DC with high accuracy. Resistance range from 100 milliohms to 100 MΩ with precision.

USB 2.0 interface enables SCPI test program compatibility and data sharing. Wide operating temperature of 5°C to 40°C for stable performance. Durable build with removable rubber bumpers and sturdy handle. Dimensions: 256 mm (W) x 112 mm (H) x 375 mm (L); Weight: 4.1 kg.

Ideal for engineers, technicians, scientists, and students. Explore our comprehensive selection of precision measuring instruments at EnvMart for your laboratory, industrial, and educational needs.
