Keithley 2110 Bench Digital Multimeter 10 A AC, 10 A DC, 750 V AC 5½-Digit 300kHz 2110-240

Free Delivery in India | Lowest Global Shipping Charges

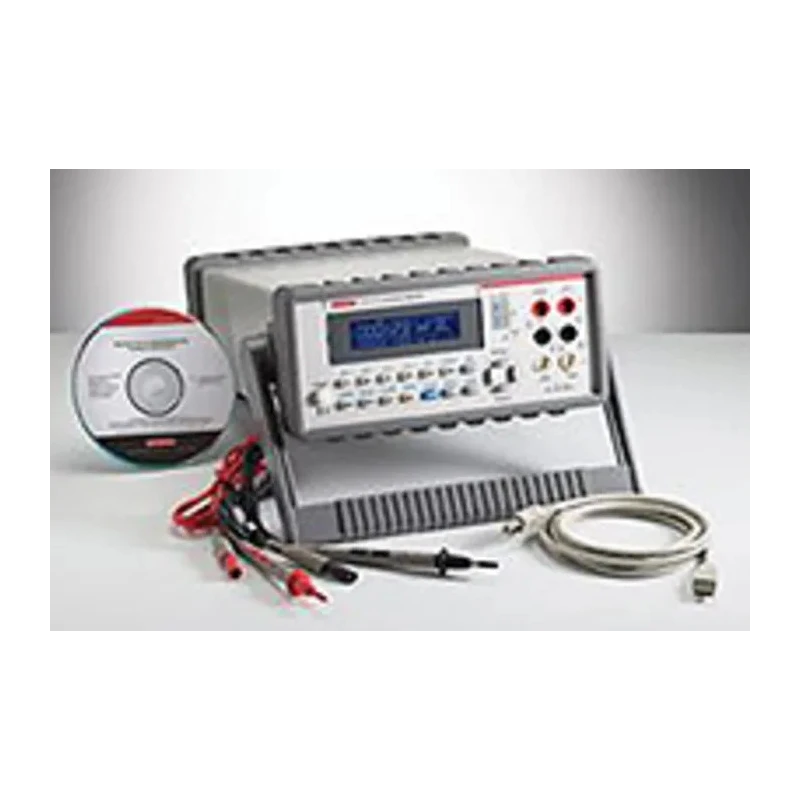

Keithley 2110 Bench Digital Multimeter 10 A AC, 10 A DC, 750 V AC 5½-Digit 300kHz 2110-240

Name: Keithley 2110 Bench Digital Multimeter 10 A AC, 10 A DC, 750 V AC 5½-Digit 300kHz 2110-240
Brand: Keithley
SKU: 130597
Price: 1381.85 USD
Availability: InStock



Category Digital Multimeter Brand Keithley Condition New

Specifications

Country of Origin	Taiwan
Display Type	Digital
Brand	Keithley
Height	107mm
Length	252.8mm
Model	2110-240
Gross Weight	2.2kg
Width	305mm
Maximum Operating Temperature	40°C
AC Voltage Resolution	10mV ac
Minimum Operating Temperature	0°C
Interfaces	USB remote interface
DC Voltage Resolution	10 mV dc
Resistance Resolution	1kΩ
DC Current Resolution	100μA ac
Multimeter Type	Bench
Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Resistance, Temperature
Maximum Resistance Measurement	100mΩ
Maximum AC Current Measurement	10A ac
Maximum DC Voltage Measurement	1kV dc
Maximum DC Current Measurement	10A dc
Maximum AC Voltage Measurement	750V ac
Maximum Frequency	300kHz
Safety Category Level	CAT I, CAT II
Safety Category Voltage	1kV

Key Features

Measures AC/DC current up to 10 A with resolution of 100μA.
Supports AC voltage measurement up to 750 V with 10 mV resolution.
Maximum DC voltage measurement capability of 1000 V with 10 mV resolution.

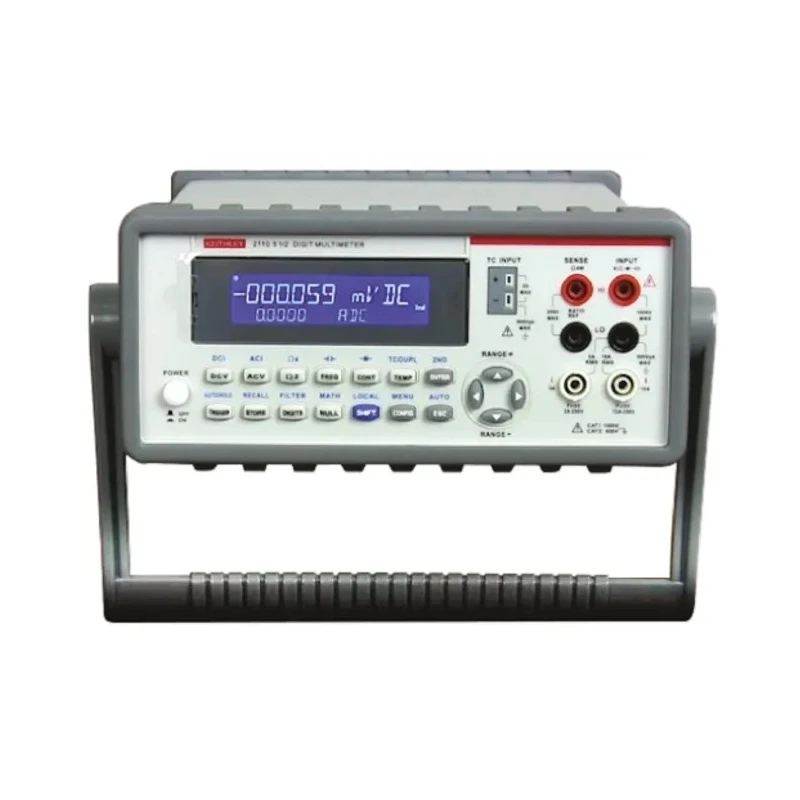

5½-digit dual-line display shows two measurements simultaneously for efficient monitoring.
Wide frequency measurement range up to 300 kHz, suitable for various signal tests.
Includes multiple measurement functions such as capacitance, temperature, diode test, continuity, and resistance.
Robust bench design with digital interface for USB remote control and data logging.
Operating temperature range 0°C to 40°C ensures reliable performance in lab and industrial environments.

Product Description

The Keithley 2110-240 bench digital multimeter is a precision instrument designed for detailed electrical measurements in industrial, laboratory, and manufacturing environments. Featuring a high-resolution 5½-digit dual-line digital display, it accurately measures AC and DC current up to 10 A and voltages up to 750 V AC and 1000 V DC. It supports multiple functions including capacitance, temperature sensing, frequency, diode testing, continuity, and resistance measurement, making it highly versatile for diverse applications.

Its dual display capability allows simultaneous monitoring of two measurements, such as DC voltage and temperature, enhancing user efficiency and workflow. The unit provides a broad frequency detection range up to 300 kHz and includes programmable A-D converter and filter settings to optimize signal-to-noise ratios and improve accuracy.

The robust design includes USB remote interface capabilities, enabling seamless integration with PC software tools for data logging and report generation in Microsoft Word and Excel. The instrument operates reliably within a temperature range of 0 to 40 degrees Celsius and meets safety standards CAT I and CAT II for up to 1 kV operation, prioritizing user safety in electrical test scenarios.

Compact in size, this bench multimeter measures 252.8 mm by 305 mm by 107 mm and weighs approximately 2.2 kg, facilitating easy placement in various workstations. It is ideal for electrical engineering, quality control, HVAC diagnostics, and educational laboratories, delivering precise and fast measurements with throughput speeds significantly surpassing comparable models.

Measures AC/DC current up to 10 A with 100μA resolution. AC voltage capacity up to 750 V with 10 mV resolution. DC voltage measurement up to 1000 V with 10 mV resolution. 5½-digit dual-line digital display for simultaneous measurement viewing.

Frequency measurement from 10 Hz to 300 kHz. Multiple functions: capacitance, temperature, diode test, continuity, resistance. USB remote interface with software for data logging and analysis. Operates between 0°C and 40°C temperature range.

Safety certified to CAT I and CAT II standards, 1 kV rating. Compact and portable design with dimensions suitable for benchtop use. Browse the Digital Multimeter category in EnvMart for detailed specifications and other high-quality test and measurement instruments by Keithley and other global brands.
