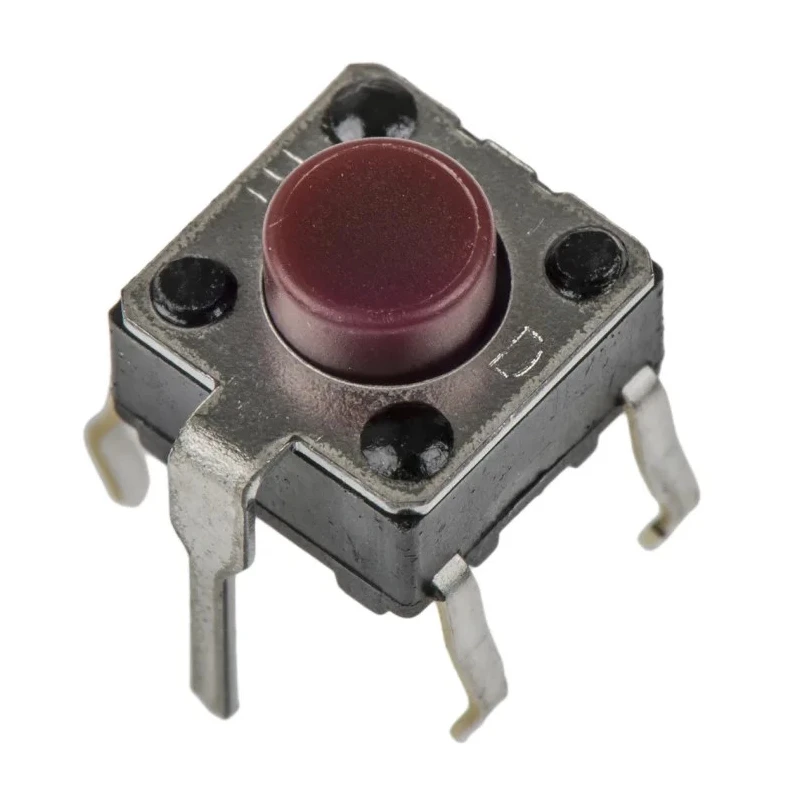

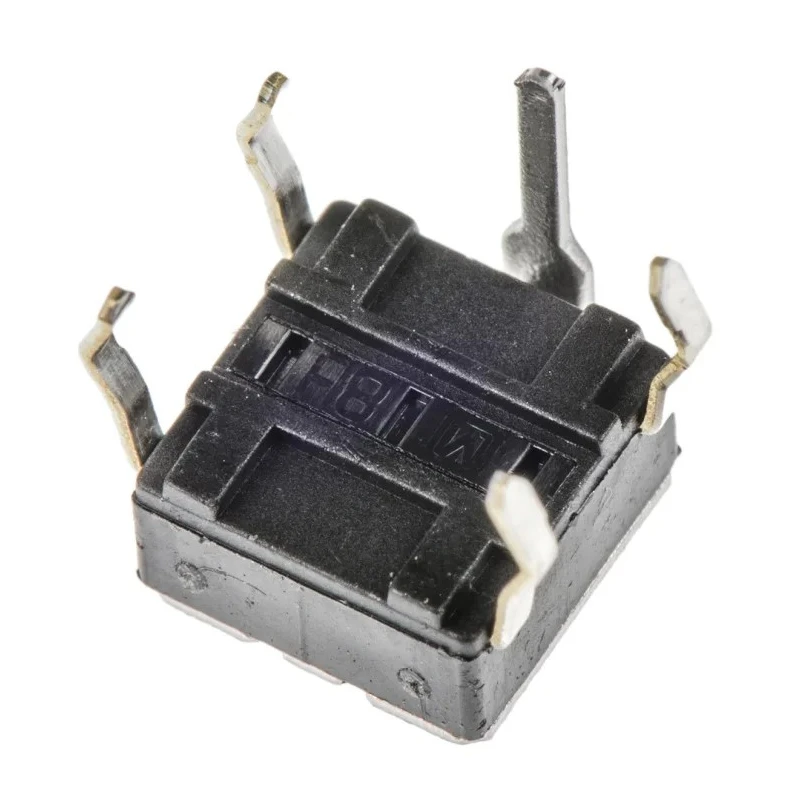

Panasonic Red Tactile Switch Push Plate 5mm SPST 20mA 15 V dc Through Hole EVQPBG05R

Panasonic EVQPBG05R Red Tactile Switch Push Plate is a high-quality momentary switch designed for low current applications with 20mA rating at 15 V dc. Featuring a red push plate actuator of 5 mm length, this switch delivers a reliable SPST contact configuration through a robust through-hole mounting.

This tactile switch provides a sharp, clear click with low contact resistance ensuring a positive operating feel and minimal electrical noise. It is designed for a durable mechanical life of 50,000 cycles, suitable for industrial and consumer electronic devices requiring frequent switching.

Key technical details include a compact form factor with dimensions 6 mm by 6 mm, non-illuminated actuator, and 2.6N operating force. Operating temperature range from -20°C to 70°C makes it adaptable for various environmental conditions in manufacturing, industrial controls, and electronic assembly.

The switch uses a single pole, single throw (SPST) momentary operation providing normally open contacts. Its through-hole mount type supports secure and easy PCB soldering. Complies with RoHS standards, ensuring environmentally safe construction.

Includes a ground terminal to provide additional electrical safety. The actuator push plate color is red, supporting easy visual identification in circuits.

This Panasonic EVQPBG05R tactile switch is widely used in industrial automation, electronic instrumentation, control panels, and telecommunication equipment. The robust design and consistent electrical performance make it suitable for various applications demanding reliable switch actuation with low current loads.
