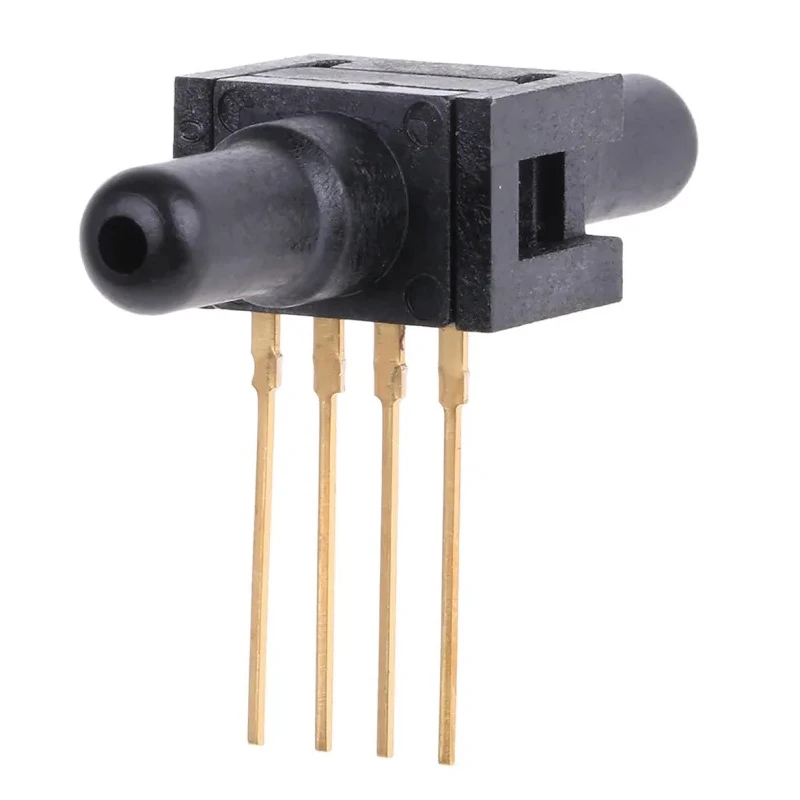

Honeywell Technologies Differential Pressure Sensor Surface Mount Miniature 4 Pin 2.5-12V 24PCBFA6D

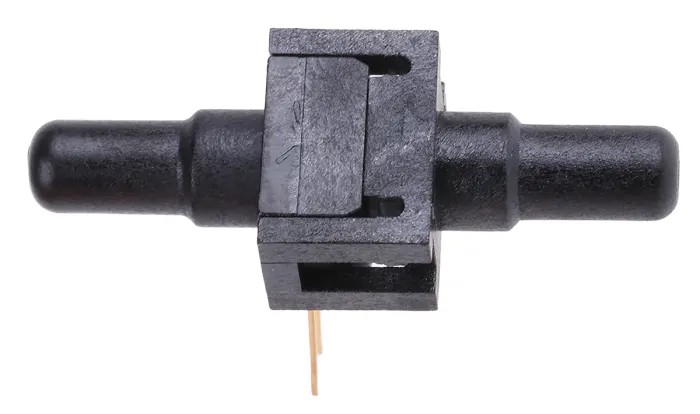

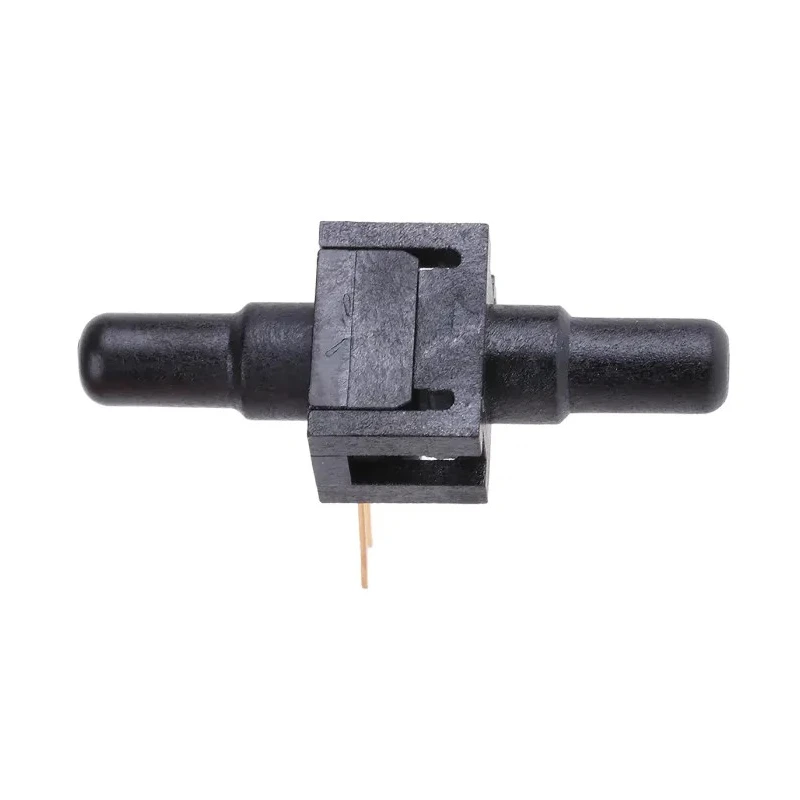

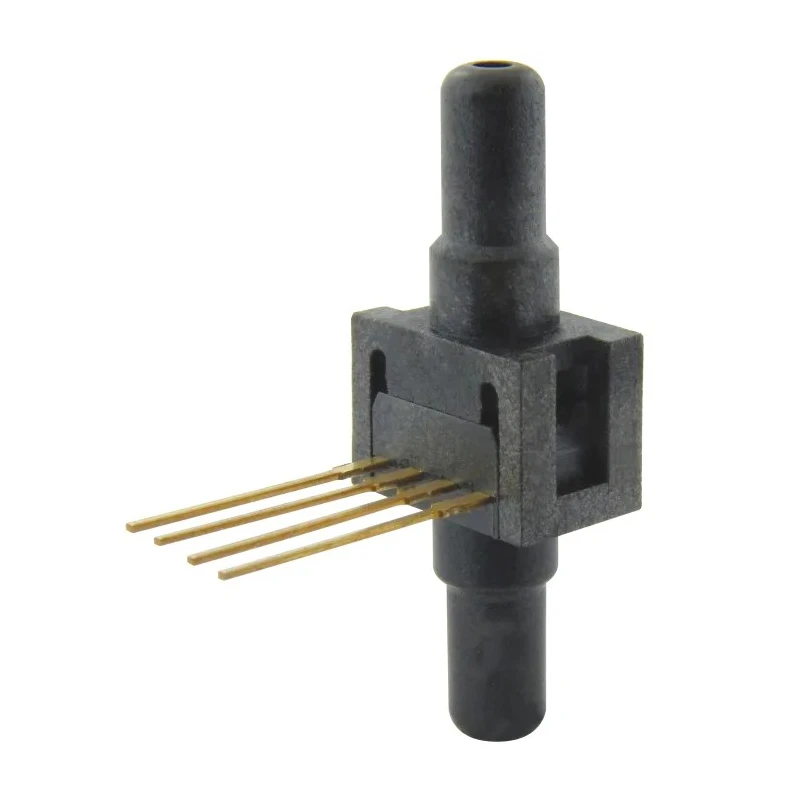

Honeywell Technologies 24PCBFA6D Differential Pressure Sensor is a miniature surface mount device ideal for precise wet/wet low pressure differential sensing applications within electronic and semiconductor industries. Manufactured according to ISO 9001 standards, this compact 4-pin sensor combines proven piezo-resistive micro-machined sensing technology to deliver reliable and accurate pressure measurements.

The miniature SMT package reduces PCB footprint and simplifies integration with other surface mount components, enhancing manufacturing productivity. Operating with a supply voltage range from 2.5V to 12V DC, it offers flexibility in power configurations. The sensor supports a maximum operating differential pressure of 5 psi and can withstand overload pressure up to 20 psi, making it suitable for controlled pressure monitoring environments.

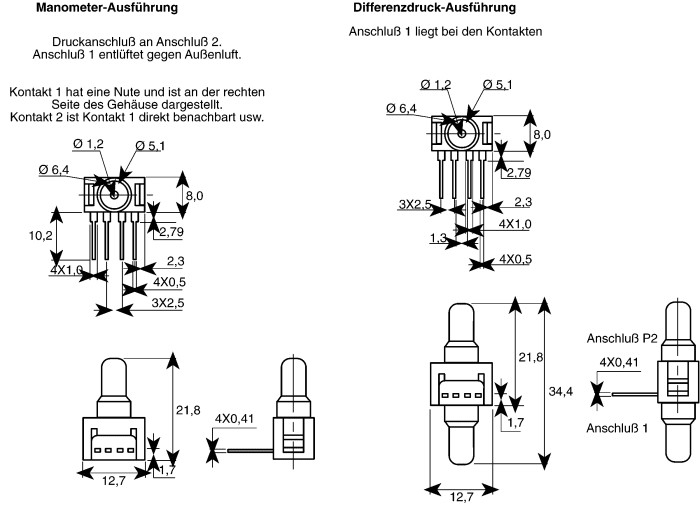

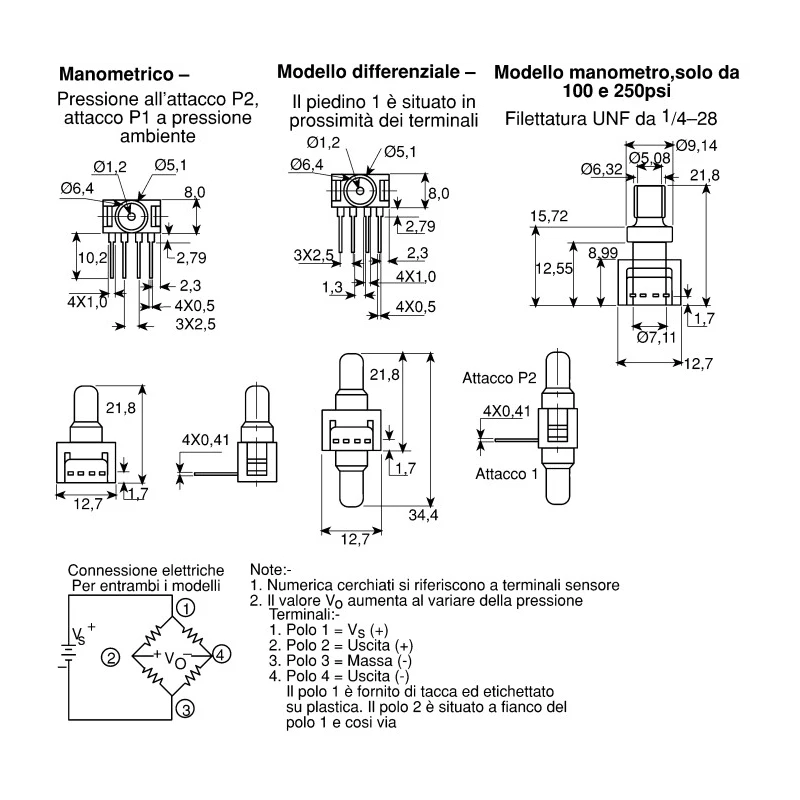

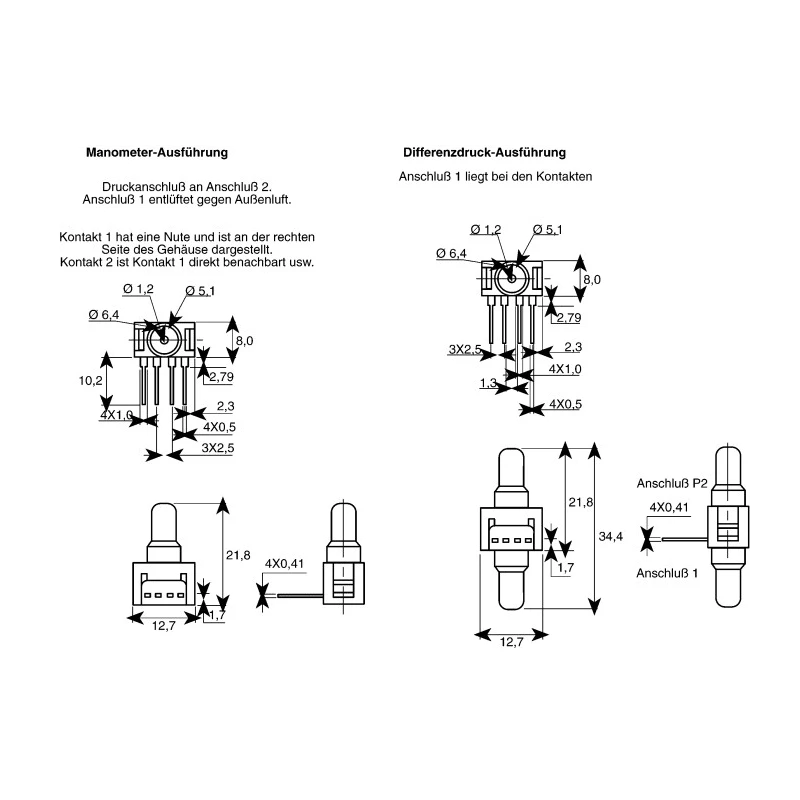

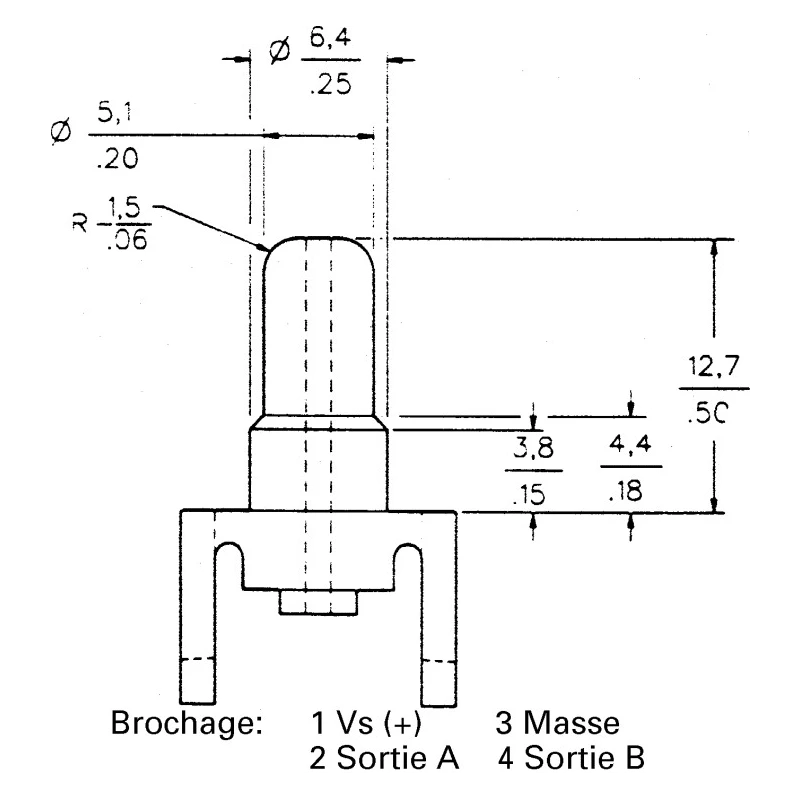

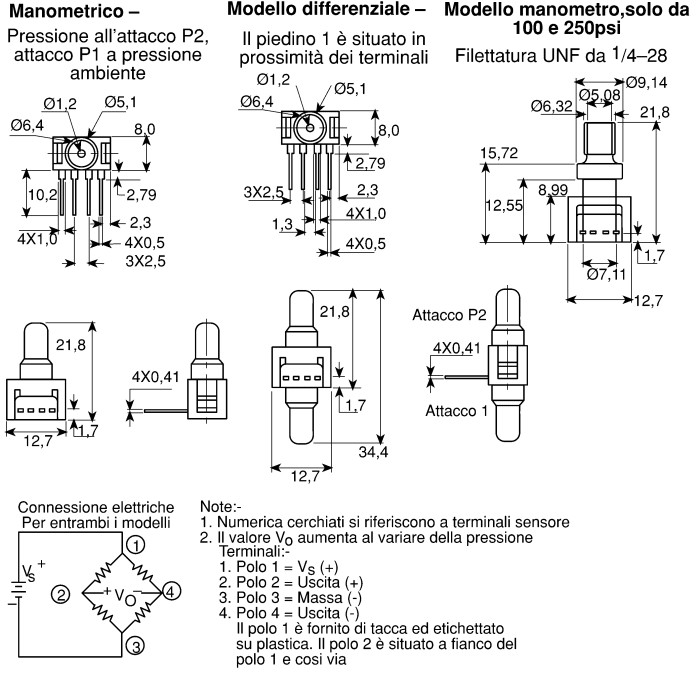

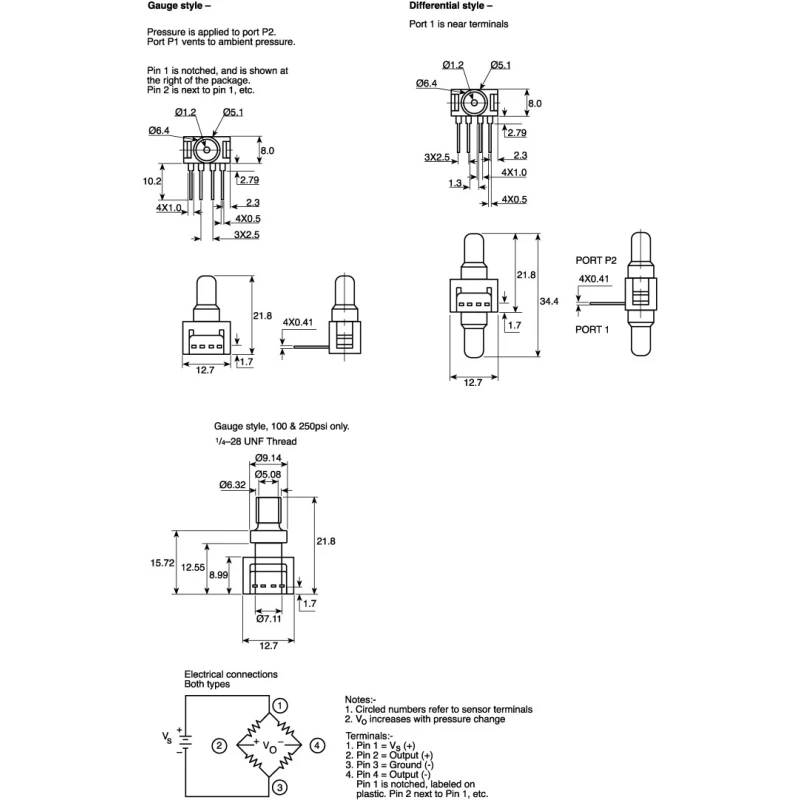

Accuracy is maintained at ±0.2% over a wide temperature range from -40°C to 85°C. Output voltage ranges between 85mV to 145mV proportional to the pressure measured, allowing precise electronic interpretation of pressure changes. The sensor's small dimensions - length 12.7mm, width 9.2mm, and height 27.9mm - further contribute to compact system designs.

This sensor series includes uncompensated/unamplified 24PC models and compensated/unamplified 26PC variants tailored to different sensing needs. The 24PCBFA6D model belongs to the 24PC series, optimized for cost-effective applications requiring basic pressure differentiation.

Common industrial and commercial applications include integration within semiconductor sensor arrays, electronic measuring instruments, HVAC monitoring systems, and laboratory analytical devices that require reliable low pressure differential sensing.

The compact sensor supports wet/wet differential pressure measurement applications. Operates within a voltage supply range from 2.5V to 12V DC for flexible integration. Provides high accuracy with ±0.2% measurement precision across -40°C to 85°C operating temperature.

Features a miniature SMT package minimizing PCB footprint and cost in electronic designs. Capable of handling maximum operating pressure of 5 psi and overload pressure up to 20 psi. Outputs a voltage signal range from 85mV to 145mV representing differential pressure levels.

Constructed following ISO 9001 quality standards ensuring reliable industrial and commercial applications. Designed for use in electronic components, semiconductors, sensors, and measuring equipment. Supports broad temperature range from -40°C minimum to 85°C maximum operating temperature.
