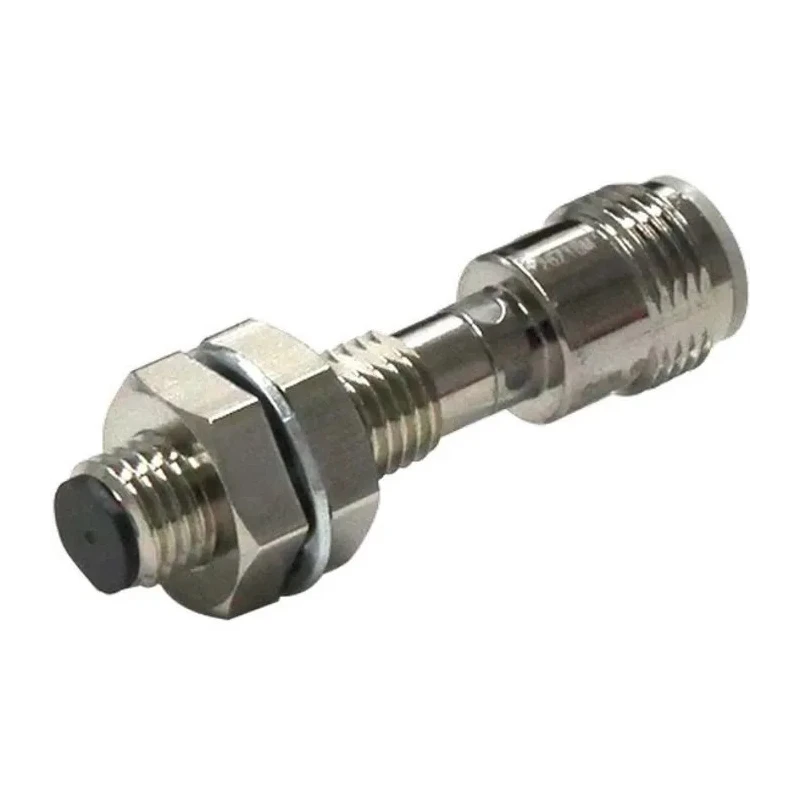

Omron Threaded Barrel Inductive Proximity Sensor M8 PNP E2E-X4B1T8-M1 E2E-NEXT 30 V DC 16 mA 4 mm Detection
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Length | 37.8mm |
| Model | E2E-X4B1T8-M1 |
| Depth | 13mm |
| IP Rating | IP67, IP67G, IP69K |
| Width | 8mm |
| Mount Type | Flush |
| Housing Material | Brass |
| Output type | PNP |
| Series | E2E-NEXT |
| Maximum Operating Temperature | 70°C |
| Thread Size | M8 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 16mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 700Hz |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 30V |
| Materials Detected | Aluminium, Carbon Fibre Reinforced Polymer, Steel |
| Maximum Detection | 4mm |
Key Features
- The sensor body is brass with a threaded barrel style for secure mounting.
- It offers an IP67, IP67G, and IP69K rating providing resistance against dust and water ingress.
- The sensor is flush mountable and has a 4-pin terminal connection.
- Operating temperature range is from -25°C to 70°C suitable for various industrial environments.
- Maximum switching frequency is 700 Hz, supporting fast response applications.
- The sensor detects materials including aluminium, carbon fibre reinforced polymer, and steel.
- The high brightness LED indicator is visible 360°, enhancing status visibility.
- Comes with enhanced oil-resistant cables designed for a two-year oil resistance lifespan.
Product Description
Omron E2E-X4B1T8-M1 threaded barrel Inductive Proximity Sensor with M8 thread size provides a reliable sensing solution with a detection distance of 4 mm. This PNP output sensor operates at a maximum supply voltage of 30 V DC and supports a switching current of 16 mA. Its robust brass housing and threaded barrel body style ensure durability and ease of installation in industrial settings.
The sensor features high ingress protection ratings (IP67, IP67G, IP69K) affording resistance to dust, water, and harsh environmental conditions. It is suitable for flush mounting using a 4-pin terminal type and measures 37.8 mm in length with an 8 mm width and 13 mm depth.
Designed for industrial automation, it detects metals such as aluminium, carbon fibre reinforced polymers, and steel, ideal for applications in manufacturing, assembly lines, robotics, and material handling. The sensor operates reliably within a temperature range of -25°C to 70°C and supports switching frequencies up to 700 Hz, enabling fast and accurate detection in dynamic environments.
Additional enhancements include a world-class long sensing distance to prevent unexpected facility stoppages, a 360° visible high-brightness LED indicator for operational status, and cables with enhanced oil resistance ensuring a 2-year lifespan under oil exposure. The sensor also supports fast replacement using the patented "e-jig" mounting sleeve system, which minimizes maintenance time to just 10 seconds.
The sensor body is brass with a threaded barrel style for durable installation. Maximum supply voltage is 30 V DC with a switching current of 16 mA. Ingress protection ratings of IP67, IP67G, and IP69K guarantee resistance to dust and water.
Maximum detection range of 4 mm suitable for precise proximity sensing. Flush mountable design with 4-pin terminal connectivity. Operating temperature from -25°C to 70°C for versatile industrial applications. Maximum switching frequency of 700 Hz for high-speed detection tasks.
Detects aluminium, carbon fibre reinforced polymer, and steel materials.
This Omron E2E-X4B1T8-M1 proximity sensor is ideal for use in industrial automation, laboratory equipment, manufacturing process control, and robotics. Its robust features ensure long service life and reduced downtime. Explore more sensors and control gear in EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4 mm.
It can detect aluminium, carbon fibre reinforced polymer, and steel.
The maximum operating temperature is 70°C.
This model provides a PNP output type.
The maximum switching frequency is 700 Hz, allowing for fast response applications.
The sensor measures 37.8 mm in length, 8 mm in width, and 13 mm in depth.
It has an IP67, IP67G, and IP69K rating, providing resistance against dust and water ingress.
The E2E-X4B1T8-M1 is designed for flush mounting with a 4-pin terminal connection.
The minimum operating temperature is -25°C.
The housing material is brass, providing durability for industrial applications.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
The maximum supply voltage is 30 V DC.
