TE Connectivity Battery Interconnect Series Right Angle Through Hole PCB Header, 5 Contacts, 5 mm Pitch, 1 Row 5787422-1

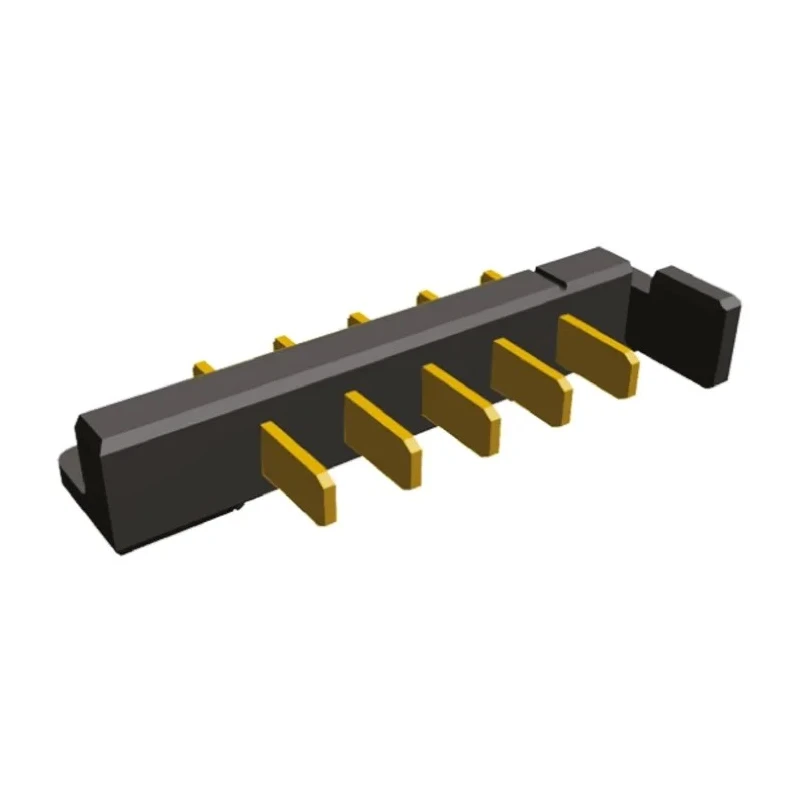

Name: TE Connectivity Battery Interconnect Series Right Angle Through Hole PCB Header, 5 Contacts, 5 mm Pitch, 1 Row 5787422-1
Brand: TE Connectivity
SKU: 225119
Price: 5.38 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	12V
Brand	TE Connectivity
Orientation	Right Angle
Current	8.8A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Brass
Series	Battery Interconnect
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	5mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a right angle orientation suitable for PCB through hole mounting.
Incorporates 5 male brass contacts with gold plating for excellent conductivity.
Constructed with a durable black Liquid Crystal Polymer housing rated UL 94V-0.
Supports a current rating of 8.8 amperes and a voltage rating of 12 volts.
Operates reliably within a temperature range from -55°C to 105°C.
Shrouded design enhances protection and connection stability.
Complies with RoHS environmental standards ensuring material safety.
Ideal for board-to-board connector system applications in electronic assemblies.

Product Description

TE Connectivity 5787422-1 Battery Interconnect Series Right Angle Through Hole PCB Header is designed for robust and precise electronic connections in power supply and distribution systems. With a 5 mm pitch and 5 contacts arranged in a single row, this shrouded male PCB header delivers secure and durable interfacing for printed circuit boards.

The header's housing is molded from black Liquid Crystal Polymer (LCP) rated UL 94V-0, ensuring excellent mechanical strength and flame retardance. Brass contacts with gold plating optimize conductivity and resistance to corrosion. Its right angle orientation supports space-efficient PCB layouts, mounted securely via through hole pins.

Rated for 8.8 amperes current and 12 volts operating voltage, the connector performs reliably across a broad temperature range from minus 55 degrees Celsius up to 105 degrees Celsius, suitable for demanding industrial and electronic environments.

The component conforms to RoHS standards, affirming its environmental compliance. Its rugged design makes it apt for battery interconnect systems, board-to-board connectors in electronic manufacturing, and other industrial assembly applications requiring compact, high-quality electrical connections.

Right angle through hole mounting with 5 contacts. Black UL 94V-0 Liquid Crystal Polymer housing. Brass contacts with gold plating ensure excellent electrical performance. Rated for 8.8A current and 12V voltage operation.

Suitable for industrial, electronics, and power distribution applications. Operating temperature range from -55°C to 105°C. Complies with RoHS standards for safety and environmental care. Manufactured in China with high-quality assurance.

Ideal for PCB electronic assemblies and battery interconnects. Explore the entire range of PCB Headers and connectors from TE Connectivity at EnvMart for reliable electronic component integration and advanced design applications.
