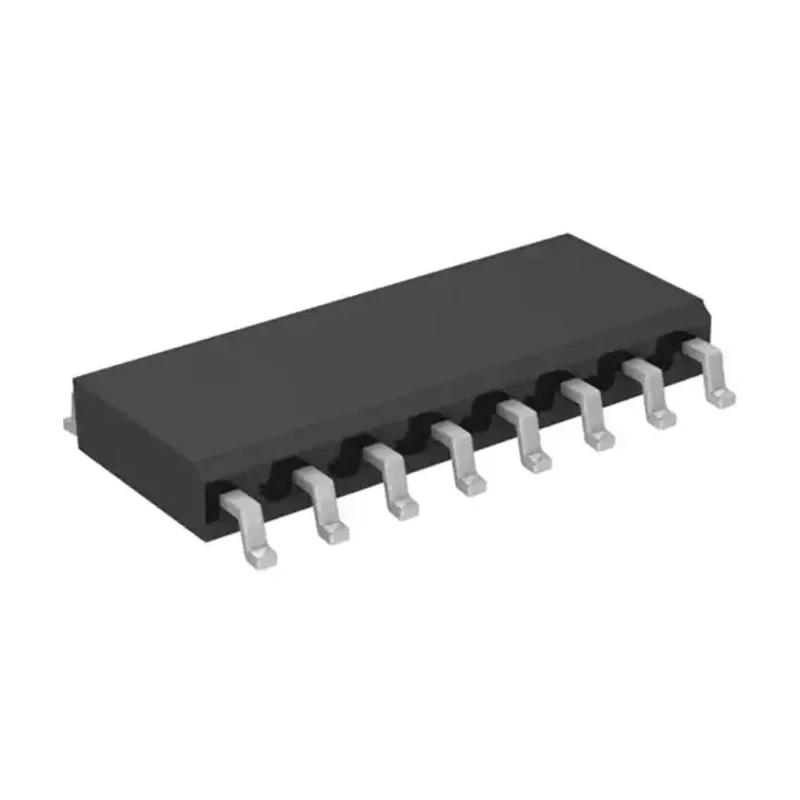

Renesas Electronics 2-Channel Line Transceiver, 3 State, 16-Pin SOIC, 5V, CMOS Logic HIN202CBNZ

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics 2-Channel Line Transceiver, 3 State, 16-Pin SOIC, 5V, CMOS Logic HIN202CBNZ

Name: Renesas Electronics 2-Channel Line Transceiver, 3 State, 16-Pin SOIC, 5V, CMOS Logic HIN202CBNZ
Brand: Renesas Electronics
SKU: 223959
Price: 1.23 USD
Availability: InStock



Category Line Interface IC Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1.75mm
Length	10mm
Model	HIN202CBNZ
Width	6.2mm
Mount Type	Surface
Output type	3 State
Series	HIN202
Maximum Operating Temperature	70°C
Package Type	SOIC
Minimum Operating Temperature	0°C
IC Type	Transceiver IC
Number Of Channels	2
Pin Count	16
Maximum Supply Voltage	5V
Logic Family	CMOS
Logic Function	Transceiver
Maximum Propagation Delay Time @ CL	10μs
Supply Current	5mA

Key Features

Meets all EIA RS-232E and V.28 specifications.
High data rate capability of 120 kbit/s.
On-board voltage doubler and inverter for efficient operation.
Low power consumption, typically 5 mA during operation and 1µA in shutdown.
Three-state TTL/CMOS receiver outputs for flexible interface use.
Operating temperature range of 0°C to 70°C ensuring reliability in various environments.
Compact 16-pin SOIC surface mount package with dimensions 10mm x 6.2mm x 1.75mm.
Ideal for applications where ±12V supply is unavailable.

Product Description

Renesas Electronics HIN202CBNZ is a 2-Channel Line Transceiver designed for RS-232 communication interfaces, incorporating 3-state logic outputs and housed in a 16-pin SOIC surface-mount package. It operates on a single 5V power supply, which simplifies power requirements in modern electronic circuits. The device integrates an on-chip voltage doubler and inverter, allowing full compliance with RS-232E and V.28 standards without needing higher voltage supplies, making it suitable for compact and low-voltage systems.

This CMOS logic device enables high data transfer rates up to 120 kbit/s. It offers low power consumption, with typical current draw of 5mA during normal operation and a minimal 1μA in low power shutdown mode, providing energy efficiency in portable and battery-powered equipment.

The transceiver features three-state TTL/CMOS receiver outputs, allowing multiple devices to share a bus line. It is designed to operate reliably across a wide temperature range from 0°C to 70°C, suitable for various commercial and industrial applications.

The compact footprint of the device, measuring 10mm length, 6.2mm width, and 1.75mm height, enables use in high-density printed circuit boards. Its surface-mount SOIC package facilitates automated assembly and soldering processes.

This product is optimized for use in electronic communication systems requiring RS-232 interface functionality where ±12V supplies are not available, such as embedded systems, industrial equipment, and laboratory devices.

Meets all EIA RS-232E and V.28 specifications. High data rate up to 120 kbit/s. Single +5V power supply operation with on-chip voltage doubler/inverter. Low power consumption during operation and shutdown modes. Three-state TTL/CMOS receiver outputs.

Operating temperature range of 0°C to 70°C. Compact 16-pin SOIC surface mount package. Ideal for applications without ±12V supplies. Low power shutdown function enhances energy efficiency. Explore more components in the Line Interface IC category at EnvMart for reliable semiconductor solutions in electronic design projects.
