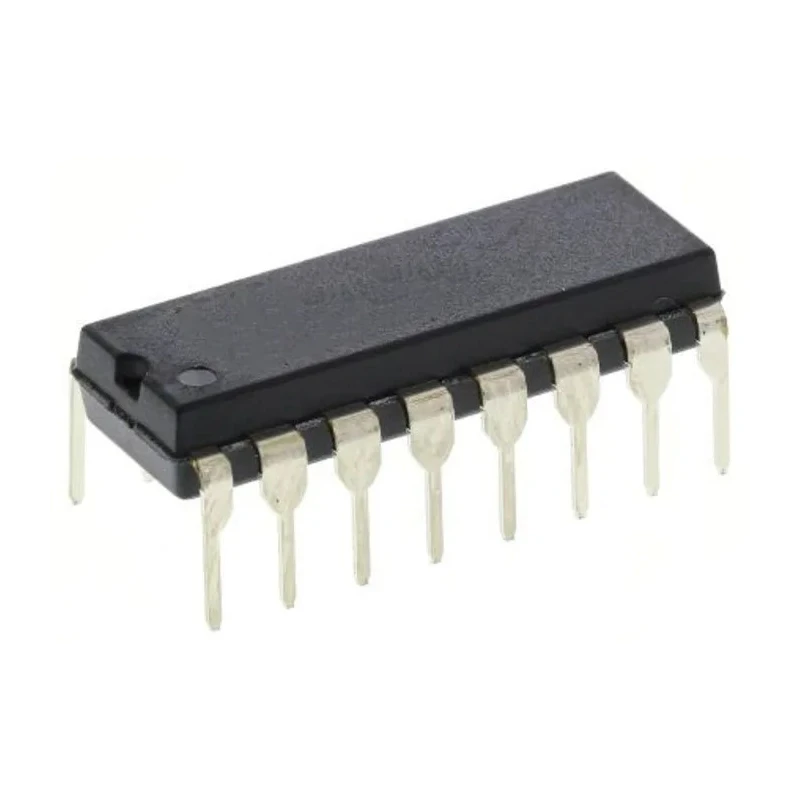

Maxim Integrated Line Transceiver CMOS/TTL Inverting 16-Pin DIP MAX3323EEPE+
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Maxim Integrated |
| Height | 4.58mm |
| Length | 19.43mm |
| Model | MAX3323EEPE+ |
| Width | 8.26mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | MAX3323E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 150ns |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates with a minimum supply voltage of 3V up to a maximum of 5.5V.
- Features 16 pins in a dual in-line package suited for through-hole mounting.
- Provides a maximum data rate of 250 kbps with low power consumption at 1mA supply current.
- Supports ±15kV human body model electrostatic discharge protection for robust operation.
- Functions over an extended temperature range from -40°C to 85°C.
- Includes pin-selectable 5kΩ or high-impedance receivers for flexibility in design.
- Compatible with mixed voltage systems via dedicated VL pin.
- Designed for 1Tx/1Rx operation, suitable for industrial data acquisition and video security systems.
Product Description
Maxim Integrated MAX3323EEPE+ is a line transceiver CMOS/TTL device featuring inverting logic and housed in a 16-pin DIP package, ideal for through-hole mounting applications. It operates within a voltage range of 3V to 5.5V providing a low supply current of 1mA, supporting efficient power management.
This line transceiver offers a data rate up to 250 kbps, suitable for communication devices requiring robust and reliable signal transmission. It features pin-selectable 5kΩ or high-impedance receivers enhancing compatibility and flexibility in circuit design. The dedicated VL pin allows compatibility with mixed voltage systems, facilitating integration.
Designed for industrial environments, the device operates over a wide temperature range from -40°C to 85°C, and includes electrostatic discharge protection capable of withstanding ±15kV human body model and ±8kV contact discharge, ensuring durability and reliability.
The MAX3323EEPE+ is configured for 1 transmitter and 1 receiver channel, making it suitable for applications such as barcode scanners, data splitters, industrial data acquisition systems, and video security installations.
Physical dimensions are compact with a length of 19.43mm, width of 8.26mm, and height of 4.58mm, facilitating integration into various hardware designs. Operates with a minimum supply voltage of 3V and maximum of 5.5V. Offers maximum propagation delay time of 150ns at capacitive load.
Maximum high-level output current is -1mA; maximum low-level output current is 1.6mA. Pin count is 16 in the DIP package type for through-hole mount. Series model MAX3323E featuring CMOS technology. Operating temperature from -40°C to 85°C ensures wide usage range.
Supply current is 1mA, conducive to low power consumption designs. No automotive standard compliance specified; suitable for general industrial use. Applications include barcode scanners, industrial data acquisition, and video security.
Robust ESD protection supports ±15kV human body model and ±8kV contact discharge. Explore additional Line Interface ICs and semiconductor components at EnvMart for your industrial and electronics design needs.
