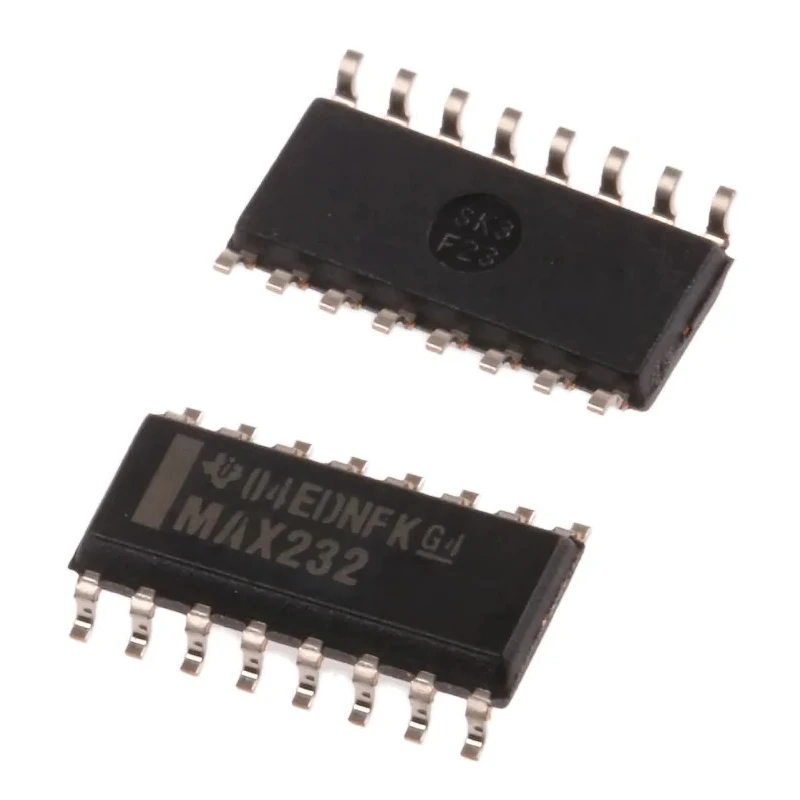

Texas Instruments 2-Channel Line Transceiver CMOS Inverting 16-Pin SOIC MAX232DR

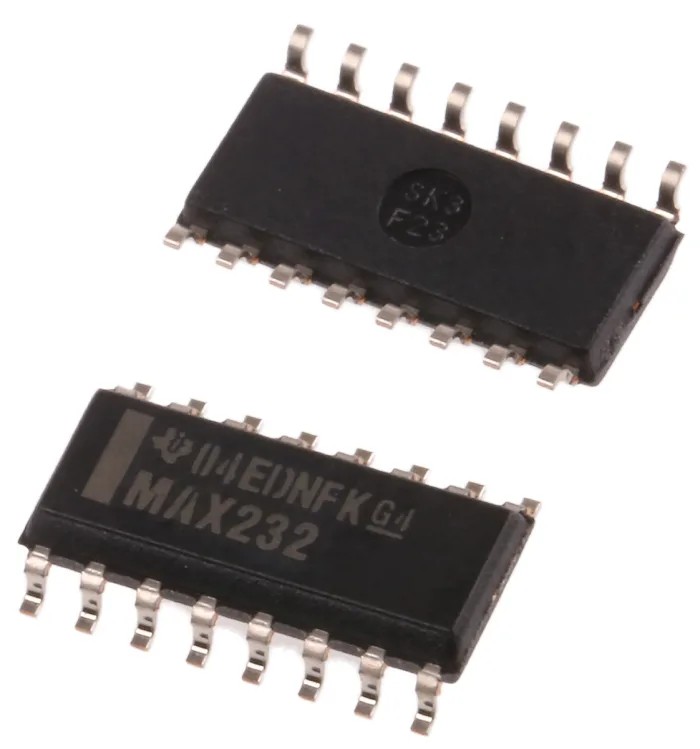

Texas Instruments MAX232DR is a dual channel line transceiver CMOS integrated circuit designed for RS-232 communication interfaces. It features inverting logic functions suitable for data transmission and reception. The IC is encapsulated in a 16-pin SOIC surface mount package, providing a compact form factor for board assembly.

This device operates over a supply voltage range from -0.3V to 6V and has a maximum supply current of 10mA, making it efficient for industrial and commercial electronic applications. It includes two line drivers and two line receivers, enabling full-duplex communication setups.

The MAX232DR transceiver supports a maximum high level output current of 10mA and a maximum low level output current of -10mA, with a maximum propagation delay time of 500ns at the load capacitance, which ensures prompt signal flowing with minimal lag. It functions with single-ended input and CMOS output types featuring inverting polarity for proper signal conversion.

Operating temperatures from 0°C to 70°C expand its usability across standard commercial environments. The device does not carry any particular automotive standards and measures 35 mm in height, 853 mm in length, and 449 mm in width as per package guidelines.

It is designed to meet or exceed the TIA/EIA-232-F and ITU v.28 standards for RS-232 line transceivers and provides ESD protection consistent with industry standards. Supports dual channel operation for simultaneous transmit and receive functions.

CMOS/TTL logic family with inverting polarity for signal conversion. Operates within supply voltages from -0.3V minimum to 6V maximum. Maximum high level output current is 10mA and low level output current is -10mA. Features 500ns maximum propagation delay at specified load capacitance.

Designed for surface mount applications with SOIC package and 16 pins. Operating temperature range from 0°C to 70°C suitable for commercial environments. Supply current consumption is approximately 10mA for efficient power use.

Complies with RS-232 line transceiver standards and incorporates robust design for reliable communication.

This product is ideal for electronic OEMs and repair centres requiring reliable RS-232 communication solutions in industrial, commercial, or instrumentation equipment. Browse the Semiconductor Line Interface IC category to explore additional Texas Instruments transceivers and compatible components at EnvMart.
