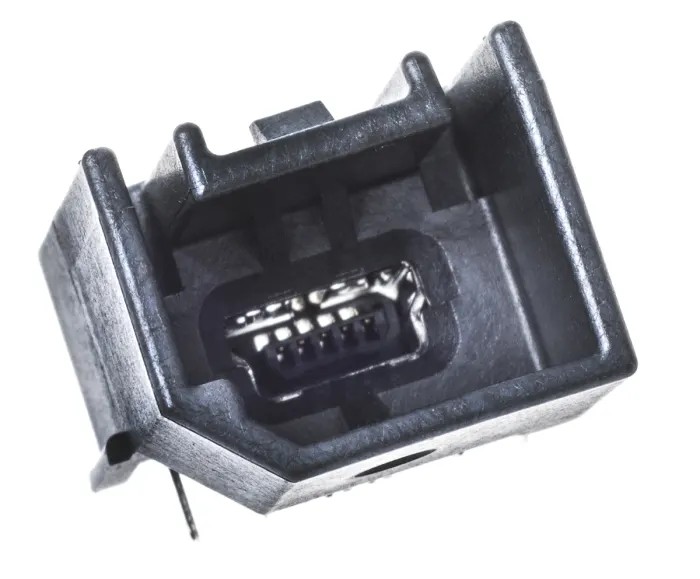

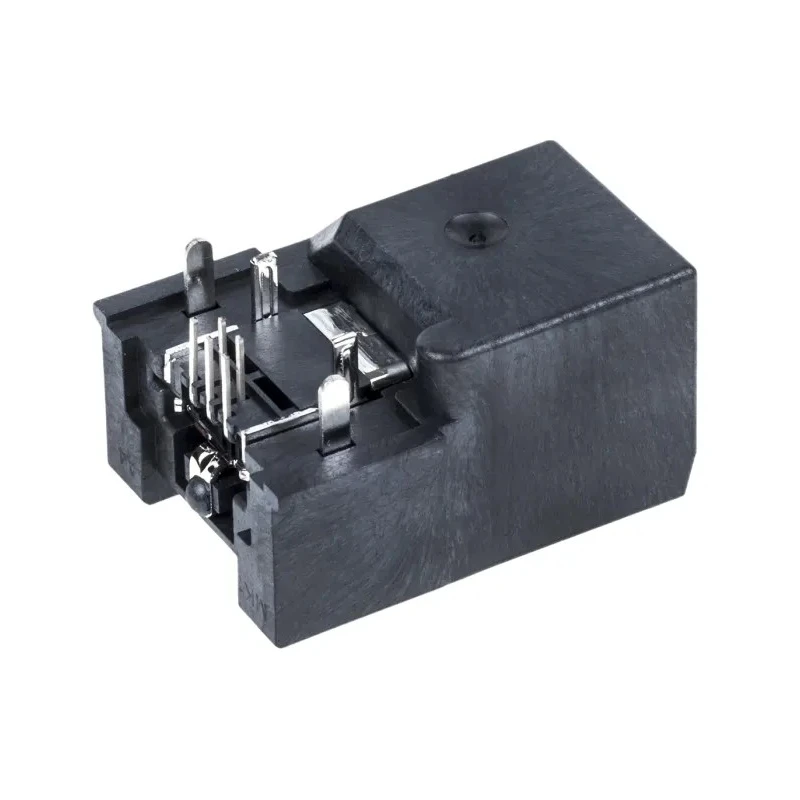

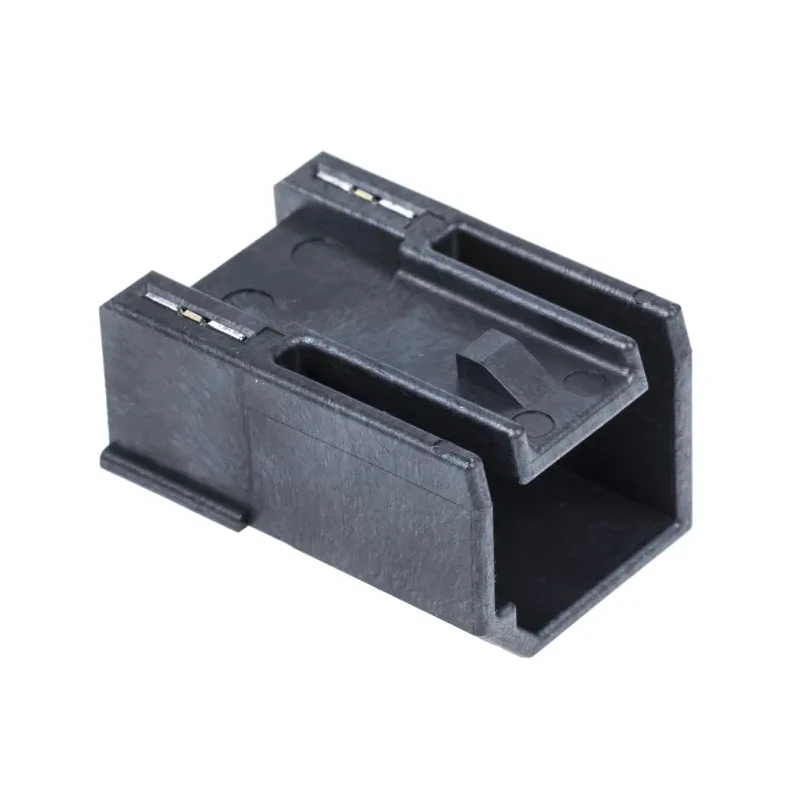

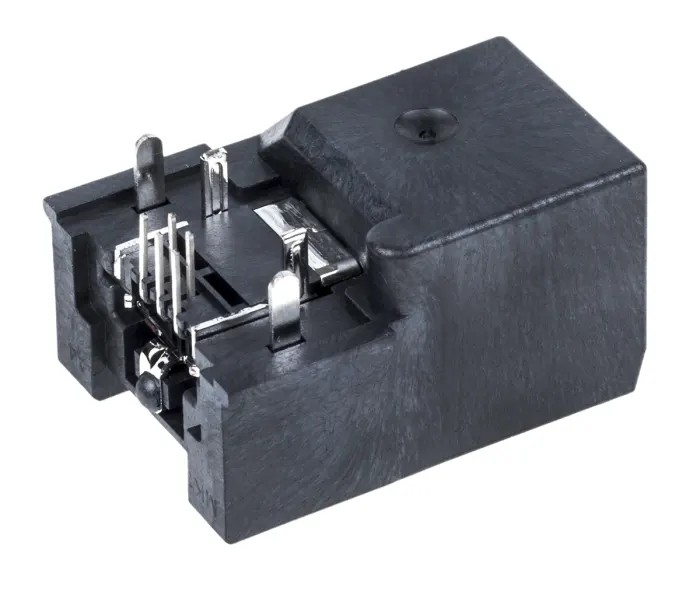

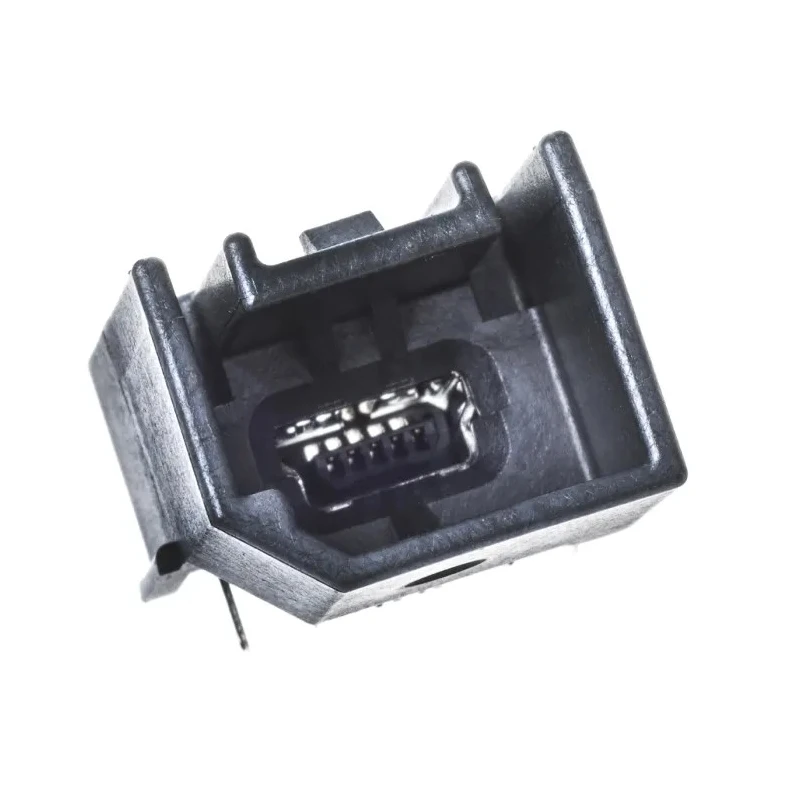

Molex Right Angle Through Hole Male 1 Port USB Type A Connector USB 2.0 16V 1A 49616-0711
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 16V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | HSAUTOLINK |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| USB Type | USB Type A |
| Connector Gender | Male |
| USB Specification | USB 2.0 |
Key Features
- Features a right angle orientation for optimal PCB layout and space saving.
- Single port USB type A male connector provides stable USB 2.0 communication.
- Through hole mount type ensures firm attachment on 1.60mm thick PCBs.
- Contact material is durable copper alloy with gold plating for corrosion resistance.
- Operating temperature ranges from -40°C to 85°C for versatile environmental use.
- Solder termination type for secure electrical and mechanical connection.
- Complies with HSAUTOLINK series standards used in automotive electronics.
- Suitable for automotive media applications including MP3 players, flash drives, and navigation systems.
Product Description
Molex 49616-0711 is a right angle, through hole mount USB Type A male connector designed to meet USB 2.0 specifications with a maximum current rating of 1A and voltage of 16V. This connector features a durable copper alloy contact material with gold plating to ensure reliable electrical connections and long-term corrosion resistance. It supports stable data transmission with automotive-grade robustness.
This model is part of the HSAUTOLINK series that complies with USCAR-30 automotive industry standards. The connector is engineered for PCB mounting on boards with a thickness of 1.60mm using solder termination. Its operating temperature ranges from -40°C to 85°C, making it suitable for a variety of harsh environmental conditions.
The right angle orientation provides effective PCB space management especially in compact assemblies. Typical use cases include automotive infotainment systems such as MP3 players, flash drives, and vehicle navigation systems where high-speed USB 2.0 connectivity is required.
The Molex HSAutoLink system integrates USB and other digital bus technologies tailored for vehicular information and entertainment, supporting high-speed data buses like IEEE 1394b and Ethernet within the automotive sector.
Right angle through hole mount design ensures robust PCB integration. Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance. Rated for 16V voltage and 1A current with USB 2.0 compliance.
Wide operating temperature range from -40°C to 85°C for demanding environments. Ideal for automotive digital devices requiring reliable USB connections. Supports the HSAUTOLINK USCAR mini B USB header standards. Solder termination for secure electrical and mechanical connection.
Compact design fits standard PCB thickness of 1.60mm. Perfect for vehicle media and navigation system applications. Explore more connectors and components compatible with automotive and industrial applications on EnvMart.
Explore more products in our USB Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This USB Type A male connector has a maximum voltage rating of 16V and a current rating of 1A.
The operating temperature range for this connector is from -40°C to 85°C, making it suitable for various environmental conditions.
It features a through hole mount type, designed for firm attachment on PCBs with a thickness of 1.60mm.
The connector is made with a copper alloy contact material that is gold plated for corrosion resistance and reliable electrical connections.
This model complies with USB 2.0 specifications, ensuring stable USB communication.
It uses solder termination for secure electrical and mechanical connections.
It is suitable for automotive media applications, including MP3 players, flash drives, and navigation systems.
This connector has a single port configuration, designed for one USB Type A male connection.
The connector features a right angle orientation, which helps in optimizing PCB layout and saving space.
Yes, this connector is part of the HSAUTOLINK series, which complies with USCAR-30 automotive industry standards.
The country of origin for this connector is India.
This model has a male connector gender, specifically designed for USB Type A connections.
