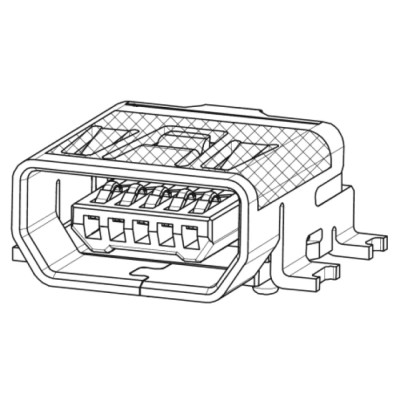

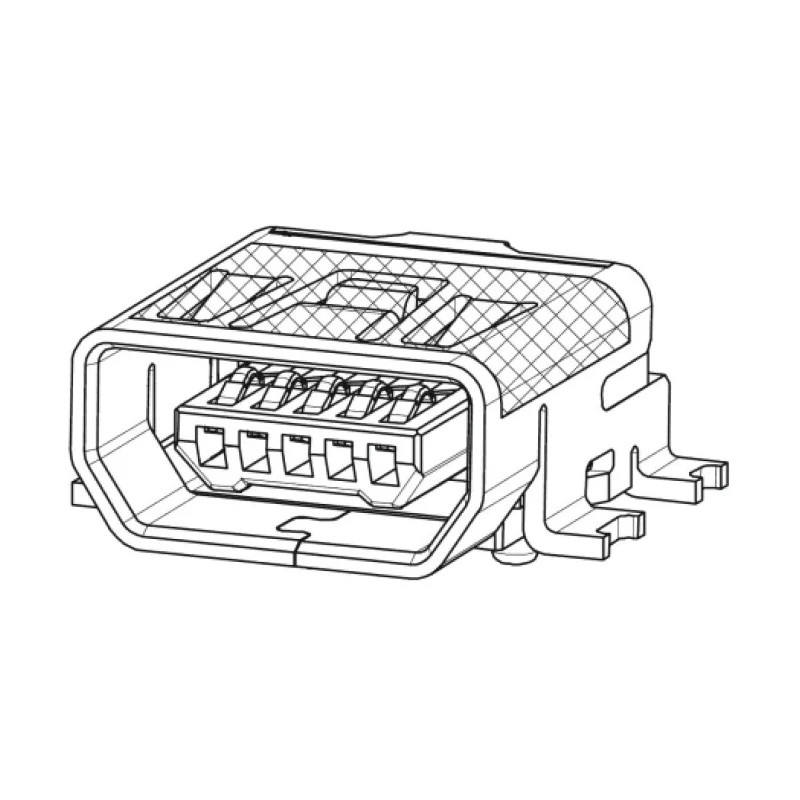

Molex Right Angle Surface Female 1 Port Micro USB Type AB USB Connector USB 2.0 67803-8020
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | Micro USB Type AB |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Operates at a voltage rating of 30V ensuring reliable performance.
- Supports a current rating of 1 Amp for moderate power requirements.
- Features a compact right angle orientation suitable for surface mounting.
- Constructed with copper alloy contact material to provide excellent conductivity.
- Designed to withstand operating temperatures from 0° C to 50° C.
- Compatible with USB On-The-Go (OTG) specification Rev. 1.0 for portable device connectivity.
- Offers excellent RFI/EMI performance supporting stable data transmission.
- Utilizes a 5-pin pitch enabling space-saving PCB layouts.
Product Description
Molex 67803-8020 Right Angle Surface Female USB Connector is a high-quality Micro USB Type AB connector engineered for USB 2.0 compatible devices operating at speeds up to 480 Mbps. This connector is surface-mount type with a right angle orientation to optimize PCB space and mounting efficiency. The copper alloy contacts ensure high conductivity and durability while supporting a voltage rating of 30V and 1A current rating suitable for various electronic applications.
Designed in compliance with USB On-The-Go (OTG) supplement Rev. 1.0, it facilitates direct peripheral connections in portable, mobile, and embedded systems. Its 5-pin design reduces mounting space requirements, making it ideal for compact device designs.
This connector withstands operating temperatures from 0° C to 50° C and is terminated via soldering to ensure robust attachment to printed circuit boards. It offers excellent radio-frequency interference (RFI) and electromagnetic interference (EMI) performance for a stable and reliable connection. The product supports an expected mating life of 5000 cycles, ensuring longevity in industrial and commercial use cases.
Typical use cases include industrial electronics, laboratory instrumentation, consumer portable devices, and automotive electronics where reliable USB connectivity is essential. Its compact design is suitable for manufacturing applications requiring minimal footprint USB connections.
Voltage rating of 30V for stable operation. Current rating of 1A supports various low power devices. Right angle orientation for PCB space optimization. Copper alloy contact material for excellent conductivity. Supports USB 2.0 with data transfer rates up to 480 Mbps.
Compatible with USB On-The-Go (OTG) standard for mobile equipment. Termination by solder ensuring secure PCB mounting. Operating temperature range from 0° C to 50° C. Compact 5-pin pitch design for versatile use. Expected life of 5000 mating cycles for durability.
Explore the Electronics Components category at EnvMart for a wide range of USB Connectors and related solutions from renowned brands like Molex.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a voltage rating of 30V, ensuring reliable performance in various applications.
It supports a current rating of 1 Amp, making it suitable for moderate power requirements in electronic devices.
This model complies with the USB 2.0 specification, supporting data transfer rates up to 480 Mbps.
It features a right angle orientation, which is designed for surface mounting to optimize PCB space.
The operating temperature range is from 0° C to 50° C, allowing it to function effectively in various environments.
This model has 1 port, making it suitable for single connection applications.
The contacts are constructed from copper alloy, which provides excellent conductivity.
It utilizes solder termination, ensuring a secure attachment to printed circuit boards.
The expected mating life is 5000 cycles, indicating durability for industrial and commercial use cases.
Yes, it is designed to be compatible with USB On-The-Go (OTG) specification Rev. 1.0 for portable device connectivity.
It offers excellent RFI/EMI performance, supporting stable data transmission in various applications.
This model utilizes a 5-pin pitch design, which helps in creating space-saving PCB layouts.
