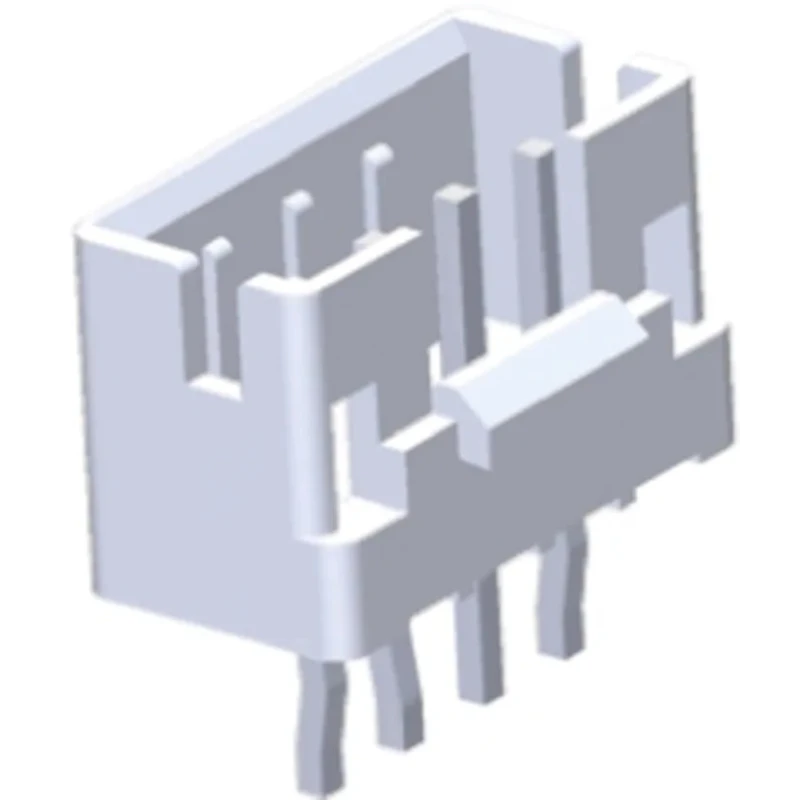

TE Connectivity HPI Series Straight Through Hole PCB Header, 12 Contacts, 2 mm Pitch, 1 Row, Shrouded 1-1735446-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | HPI |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed with 12 copper alloy contacts for reliable electrical connection.
- Features a 2 mm pitch and single row configuration for compact PCB applications.
- Shrouded thermoplastic housing protects contacts and prevents mismating.
- Rated for 3A current with a voltage rating of 250V for versatile use.
- Through hole mount type with kinked solder tails ensures secure PCB retention.
- Male contact gender with tin plating provides corrosion resistance.
- Operating temperature range from -25°C to 85°C supports diverse environments.
- Polarization and partial shrouding enhance connection reliability and durability.
Product Description
TE Connectivity 1-1735446-2 HPI Series Straight Through Hole PCB Header offers a durable and reliable wire-to-board connector solution featuring 12 male contacts with a 2 mm pitch arranged in a single row. Its thermoplastic housing is partially shrouded with polarization features to protect the contacts and prevent incorrect mating during installation.
This PCB header is rated for a maximum current of 3A and voltage of 250V, suitable for various industrial, business, consumer, and medical device applications requiring secure and stable signal routing or low power transmission. The connector employs kinked solder tails to maintain secure retention on the PCB during soldering processes.
The high-performance interconnect design ensures compatibility with standard PCB footprints through square solder pegs. The contact plating with tin enhances corrosion resistance, extending product life even under challenging operating temperatures ranging from -25°C to 85°C.
Ideal for use in a broad range of electronics including business equipment, industrial machinery, consumer devices, and medical instrumentation, this TE Connectivity PCB header provides dependable performance in demanding environments.
Designed with 12 copper alloy contacts for reliable electrical connection. Features a 2 mm pitch and single row configuration for compact PCB applications. Shrouded thermoplastic housing protects contacts and prevents mismating.
Rated for 3A current with a voltage rating of 250V for versatile use. Through hole mount type with kinked solder tails ensures secure PCB retention. Male contact gender with tin plating provides corrosion resistance. Operating temperature range from -25°C to 85°C supports diverse environments.
Polarization and partial shrouding enhance connection reliability and durability. Compatible with industry standard products using square solder pegs. Explore the TE Connectivity range and find high-quality PCB Headers engineered for performance and reliability in various electronics and electrical applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a maximum current of 3A and a voltage of 250V, making it suitable for various applications requiring secure signal routing or low power transmission.
It features a 2 mm pitch with a single row configuration, designed for compact PCB applications.
This unit uses a through hole mount type with kinked solder tails, ensuring secure retention on the PCB during soldering processes.
The housing is made of thermoplastic, and the contacts are constructed from copper alloy with tin plating for corrosion resistance.
It operates effectively within a temperature range of -25°C to 85°C, accommodating diverse environmental conditions.
This header is designed with 12 male contacts, facilitating reliable electrical connections.
Yes, it has a shrouded design with polarization features to protect the contacts and prevent mismating during installation.
Yes, it is compatible with industry standard products using square solder pegs, ensuring easy integration into existing designs.
The contacts in this model are male, which is standard for wire-to-board connector systems.
It uses solder termination, which is common for securing connections on PCBs.
This model belongs to the HPI Series of PCB headers, which are designed for reliable wire-to-board connections.
The country of origin for this PCB header is India.
