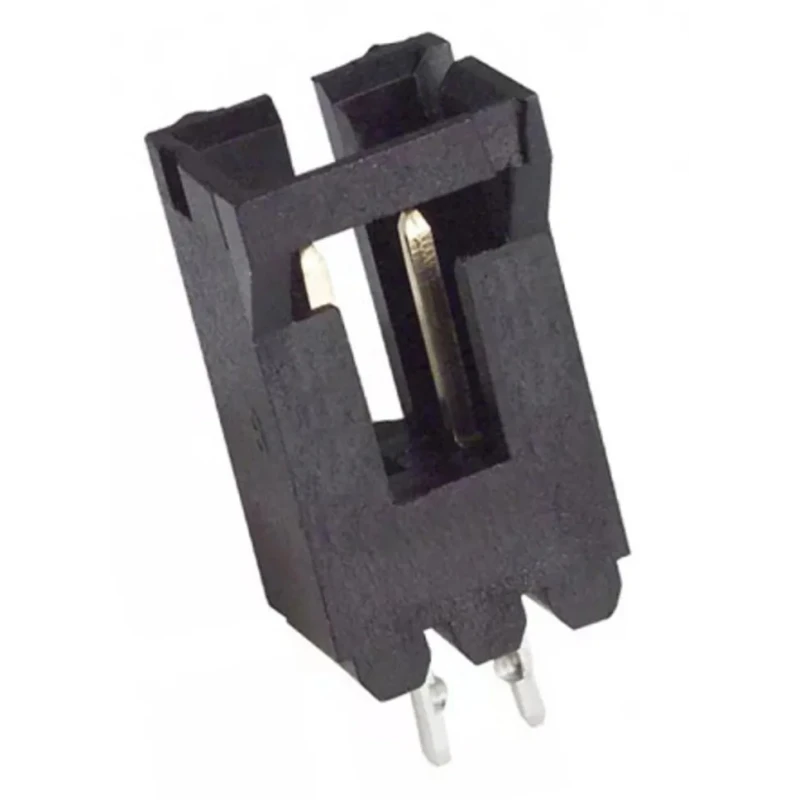

TE Connectivity AMPMODU MTE Series Straight Through Hole PCB Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 5-103908-1

TE Connectivity 5-103908-1 PCB Header from the AMPMODU MTE Series is a straight through hole, 2-contact, 1-row, shrouded connector with a pitch of 2.54 mm. This high-quality PCB Header is designed for wire-to-board applications, providing a reliable electrical connection with a current carrying capacity of 3 amperes and voltage rating of 40 volts.

The header housing is made of thermoplastic material, offering excellent durability and insulation properties, while the contacts are fabricated from copper alloy plated with gold for enhanced conductivity and corrosion resistance. Its straight orientation and through-hole mounting type simplify installation on PCBs.

Operating across a wide temperature range of -55°C to 105°C, this connector is ideal for use in various industrial and commercial fields, including computers, telecommunications, copiers, commercial printers, medical instrumentation, test equipment, and automotive controls.

The AMPMODU MTE system features integral polarization and latching mechanisms to prevent mismating and secure the connection firmly. The connectors are end-to-end stackable, allowing flexible configuration for larger systems. Swaged retention tail options ensure the header remains securely attached to the PCB.

This product facilitates cost-effective mass termination of wires using insulation displacement contact (IDC) technology, enabling quicker assembly and wire termination processes for manufacturers.

Supports a current rating of 3 amperes for reliable electrical performance. Housing is made of durable thermoplastic material ensuring stability and insulation. Designed with copper alloy contacts plated with gold for corrosion resistance and optimal conductivity.

Features a straight orientation with through-hole mount type for easy PCB installation. Operates safely within a temperature range from -55°C to 105°C. Polarized and latching mechanism to prevent mismating and provide secure connections.

Applicable in computers, telecommunications, commercial printers, medical and automotive equipment. Rated for voltage of 40 volts suitable for low voltage electronic applications. Swaged retention tail versions available for enhanced PCB retention.

Explore the TE Connectivity range at EnvMart for high-quality connectors suitable for demanding industrial and commercial electronic assembly applications.
