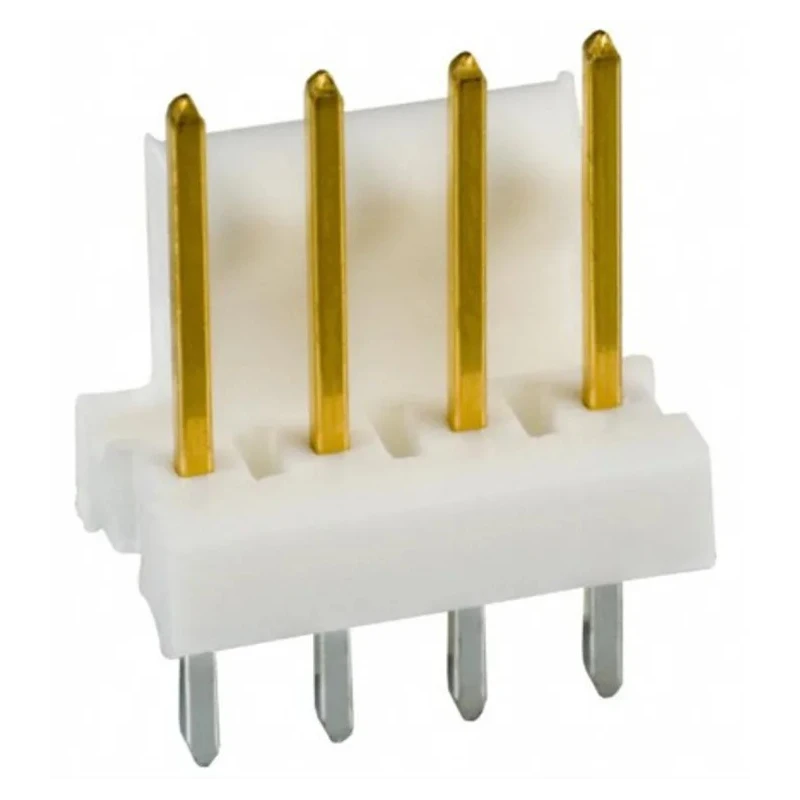

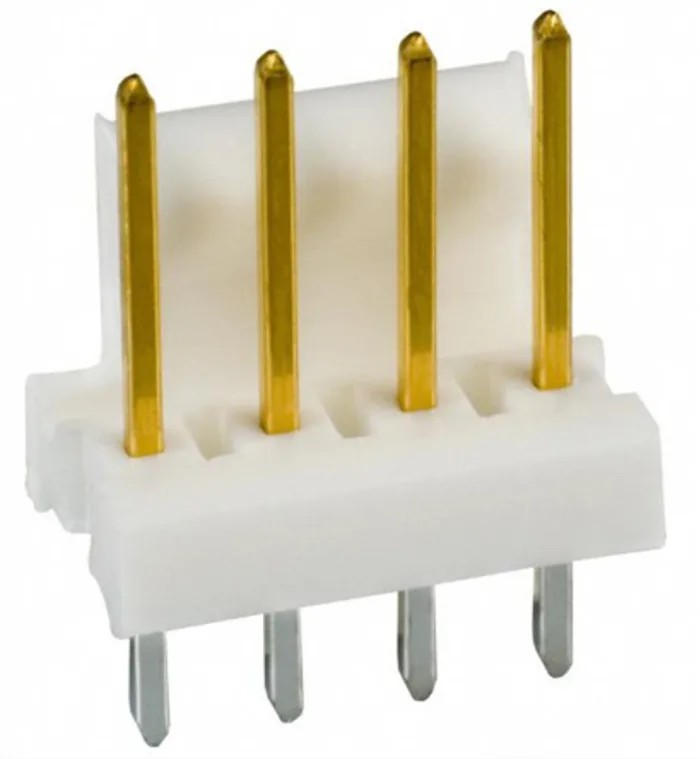

TE Connectivity MTA-100 Series Straight Through Hole Pin Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 3-641215-4

TE Connectivity 3-641215-4 MTA-100 Series straight through hole pin header is a premium quality PCB connector designed for reliable wire-to-board connections. Featuring 4 male contacts spaced at 2.54 mm pitch in a single row, this unshrouded header allows easy access for soldering and secure mechanical mounting through a robust through-hole design.

The header's contacts are made from copper alloy with gold plating, enhancing conductivity and long-term resistance to corrosion, ensuring electrical signal integrity in demanding operating conditions. The housing is constructed from glass filled polyester, providing mechanical strength and insulation.

Operating at a maximum current of 5A and voltage of 250V, the header performs reliably in a temperature range from -65°C to 105°C, making it suitable for broad industrial and automotive environments.

The series supports cost-effective mass wire termination when mated with MTA-100 insulation displacement connectors (IDC) using a friction lock mechanism for a secure mating. Its end to end stackable design offers flexibility in layout and assembly.

These headers find application in automotive body systems, chassis wiring, safety and security systems, as well as in computers and consumer electronics including desktops, notebooks, servers, and storage devices.

The unshrouded design facilitates versatility and ease of use with various mounting orientations and configurations to meet diverse wiring needs. The pins are gold plated on copper alloy for reliable conductivity and corrosion resistance.

Designed for through-hole mounting with solder termination for robust PCB connection. Supports a maximum current of 5A and operating voltage of 250V. Housing made of durable glass filled polyester material for mechanical stability.

Operates over a temperature range from -65°C to 105°C ensuring performance in harsh environments. Features end to end stackable design with friction lock mechanism for secure mating with MTA-100 IDC connectors. Suitable for automotive, computer, and consumer electronics applications requiring mass wire termination.

Unshrouded body allows easy access with right angle and vertical mounting options available in the series. Compliant with no specific standards but designed for reliable industrial wire-to-board connectivity. Explore the PCB Headers category on EnvMart for more advanced connectors from reputed brands like TE Connectivity to suit your industrial and electronic application needs.
