Broadcom 3.8 V Green LED PLCC 4 Surface Mount High Brightness Round Lens 787 mcd HSMM-A400-U4QM2

Free Delivery in India | Lowest Global Shipping Charges

Broadcom 3.8 V Green LED PLCC 4 Surface Mount High Brightness Round Lens 787 mcd HSMM-A400-U4QM2

Name: Broadcom 3.8 V Green LED PLCC 4 Surface Mount High Brightness Round Lens 787 mcd HSMM-A400-U4QM2
Brand: Broadcom
SKU: 219552
Price: 0.92 USD
Availability: InStock



Category LED - Light Emitting Diodes Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HSMM-A400-U4QM2
Packaging	Tape & Reel
Mount Type	Surface
Series	HSMx
Maximum forward current	30mA
Viewing angle	120 °
Package Type	PLCC 4
Standards/Approvals	RoHS
LED Colour	Green
Dominant Wavelength	525nm
Forward Voltage	3.8V
Number of Pins	4
LED Luminosity	787 mcd
Maximum Power Dissipation	114mW
Lens Dimensions	3.2 x 2.8 x 1.8 mm
Lens Shape	Round

Key Features

Operates at a forward voltage of 3.8 V and maximum forward current of 30 mA.
Features a round clear lens with dimensions 3.2 x 2.8 x 1.8 mm.
Provides luminous intensity of 787 mcd and dominant wavelength of 525 nm.
Has a viewing angle of 120 degrees for wide light dispersion.
Designed in industry standard PLCC-4 package with tape and reel packaging for efficient assembly.
Complies with RoHS standards ensuring environmental safety.
Suitable for backlighting, electronic signs, displays, and automotive environment use.
High optical efficiency utilizing AlGaInP technology for vibrant green output.

Product Description

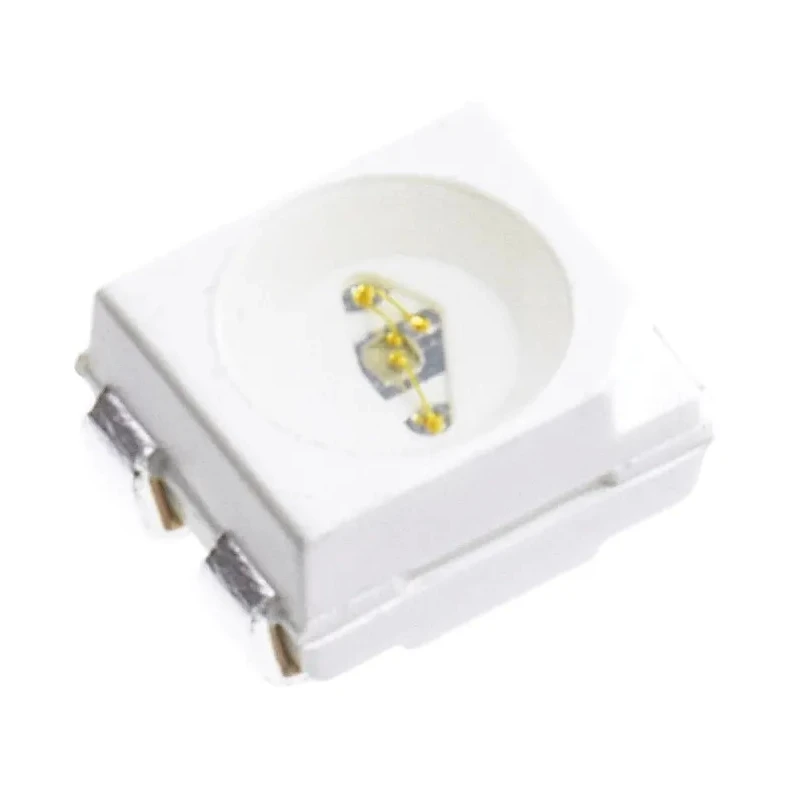

Broadcom HSMM-A400-U4QM2 is a surface mount green LED offering 3.8 V forward voltage and 114 mW maximum power dissipation in a PLCC 4 package. It combines AlGaInP and InGaN dice technologies delivering high brightness output with luminous intensity rated at 787 mcd and dominant wavelength of 525 nm. The round clear lens (3.2 x 2.8 x 1.8 mm) provides a wide 120° viewing angle, suitable for enhanced illumination performance.

This LED series is designed for demanding applications including automotive, industrial displays, office equipment backlighting, and electronic signage. It supports operation under harsh environmental conditions while maintaining reliable performance and efficiency. The device comes in tape and reel packaging, ready for high volume surface-mount assembly processes.

The HSMx series complies with RoHS directives, making it environmentally compliant and safe for industrial use. Its automotive-grade specifications expand its usability to vehicle instrumentation and signaling solutions. The industry standard PLCC-4 package facilitates compatibility with diverse electronic designs, ensuring ease of integration and thermal management.

Broadcom's LED exemplifies high luminance and optical efficiency due to advanced semiconductor materials. This product enables designers to achieve vivid green illumination with stable operation and endurance.

Applications encompass industrial manufacturing, automotive electronics, display backlighting, signage illumination, and home automation lighting. The robust build and consistency make the HSMM-A400-U4QM2 a preferred choice for professional electronic component requirements.

Operates at forward current up to 30 mA. Max power dissipation of 114 mW supports bright output. Clear round lens ensures uniform light dispersion. Wide viewing angle benefits signage and panel backlighting. Tape and reel packaging optimizes automated PCB assembly.

Compliant with RoHS environmental standards. Robust performance in automotive and industrial settings. Compact PLCC 4 package design supports diverse applications. Explore more LED devices and components in the Electronics & Electricals category at EnvMart for your industrial, manufacturing, or laboratory needs.
