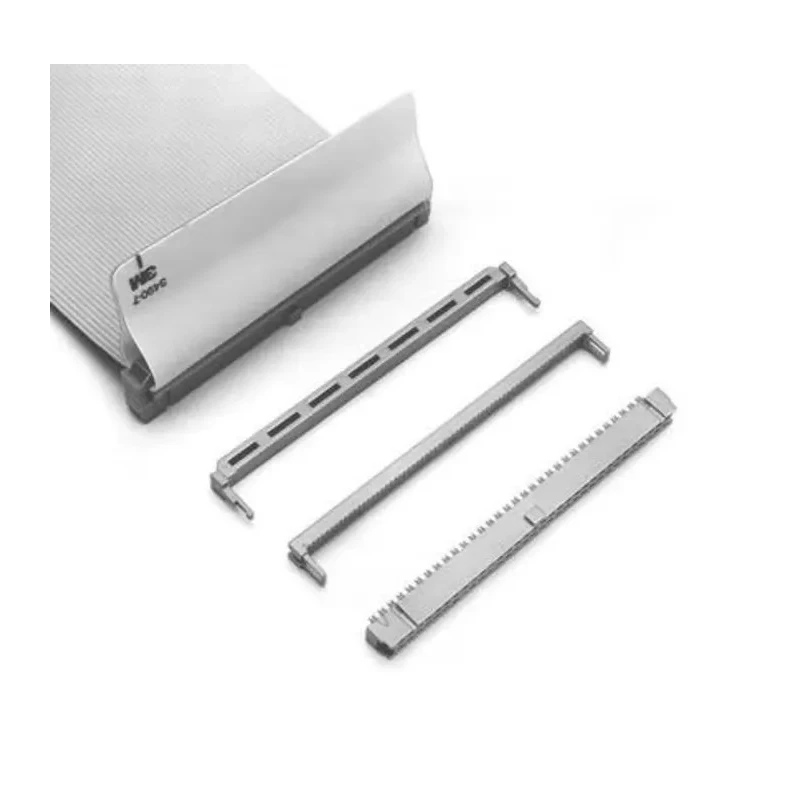

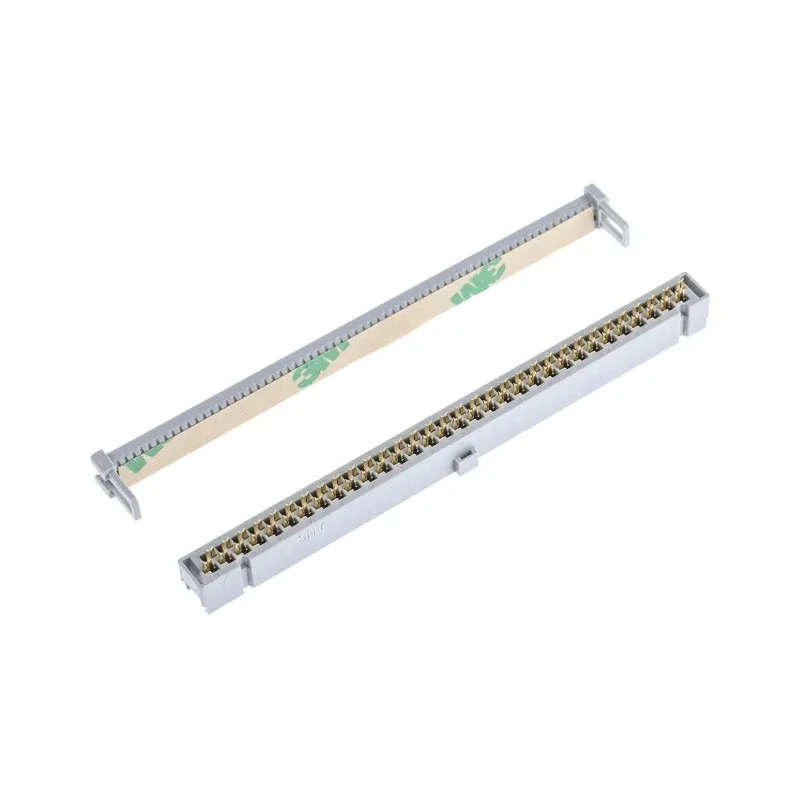

3M 64-Way IDC Connector Female for Cable, 2 Row, Right Angle, 1A, 1kV, Gold over Nickel Plating, Model 7964-6500EC

Free Delivery in India | Lowest Global Shipping Charges

3M 64-Way IDC Connector Female for Cable, 2 Row, Right Angle, 1A, 1kV, Gold over Nickel Plating, Model 7964-6500EC



Category IDC Connector Brand 3M Condition New

Specifications

Country of Origin	Japan
Voltage	1kV
Brand	3M
Orientation	Right Angle
Current	1A
Model	7964-6500EC
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	79
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
HARTING 64-Way IDC Connector Female for Cable, 2 RowBrand	HARTING

Key Features

This IDC connector is shrouded to provide extra protection and maintain contact integrity.
Gold over nickel plating improves electrical contact quality and longevity.
Brass contacts provide high conductivity and mechanical resilience.
Durable PBT housing offers rigidity and thermal resistance.
Supports operating temperature range from -55°C to 105°C for industrial use.
Right-angle cable mount facilitates compact design integration.
Compatible with 26 to 28 AWG wire sizes, both solid and stranded.
64 contacts arranged in 2 orderly rows with 2.54mm pitch spacing.

Product Description

3M 7964-6500EC 64-Way IDC Connector Female for Cable is a high-quality connector designed for industrial and electronic applications. With a 2-row right-angle configuration, this PIDC connector facilitates easy and secure connections to flat cables without stripping wires, ensuring efficient signal transfer and mechanical stability.

The connector features gold over nickel plated brass contacts to enhance conductivity and resist corrosion. Its robust Polybutylene Terephthalate housing ensures strength and thermal tolerance, supporting operating temperatures from -55°C to 105°C, making it suitable for diverse environments such as telecommunications, control panel assembly, and household appliances.

Designed to accommodate wire sizes between 26 and 28 AWG, both solid and stranded, it offers versatility for various wiring needs. The right-angle orientation allows installation in tight or awkward spaces, optimizing PCB layout and cable routing.

This 79 Series IDC Connector supports a voltage rating of 1kV and a current rating of 1A, making it ideal for power or signal applications within specified limits. The 2.54mm pitch ensures compatibility with standard industry flat cables and connectors.

Manufactured in Japan, this connector adheres to high manufacturing standards, assuring durability and long service life. It is a key component for secure, reliable, and neat cable termination in professional electronic assemblies.

This IDC Connector is shrouded to provide extra protection and maintain contact integrity. Gold over nickel plating improves electrical contact quality and longevity. Brass contacts provide high conductivity and mechanical resilience.

Durable PBT housing offers rigidity and thermal resistance. Supports operating temperature range from -55°C to 105°C for industrial use. Right-angle cable mount facilitates compact design integration. Compatible with 26 to 28 AWG wire sizes, both solid and stranded.

Voltage rating of 1kV and current rating of 1A suitable for typical electronic circuits. 64 contacts arranged in 2 orderly rows with 2.54mm pitch spacing.
