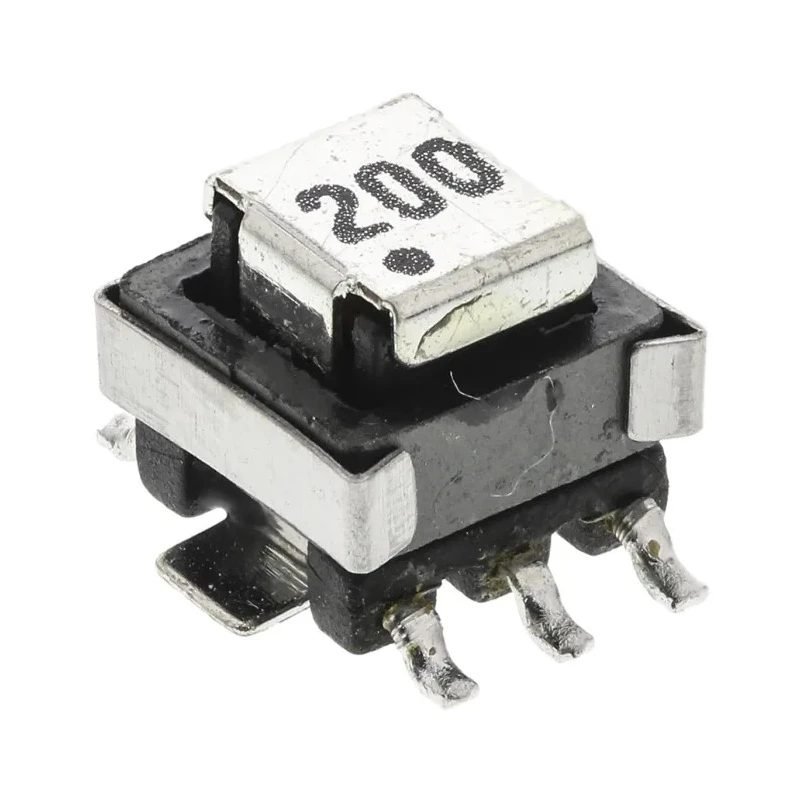

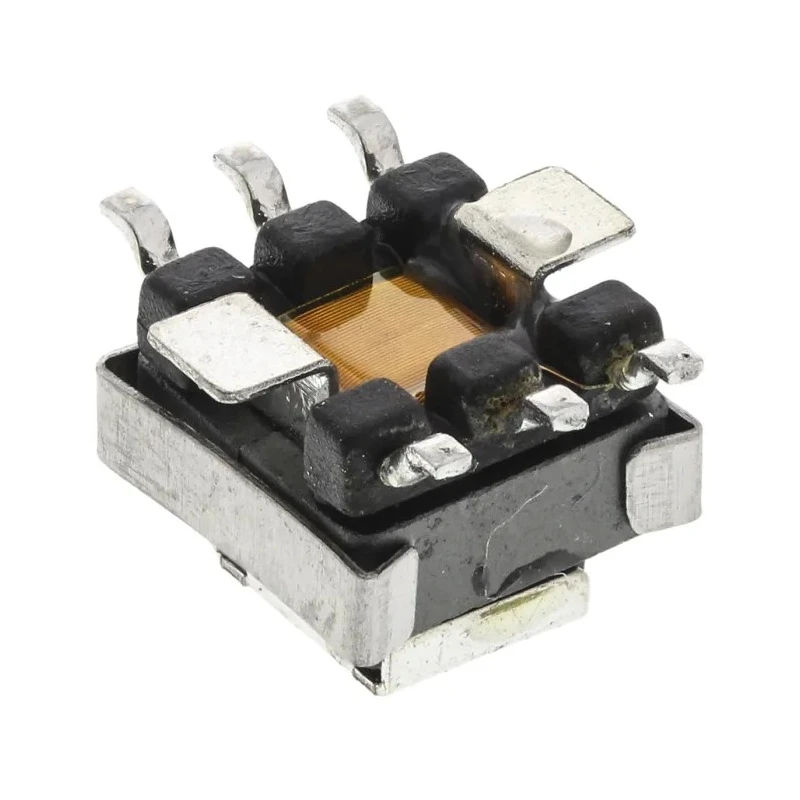

Murata Power Solutions 5300 Series Current Transformer 10A 1:200 53200C

Murata Power Solutions 53200C current transformer is a surface mount device from the 5300 Series designed for precise AC current sensing applications with a primary current rating of 10A and a turns ratio of 1:200.

This high frequency current transformer supports operation in frequency ranges from 50kHz to 500kHz, making it highly suitable for switched-mode power supplies, motor controls, and electronic lighting ballasts. Its surface mount design with J-STD-020C reflow capability facilitates easy automated assembly into circuit boards.

The transformer offers robust performance with low primary DC resistance of 7mΩ and a secondary DC resistance of 34mΩ, ensuring minimal losses. Its inductance of 8mH further enhances its current sensing accuracy. The device supports a wide operating temperature range from -40°C to 125°C, allowing reliable function in industrial and demanding environments.

With compact physical dimensions of 7.2mm in length, 8.3mm width, and 5.4mm depth, the 53200C transformer excels in fitting into compact areas without compromising performance. The wire terminal type allows easy and reliable electrical connectivity, improving production efficiency for industrial manufacturers.

The 5300 Series current transformers by Murata Power Solutions have no specific standards or approvals listed but are engineered for demanding industrial uses including process control, manufacturing, laboratory instrumentation, HVAC systems, and water treatment facilities.

The transformer is surface mount type suitable for SMT applications with J-STD-020C reflow compatibility. Operating temperature range from -40°C to 125°C ensures durability in harsh environments. Features low primary DC resistance of 7mΩ and secondary DC resistance of 34mΩ for efficient conduction.

Compact dimensions facilitate installation in space-constrained devices. Frequency operation range covers 50kHz to 500kHz for diverse industrial electronic applications. Wire terminal type connection supports automated insertion and secure wiring.

Inductance of 8mH optimizes transformer performance for accurate current monitoring. Designed for industrial, laboratory, HVAC, manufacturing, and water treatment use cases. Explore Murata Power Solutions Current Transformers and related products at EnvMart for quality and reliability in your electronic design projects.
