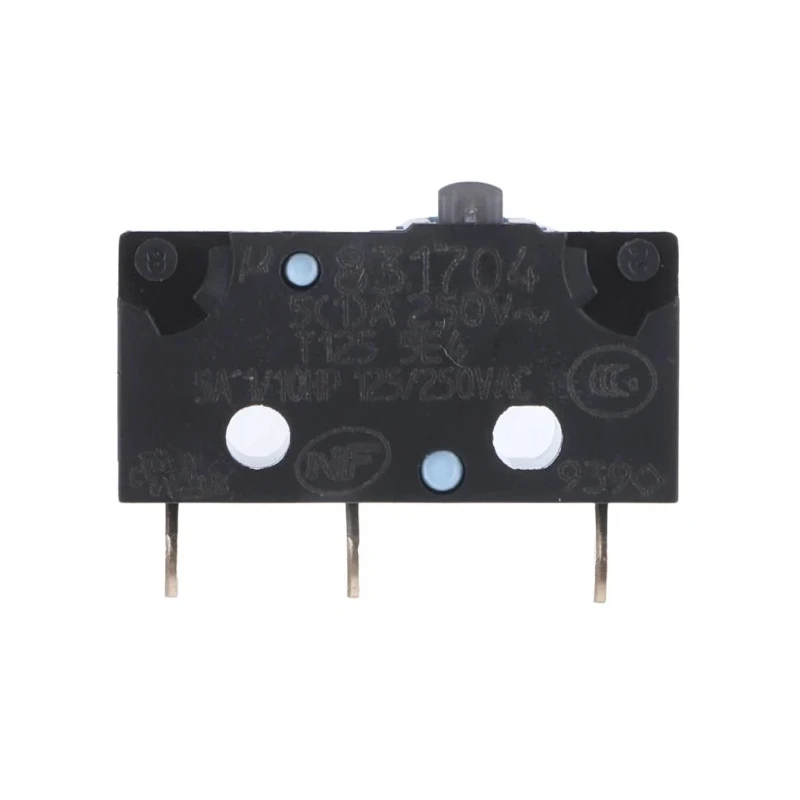

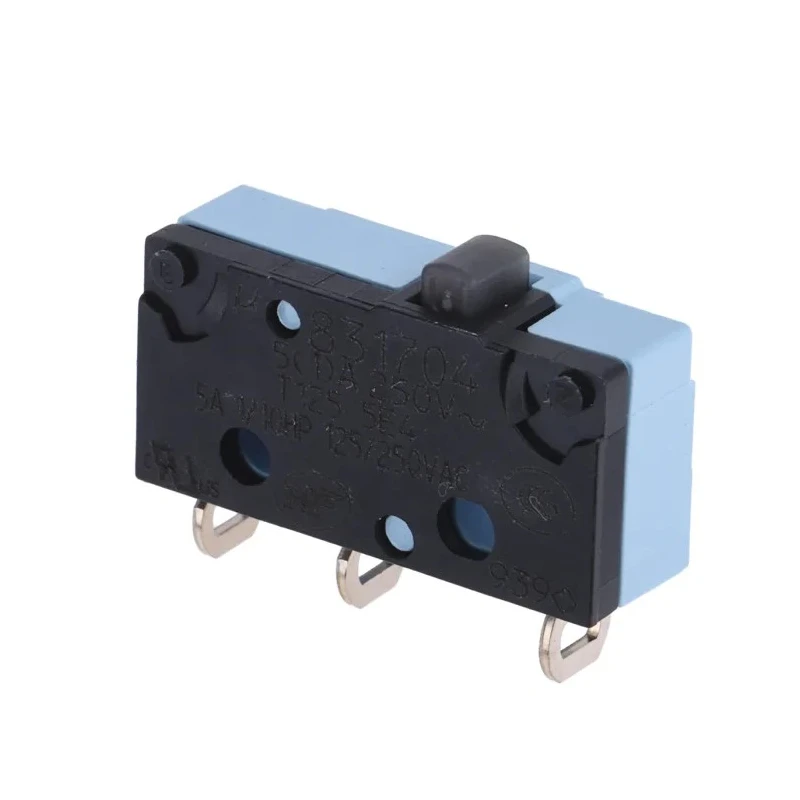

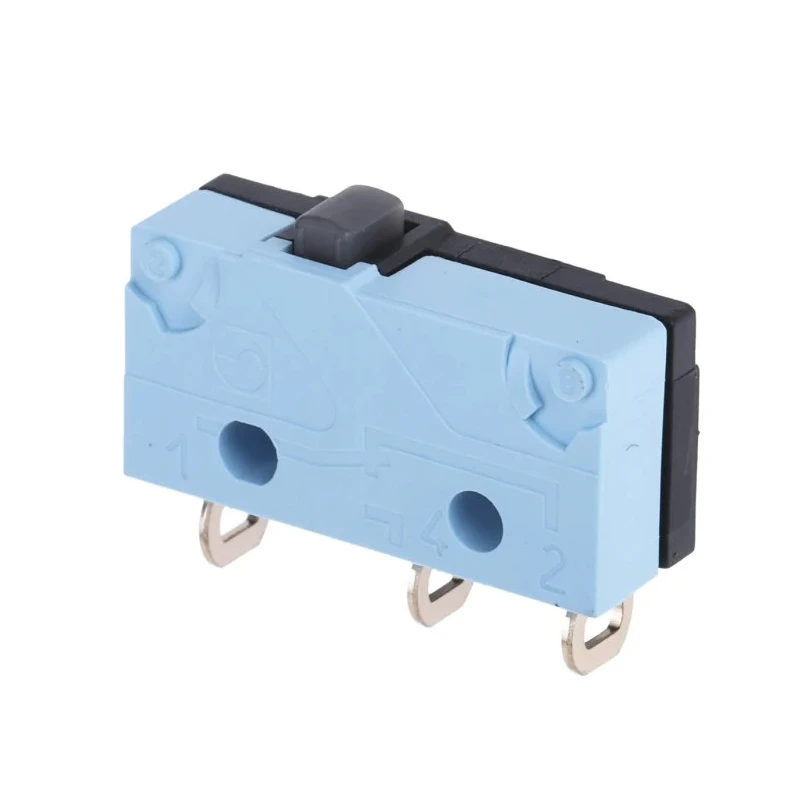

Crouzet Button Micro Switch, Solder Terminal, 5A, 250 V AC, SPDT, IP67 83170402

Crouzet 83170402 Button Micro Switch is a subminiature micro switch designed for precision control applications in industrial, electrical automation, and equipment environments. It features a button actuator and solder terminal connection optimized for quick and secure installation.

This micro switch is rated for 5A at 250 V AC with a single-pole double-throw (SPDT) contact configuration. The nickel silver contact material and polyamide housing ensure excellent durability and consistent electrical performance while maintaining a compact form factor.

The switch offers protection with an IP67 rating, making it ideal for use in conditions requiring complete protection against dust ingress and immersion in water up to a certain depth. Its actuation force is minimal at 0.6N, allowing for sensitive and reliable switching operations.

Operating across a temperature range from -20°C to 125°C, this component is suitable for harsh and varied environmental conditions. It boasts a superior mechanical life of 30 million operations, making it dependable for long-term industrial usage.

Certifications include approvals from BS, CSA, UL, UTE, and VDE, ensuring compliance with global safety and performance standards. It is certified for ATEX hazardous area applications, broadening its applicability in controlled environments.

This switch is manufactured in Mexico under stringent quality controls. It is widely applicable in industrial automation, manufacturing equipment, HVAC systems, and electrical control panels that demand high reliability and compliance.

The switch features a button actuator type with solder terminals for secure connections. Rated for 250 V AC operation with nickel silver contacts ensuring reliable electrical performance. Encased in a polyamide housing with an IP67 rating for protection against dust and water ingress.

Operates with a low actuation force of 0.6N suitable for precise control. Designed for a wide temperature range from -20°C to 125°C, suitable for various environments. Subminiature size provides compact integration into electrical assemblies.

High mechanical endurance with 30 million operations life expectancy. Certified and approved by BS, CSA, UL, UTE, VDE standards ensuring wide industrial compliance. Explore our range of Crouzet Micro Switches and related industrial electrical components on EnvMart for quality, reliability, and compliance in diverse applications.
