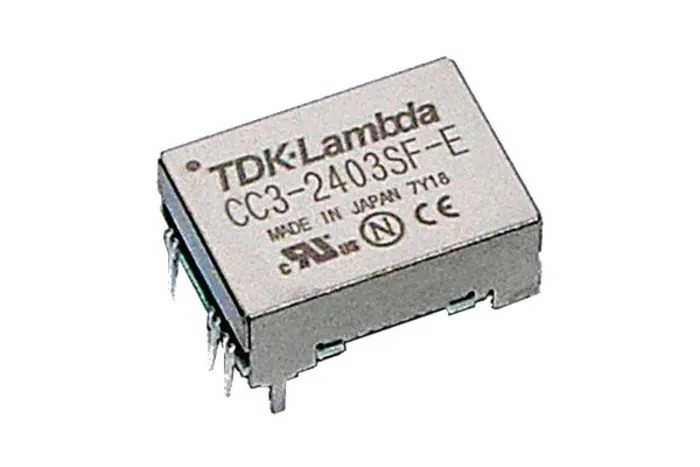

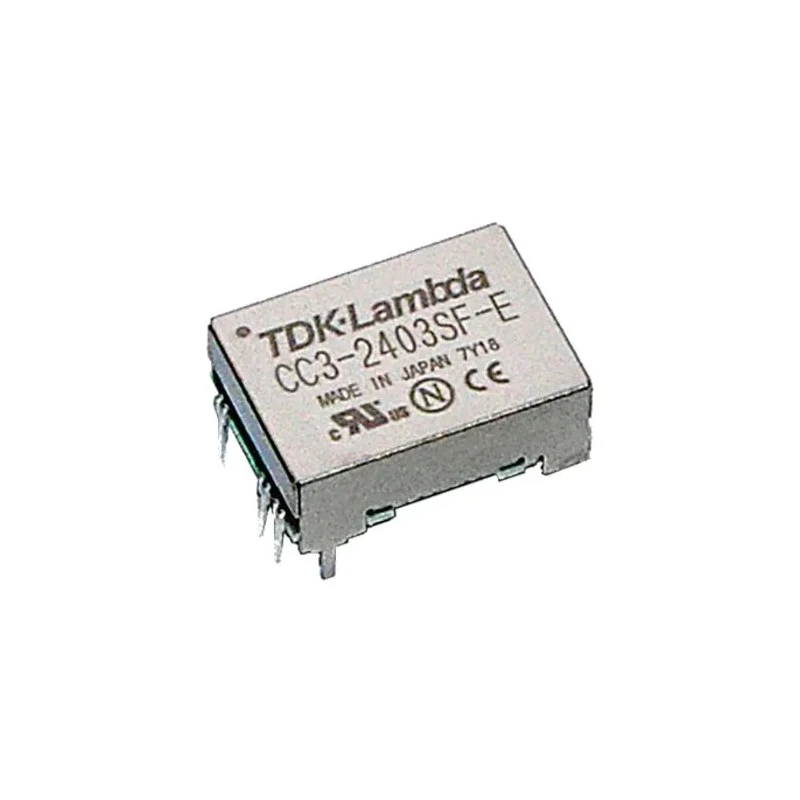

TDK-Lambda DC-DC Converter 3 W, 5V Output, 600mA, 76V/36V Input, Surface Mount, 7-Pin, -40°C to 85°C CC3-4805SR-E
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda CC-E DC/DC Converter, 5V dc/ 600 mA, 76 |
| Brand | TDK-Lambda |
| Efficiency | 0.79% |
| Length | 26.16mm |
| Model | CC3-4805SR-E |
| Depth | 16.6mm |
| Gross Weight | 4.5g |
| Width | 22.8mm |
| Mount Type | Surface |
| Series | CC-E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 76V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 36V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 500V |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Delivers regulated 5V DC output with 600mA maximum current.
- Supports a wide input voltage range from 36V to 76V DC for flexible system design.
- Compact surface mount package saves board space and suits automated assembly.
- Isolation voltage rated at 500V ensures safety and protection between input and output circuits.
- Operates reliably in environments from -40°C to 85°C ambient temperature.
- 7-pin configuration and industry-standard pinout for integration in PCB designs.
- High conversion efficiency reduces energy waste and heat generation.
- Suitable for telecom, industrial controls, embedded systems, and instrumentation.
Product Description
The TDK-Lambda CC3-4805SR-E is a high-reliability DC-DC converter delivering a stable regulated 5V DC output at up to 600mA (3W) from a wide input voltage range of 36V to 76V DC. This converter is engineered for installation via surface-mount technology (SMT) and features a space-saving, open-frame 7-pin package, making it especially suitable for densely populated PCBs in modern electronic designs.
Designed to provide galvanic isolation, the unit's 500V isolation voltage protects sensitive circuitry by separating the input and output, thereby enhancing operational safety and signal integrity in noise-prone environments. Its operation across industrial temperature extremes, from -40°C to 85°C, ensures dependable performance in challenging applications such as telecommunications infrastructure, industrial process equipment, embedded controllers, and sophisticated instrumentation.
The device boasts a robust feature set including high-efficiency power conversion, a 2:1 input range to facilitate design versatility, and RoHS compliance that supports global directives for hazardous substance reduction. The adjustment range for output voltage and the open-frame construction (without potting) make this converter adaptable and easy to deploy in both new designs and legacy upgrades.
With compact physical dimensions - 26.16mm length, 22.8mm width, and 16.6mm depth - and a lightweight construction of 4.5 grams, the CC3-4805SR-E is perfect for size- and weight-sensitive projects. The package provides one regulated output with precise control, ensuring a clean supply for downstream electronics. Integration into existing systems is straightforward thanks to its standard pinout and form factor.
Typical use cases include powering analog and digital sub-systems, isolated communication interfaces, and distributed sensor networks in environments where electrical separation and voltage conversion are essential.
Choose TDK-Lambda for advanced power conversion solutions trusted globally in demanding environments. For more DC-DC converters and related components, explore the complete range in the DC-DC Converter category and browse TDK-Lambda's portfolio on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a regulated output voltage of 5V DC with a maximum output current of 600mA, providing a total output power of 3W.
It supports a wide input voltage range from 36V to 76V DC, allowing for flexible system design.
The converter has compact dimensions of 26.16mm in length, 22.8mm in width, and 16.6mm in depth.
It features an isolation voltage rating of 500V, ensuring safety and protection between input and output circuits.
This converter operates reliably in ambient temperatures ranging from -40°C to 85°C, making it suitable for various environments.
It is designed for surface mount installation, making it suitable for automated assembly and saving board space.
The model boasts a conversion efficiency of 79%, which helps reduce energy waste and heat generation.
It is suitable for use in telecommunications, industrial controls, embedded systems, and instrumentation.
This unit provides one regulated output, ensuring a clean supply for downstream electronics.
The converter is RoHS compliant, supporting global directives for hazardous substance reduction.
It features a standard 7-pin configuration, facilitating easy integration into PCB designs.
The converter has a lightweight construction, weighing only 4.5 grams, making it ideal for size-sensitive projects.
