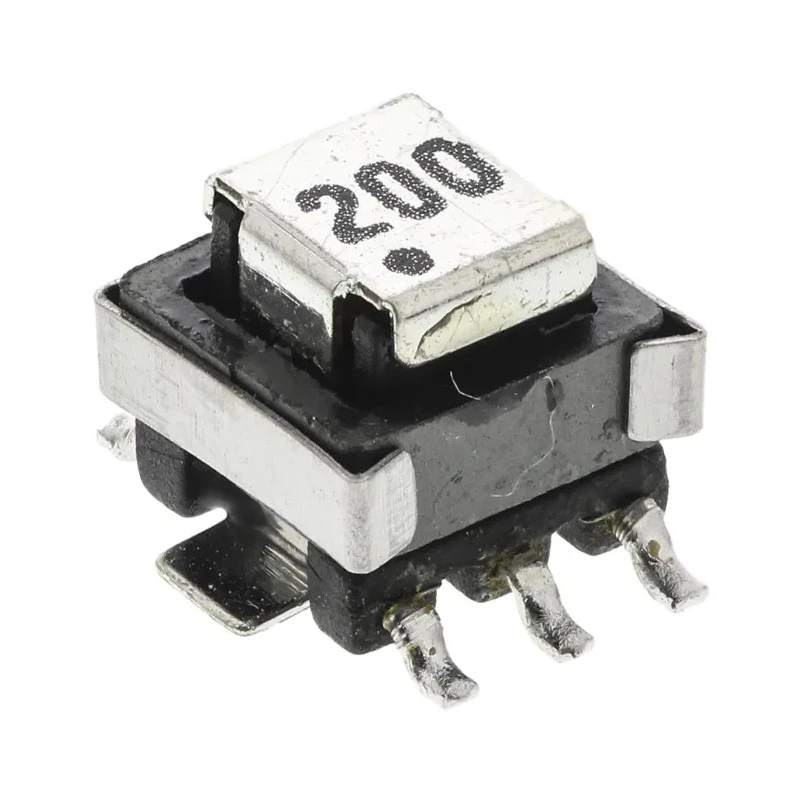

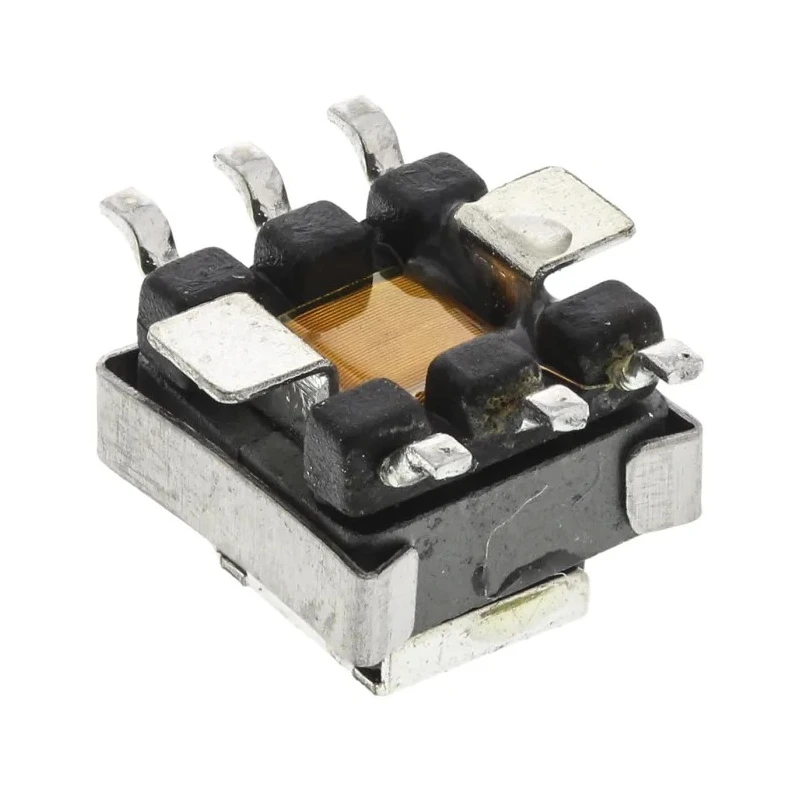

Murata Power Solutions 5300 Series Surface Mount Current Transformer 10A Primary Current 1:200 Turns Ratio 53200C

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 5300 Series Surface Mount Current Transformer 10A Primary Current 1:200 Turns Ratio 53200C

Name: Murata Power Solutions 5300 Series Surface Mount Current Transformer 10A Primary Current 1:200 Turns Ratio 53200C
Brand: Murata Power Solutions
SKU: 219468
Price: 1.88 USD
Availability: InStock



Category Current Transformer Brand Murata Power Solutions Condition New

Specifications

Country of Origin	India
Brand	Murata Power Solutions
Length	7.2mm
Model	53200C
Depth	5.4mm
Width	8.3mm
Mount Type	Surface
Series	5300
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Secondary current	1A
Terminal type	Wire
Inductance	8mH
Primary Current	10A
Minimum Operating Frequency	50kHz
Maximum Operating Frequency	500kHz
Turns Ratio	1:200
Turns Ratio1	200
Primary DC Resistance	7mΩ
Secondary DC Resistance	34mΩ

Key Features

Designed for monitoring AC currents in switched-mode power supplies and motor controls.
Compact surface mount design measuring 7.2mm length, 8.3mm width, and 5.4mm depth.
Wide operating temperature range from -40°C to 125°C for industrial environments.
High frequency operation from 50kHz to 500kHz suitable for electronic lighting ballast applications.
Low primary DC resistance of 7mΩ and secondary DC resistance of 34mΩ for efficient current sensing.
Inductance of 8mH enhances high frequency performance and accuracy.
Surface mount mounting type compliant with J-STD-020C reflow standards.

Product Description

Murata Power Solutions 53200C is a 5300 Series current transformer designed for precise AC current sensing in industrial and electronic applications. This surface mount device offers a primary current rating of 10A and a turns ratio of 1:200, making it ideal for switched-mode power supplies, motor control systems, and electronic lighting ballasts.

The current transformer features compact dimensions of 7.2mm length, 8.3mm width, and 5.4mm depth, allowing for space-saving PCB layouts. It operates reliably in a broad temperature range from -40°C up to 125°C, ensuring durability in harsh environments.

Its electrical characteristics include a primary DC resistance of 7mΩ, secondary DC resistance of 34mΩ, and inductance of 8mH. These parameters contribute to efficient current measurement and minimal power loss. The device supports operating frequencies between 50kHz to 500kHz, catering to high frequency sensing applications.

The terminal type is wire, facilitating straightforward connection to circuits, while the surface mount package adheres to J-STD-020C reflow soldering standards, allowing automated assembly.

Designed for AC current monitoring in industrial, laboratory, and electronic manufacturing applications. Suitable for integration into motor control units, power supplies, and lighting systems. Compact and robust for high-density PCB assembly.

Reliable performance across wide temperature and frequency ranges. Low losses ensure energy efficient operation. Easy wire terminal connection supports flexible installation. Surface mount mounting compatible with automated manufacturing processes.

High frequency transformers specialized for switched-mode power supplies.

This Murata Power Solutions current transformer is an essential component for engineers and technicians requiring precise current sensing in electronic control systems. Its compact size and industry-standard compliance make it a reliable choice for modern electrical equipment manufacturing.
