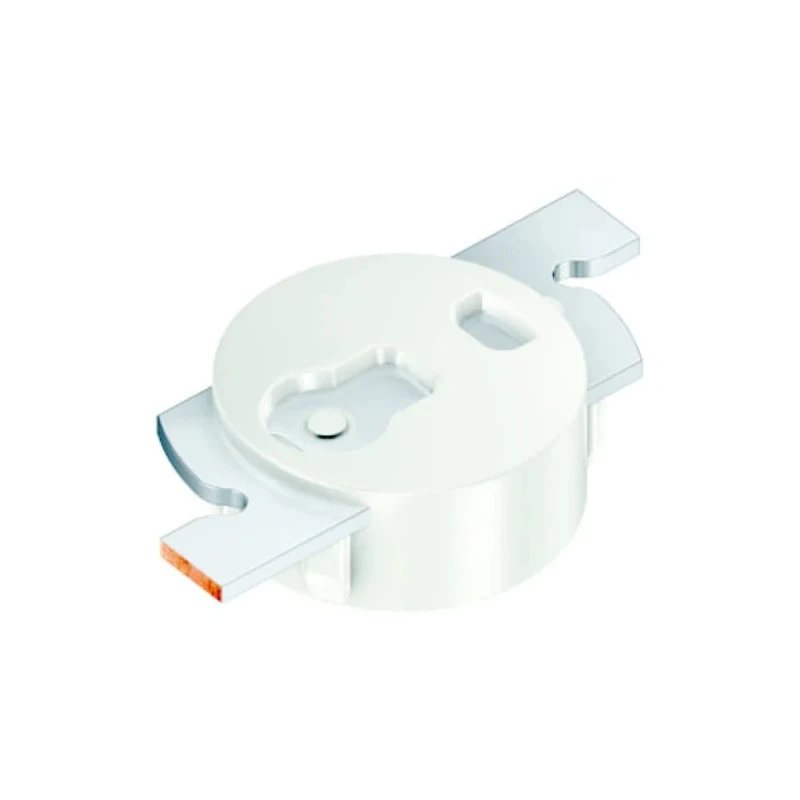

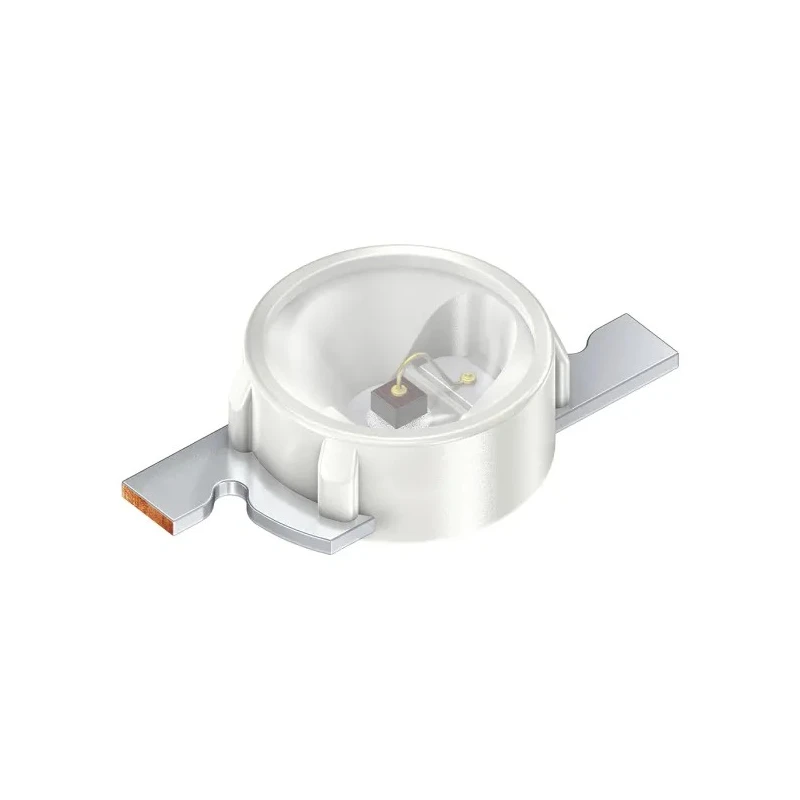

ams OSRAM 2.25V Red LED SMT Surface Mount PointLED LS P47F-U2AA-1-3A5A-F
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | ams OSRAM |
| Package | white SMT package, colourless clear resin |
| Model | LS P47F-U2AA-1-3A5A-F |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | PointLED |
| Maximum forward current | 50mA |
| Viewing angle | 120 ° |
| Package Type | SMT |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 633nm |
| Forward Voltage | 2.25V |
| Number of Pins | 2 |
| LED Luminosity | 710 mcd |
| Lens Dimensions | 3.4 x 1.9 x 0.82 mm |
| Lens Shape | Round |
| LED Luminous Flux | 1910 mLm |
| Chip technology | Thinfilm |
| Typ. Radiation | 120° (Lambertian emitter) |
| Corrosion Robustness Class | 3B |
Key Features
- The LED features a low forward voltage of 2.25V for efficient operation.
- Maximum forward current rating is 50mA ensuring reliable performance.
- The package type is surface mount technology (SMT) with tape & reel packaging for automated assembly.
- It has a viewing angle of 120° with round clear lens dimensions of 3.4 x 1.9 x 0.82 mm.
- The LED luminosity is 710 mcd with a luminous flux of 1910 mLm.
- Employs Thinfilm chip technology for superior illumination quality.
- The dominant wavelength is 633 nm, producing a vivid super red color.
- Designed with corrosion robustness class 3B, suitable for demanding environments.
Product Description
ams OSRAM LS P47F-U2AA-1-3A5A-F is a precision-engineered 2.25V red Light Emitting Diode available in a compact Surface Mount Technology (SMT) package designed for space-sensitive electronic applications. The device features a white SMT package with colourless clear resin and a round lens, measuring just 3.4 x 1.9 x 0.82 mm, with a low height of 0.775 mm, making it one of the smallest packages of its kind.
Utilizing Thinfilm chip technology, this PointLED emits a super red light at a dominant wavelength of 633 nm with a high brightness of 710 mcd and luminous flux of 1910 mLm. Its typical radiation pattern of 120° Lambertian emitter ensures wide and even light distribution.
This red LED is suited for a variety of applications including ambient light sensors, cluster and button backlighting, gaming and amusement devices, transportation lighting on planes and ships, and interior ambient illumination in white goods. Its corrosion robustness class 3B enhances durability in challenging environments.
Designed to meet RoHS regulations and manufactured in Malaysia, the LS P47F-U2AA-1-3A5A-F offers a reliable solution for industrial, commercial, and electronic component assemblies requiring efficient, high-quality red light emission with compact form factor.
The LED features a forward voltage of 2.25V and maximum forward current of 50mA. Packaging includes tape & reel for ease of automated placement on PCBs. The surface-mount package allows for low profile and space saving in designs.
Applications span ambient sensing, display backlighting, and automotive lighting solutions. The LED combines high luminous efficacy with corrosion resistance suitable for demanding industrial environments. Explore more advanced LED solutions and components from ams OSRAM at EnvMart for your electronics and lighting needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this red LED is 2.25V, which allows for efficient operation.
The maximum forward current rating for this model is 50mA, ensuring reliable performance during operation.
The viewing angle of this LED is 120°, providing a wide light distribution.
The lens dimensions for this LED are 3.4 x 1.9 x 0.82 mm, with a round shape.
This LED is packaged in tape & reel, which facilitates automated assembly.
The dominant wavelength of the emitted light is 633 nm, producing a vivid super red color.
This LED employs Thinfilm chip technology for superior illumination quality.
The luminous flux of this red LED is 1910 mLm, indicating its brightness output.
This model has a corrosion robustness class of 3B, suitable for demanding environments.
This LED is designed to meet RoHS regulations, ensuring compliance with environmental standards.
This LED is suitable for applications including ambient light sensors, backlighting, and transportation lighting.
The typical radiation pattern of this LED is a 120° Lambertian emitter, providing even light distribution.
