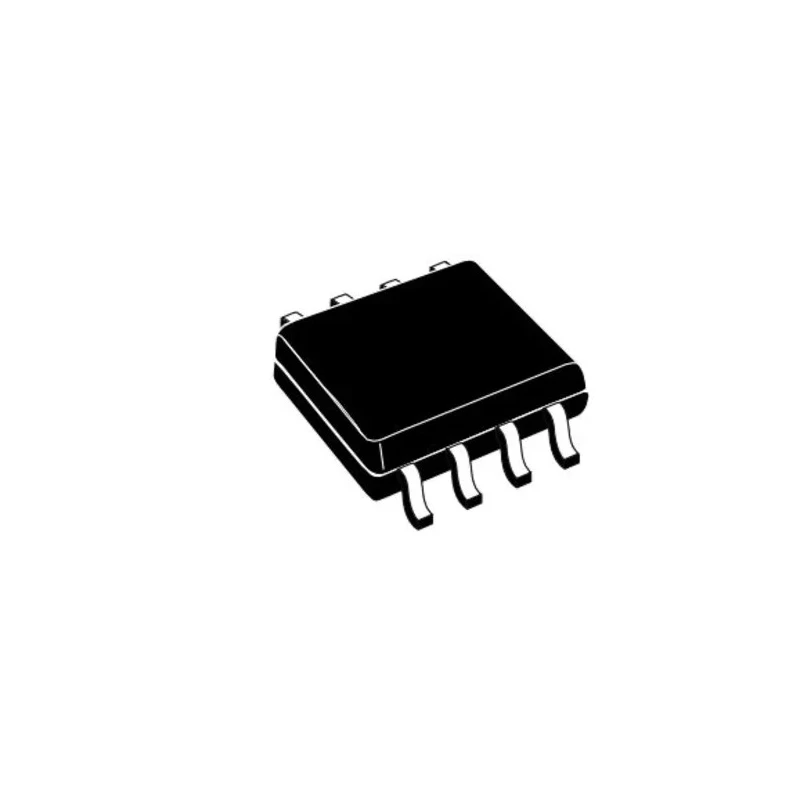

STMicroelectronics Operational Amplifier 560 MHz Gain Bandwidth Product 8-Pin SO-8 TSB612IYDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSB612IYDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSB612 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 560MHz |
| Input Bias Current | 15 nA |
| Vos - Input Offset Voltage | 1 mV |
| Slew Rate | 0.2V/μs |
| Input Offset Current | 10 nA |
Key Features
- Offers dual-channel configuration with 8 pins for compact circuit integration.
- Operates over a wide supply voltage range from 2.7V to 36V.
- Low input bias current of 15 nA ensures precision in signal amplification.
- Input offset voltage of 1 mV supports accurate voltage referencing.
- Slew rate of 0.2 V/μs enables moderate signal frequency responses.
- RoHS compliant and supports automotive standards AEC-Q100 and AEC-Q3.
- Wide operating temperature range from -40°C to 125°C suitable for harsh environments.
- Rail-to-rail output capability optimizes power efficiency and performance.
Product Description
STMicroelectronics TSB612IYDT operational amplifier is a dual-channel device designed for applications requiring wide supply voltage and high speed. With a gain bandwidth product of 560 MHz, this operational amplifier offers excellent speed and power consumption balance, making it ideal for high-frequency signal processing tasks. The device comes in a compact 8-pin SO-8 surface mount package measuring 5 mm in length, 4 mm in width, and 1.75 mm in height, suitable for space-restricted applications.
It supports a minimum supply voltage of 2.7V and a maximum of 36V, allowing flexibility in various electronic circuits. Its low input bias current of 15 nA and input offset voltage of 1 mV enable precise amplification, essential for accurate signal conditioning in industrial and automotive electronics systems. The slew rate of 0.2 V/μs assures a stable response across moderate frequency signals. The device complies with RoHS standards and meets automotive requirements with AEC-Q100 and AEC-Q3 certifications, ensuring reliability in automotive applications.
The TSB612IYDT operational amplifier operates reliably across a temperature range of -40°C to 125°C, making it suitable for use in challenging environmental conditions encountered in industrial, automotive, and manufacturing settings. The rail-to-rail output enables maximum signal swing and efficiency, enhancing its utility in power-sensitive designs. With a low quiescent current of under 125 μA per amplifier at 36V, it maintains power efficiency without compromising performance.
Dual channel with 8-pin SO-8 surface mount package. Wide supply voltage range from 2.7V to 36V for versatile applications. Low input bias current and offset voltage ensure high precision. Moderate slew rate of 0.2 V/μs for stable signal response.
Compliant with RoHS and automotive standards AEC-Q100 and AEC-Q3. Compact dimensions enable space-saving PCB designs. Operational temperature from -40°C to 125°C for harsh environments. Rail-to-rail output maximizes signal swing efficiency.
Power-efficient with less than 125 μA current consumption at max voltage.
This Operational Amplifier is suitable for applications in industrial machines, automotive electronics, manufacturing instrumentation, and laboratory equipment. Explore our extensive Electronics & Electricals category for more semiconductor components and high-quality amplification solutions through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 560 MHz, making it suitable for high-frequency signal processing tasks.
It operates over a wide supply voltage range from 2.7V to 36V, providing flexibility for various electronic circuits.
This model comes in a compact 8-pin SO-8 package measuring 5 mm in length, 4 mm in width, and 1.75 mm in height.
The input bias current is 15 nA, which helps ensure precision in signal amplification.
It operates reliably across a temperature range from -40°C to 125°C, suitable for harsh environments.
The slew rate is 0.2 V/μs, providing stable response across moderate frequency signals.
It complies with automotive standards AEC-Q100 and AEC-Q3, ensuring reliability in automotive applications.
The input offset voltage is 1 mV, which supports accurate voltage referencing.
This operational amplifier uses a surface mount type, making it suitable for compact circuit integration.
The quiescent current consumption is under 125 μA per amplifier at 36V, maintaining power efficiency.
It is suitable for applications in industrial machines, automotive electronics, manufacturing instrumentation, and laboratory equipment.
The device is RoHS compliant, ensuring it meets environmental standards for electronic components.
