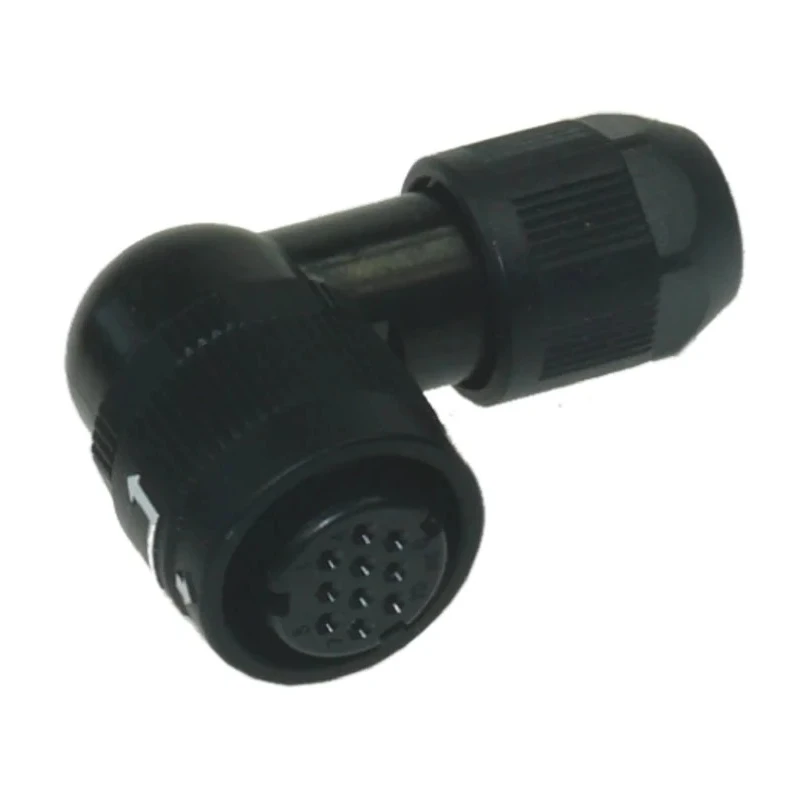

Hirose Miniature Circular Connector 10 Contacts Cable Plug, Female, IP67, IP68, 200/250V, 3A, Bayonet Lock HR34B
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200, 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 3A |
| Model | HR34B |
| IP Rating | IP67, IP68 |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Bronze |
| Series | HR34B |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 10 |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Shell Size | 12 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Plug/Socket | Plug |
Key Features
- Supports a current rating of 3A and voltage up to 250V.
- Durable aluminium housing with gold-plated bronze contacts.
- Right-angle orientation with secure cable strain relief.
- Operates between -25°C and 125°C for harsh environments.
- RoHS compliant with push-on bayonet lock and vibration resistance.
- Ideal for servo motors, industrial equipment, lighting, and robotics.
- Oil-proof and waterproof IP68 rated for rugged conditions.
- Offers secure tactile click mating and three-point contact protection.
Product Description
Hirose HR34B-12WLPK-10S is a miniature circular connector plug designed for rugged industrial applications. It features 10 gold-plated bronze contacts arranged in a pole format of 10 and provides reliable electrical connections with a current rating of 3A and voltage rating of up to 250V.
The aluminium housing provides durability and resistance against harsh environments, complemented by an IP67 and IP68 waterproof and oil-proof rating ensuring performance in wet and oily conditions.
The plug uses a push-on bayonet locking mechanism that promotes fast, secure mating and unmating by rotating the locking collar. Its right-angle orientation and configurable cable strain relief assist in application flexibility and cable management.
Designed to operate efficiently from -25°C to 125°C, this connector is suitable for diverse use cases including servo motor construction, industrial machinery, lighting systems, portable medical equipment, and robotic technology.
Its robust design includes high resistance to vibrations and an excellent tactile click to confirm connection security. This connector set supports high environmental protection with no contact damage risks due to mating guide keys at three points.
This Hirose HR34B series connector is RoHS compliant and ideal for industrial and manufacturing HVAC, water treatment, and commercial electronics use. EnvMart customers can browse this Hirose Industrial Circular Connector amongst a wide selection of rugged connectors tailored for electronics and electrical assembly needs.
