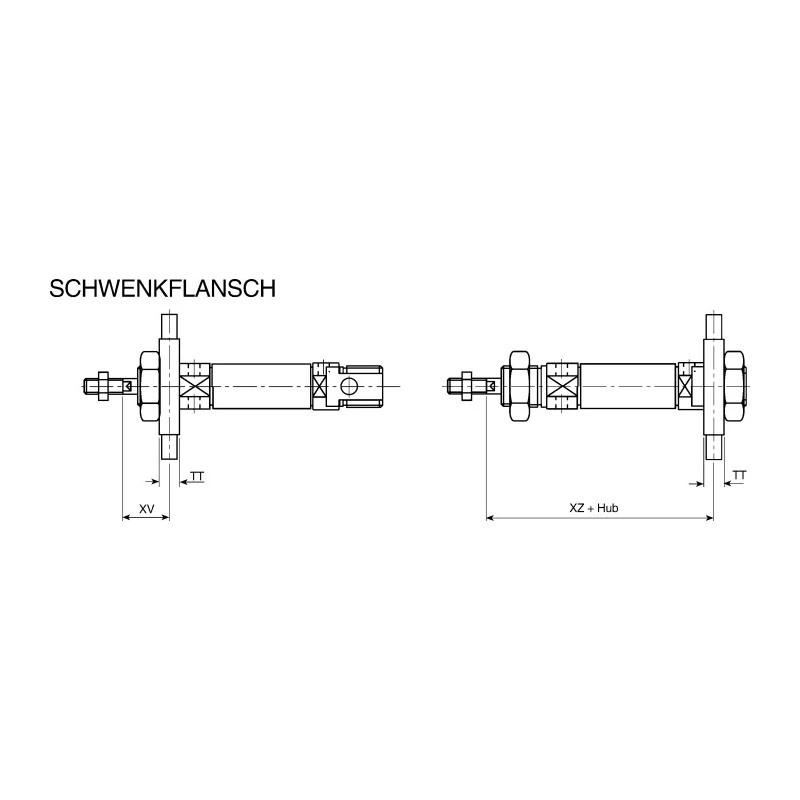

SMC Trunnion Bracket for Pneumatic Cylinder Mounting to Fit 20 to 25 mm² Bore Size C85T25

Free Delivery in India | Lowest Global Shipping Charges

SMC Trunnion Bracket for Pneumatic Cylinder Mounting to Fit 20 to 25 mm² Bore Size C85T25



Category Pneumatic Cylinder & Actuator Accessories Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Model	C85T25
Sub Type	Trunnion Bracket
For Use With	Mounting Bracket
Standards/Approvals	ISO 6432
Compatible Bore Size	20 to 25 mm²

Key Features

Specifically designed to fit mounting brackets with 20 to 25 mm² bore size.
Manufactured to conform with ISO 6432 standards for precision and reliability.
Constructed for use with SMC C85 series pneumatic cylinders featuring stainless steel barrels and piston rods.
Corrosion-resistant design suitable for demanding industrial environments.
Ensures secure and accurate mounting for single and double-acting pneumatic cylinders.
Offers exceptional service life with abrasion-resistant and replaceable piston rod seals.
Designed for environments with high dust exposure due to unique dust seal features.
Allows operation at speeds up to 1500 mm/s with low friction elastomer cushion seals.

Product Description

SMC C85T25 Trunnion Bracket is a specialized mounting accessory engineered for pneumatic cylinders, primarily designed to fit bore sizes ranging from 20 to 25 mm². This bracket provides secure and stable mounting solution for SMC's C85 series pneumatic cylinders used in various industrial applications.

The C85 pneumatic cylinders with which this trunnion bracket is compatible are notable for their corrosion-resistant construction, featuring stainless steel barrels and piston rods, along with double-swaged anodised aluminium end caps. These cylinders conform to the ISO 6432 and CETOP RP52P standards, ensuring high reliability and performance.

Constructed with durability in mind, the trunnion bracket supports pneumatic cylinders in demanding environments, including places with high dust exposure. This is achievable thanks to the abrasion-resistant seals and a specially-designed dust seal incorporated in the cylinder design, which is complemented by the reliable mounting provided by this bracket.

Designed for ease of installation, the mounting uses large spanner flats for tight and precise fixing. The bracket ensures 100% mounting repeatability accuracy and supports both single-acting and double-acting C85 pneumatic cylinders.

Applications for this trunnion bracket include use in industrial automation systems, manufacturing machinery, fluid power tools, and equipment requiring precise pneumatic actuator positioning and mounting.

Specifically designed to fit mounting brackets with 20 to 25 mm² bore size. Manufactured to conform with ISO 6432 standards for precision and reliability. Constructed for use with SMC C85 series pneumatic cylinders featuring stainless steel barrels and piston rods.

Corrosion-resistant design suitable for demanding industrial environments. Ensures secure and accurate mounting for single and double-acting pneumatic cylinders. Offers exceptional service life with abrasion-resistant and replaceable piston rod seals.

Designed for environments with high dust exposure due to unique dust seal features. Allows operation at speeds up to 1500 mm/s with low friction elastomer cushion seals. For comprehensive pneumatic cylinder mounting solutions, explore the SMC range of brackets and accessories available through EnvMart.

Explore more products in our Pneumatic Cylinder & Actuator Accessories category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is designed to fit mounting brackets with bore sizes ranging from 20 to 25 mm².

It is manufactured to conform with ISO 6432 standards, ensuring precision and reliability in its application.

The bracket is constructed for use with SMC's C85 series pneumatic cylinders, supporting both single-acting and double-acting configurations.

The compatible pneumatic cylinders feature stainless steel barrels and piston rods, along with double-swaged anodised aluminium end caps.

It allows operation at speeds up to 1500 mm/s, utilizing low friction elastomer cushion seals for enhanced performance.

The design includes large spanner flats for tight and precise fixing, ensuring 100% mounting repeatability accuracy.

Yes, it is designed for use in environments with high dust exposure, featuring unique dust seal features to protect the pneumatic cylinders.

The trunnion bracket is manufactured in France.

It is suitable for applications in industrial automation systems, manufacturing machinery, and fluid power tools requiring precise pneumatic actuator positioning.

The cylinders offer exceptional service life with abrasion-resistant and replaceable piston rod seals, enhancing their durability in demanding conditions.

The installation is designed for ease, utilizing large spanner flats that facilitate tight and precise fixing of the bracket to the pneumatic cylinder.

The model number for this trunnion bracket is C85T25.
