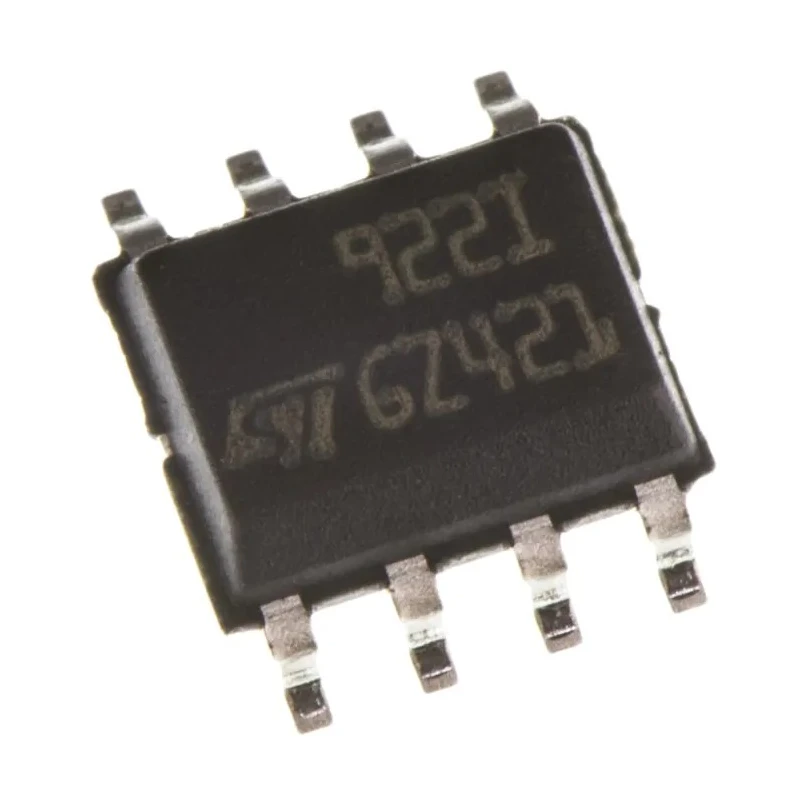

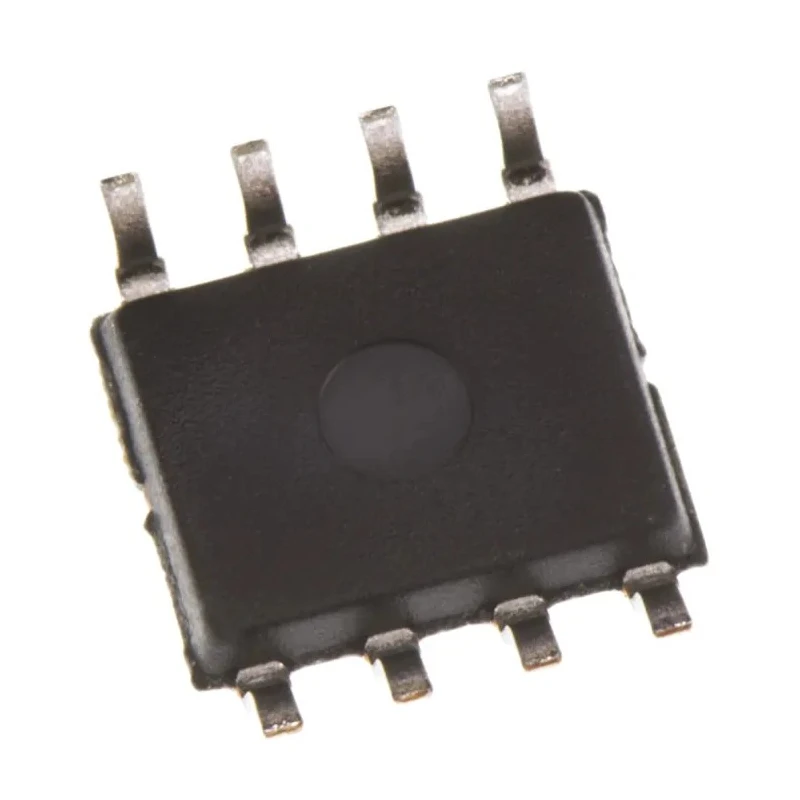

STMicroelectronics Operational Amplifier Dual Channel 2-Channel 8-Pin SOIC 4 MHz 12V TS922IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS922IDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Low Noise | 9 nV/√Hz |
| Series | TS922 |
| Output Current | 80mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 1.3V/μs |
| High output current | 80 mA (able to drive 32 Ω loads) |
| Input Offset Current | 30 nA |
Key Features
- Dual channel operational amplifier optimized for 3V to 12V operation.
- High-speed bandwidth of 4 MHz ensures precise amplification with low distortion.
- 8-pin SOIC surface mount package allows compact PCB design.
- Low input offset voltage of 5 mV and input bias current of 100 nA for accurate signal processing.
- High output current rating of 80 mA capable of driving 32 Ω loads.
- Wide operating temperature range from -40°C to 125°C for reliable industrial applications.
- Compliant with RoHS standards and meets AEC-Q100 automotive quality requirements.
- Low noise voltage density of 9 nV/√Hz suitable for high fidelity audio applications.
Product Description
STMicroelectronics TS922IDT is a high-performance dual channel operational amplifier designed for versatile electronic applications requiring precise signal amplification. With a gain bandwidth product of 4 MHz and a low noise figure of 9 nV/√Hz, it excels in audio, instrumentation, and general-purpose amplification tasks. The device is housed in a compact 8-pin SOIC surface mount package that facilitates easy integration into densely packed electronic boards.
It operates efficiently in supply voltages ranging from 3 V to 12 V, making it adaptable to a wide range of power sources. The STMicroelectronics TS922IDT features a low input offset voltage of 5 mV and an input bias current of 100 nA which ensure minimal signal distortion and high accuracy in low-level signal processing. The high output current capability of 80 mA allows driving low impedance loads up to 32 Ω effectively.
Engineered for robustness, the amplifier supports an industrial temperature range from -40 to 125 degrees Celsius, meeting the stringent requirements of automotive and industrial applications. It is compliant with RoHS directives and meets the AEC-Q100 automotive standard, assuring high reliability and quality.
The amplifier’s slew rate of 1.3 V/μs and input offset current of 30 nA further enhance its performance in dynamic signal environments. Its compact form factor with dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height allows integration into space-limited designs without compromising functionality.
Dual channel, low noise operational amplifier for precision electronics. Wide operating voltage and temperature ranges suitable for automotive and industrial sectors. Low input offset voltage and bias current for high accuracy applications.
High output current to support low impedance loads. Compact 8-pin SOIC surface mount package for efficient PCB utilization. Certified RoHS compliant and meets automotive quality standards (AEC-Q100).
This operational amplifier is ideal for industrial, automotive, audio equipment, instrumentation, and other commercial electronic device manufacturing. It offers reliable, high-speed, and accurate amplification and signal conditioning. Browse EnvMart for similar Operational Amplifiers and semiconductor components from STMicroelectronics and other top brands.
