Nisshinbo Micro Devices Linear Voltage Regulator 1-Channel 9V 1.5A TO-252 3-Pin NJM7809DL1A-TE1

Free Delivery in India | Lowest Global Shipping Charges

Nisshinbo Micro Devices Linear Voltage Regulator 1-Channel 9V 1.5A TO-252 3-Pin NJM7809DL1A-TE1

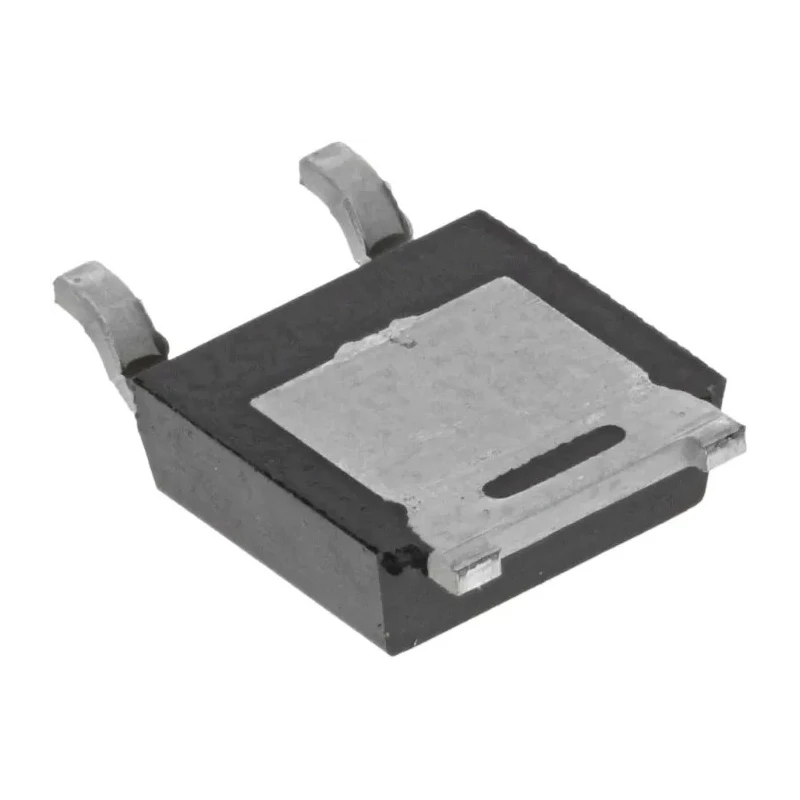

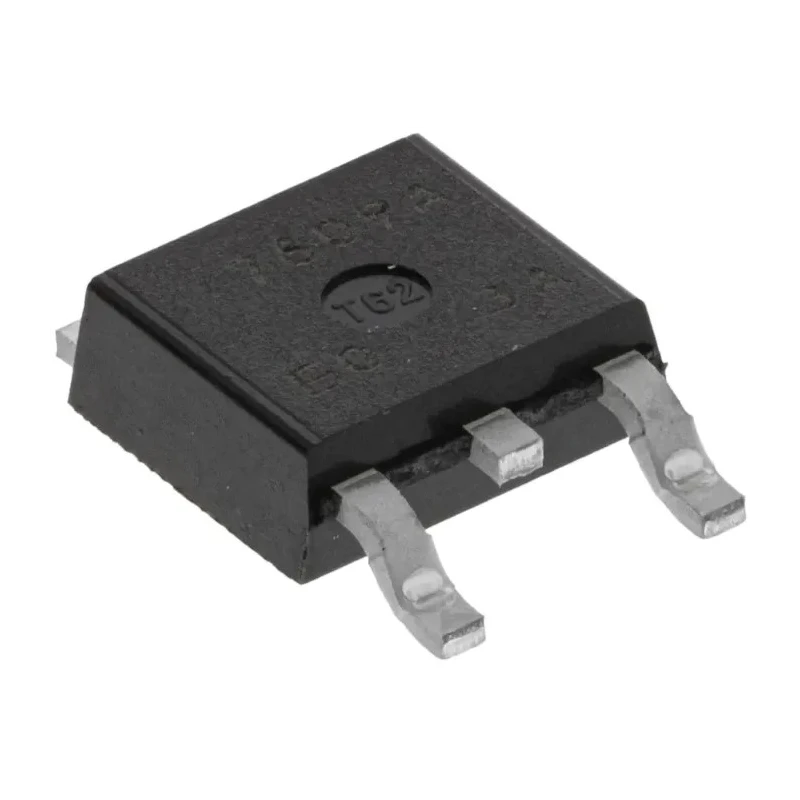

Name: Nisshinbo Micro Devices Linear Voltage Regulator 1-Channel 9V 1.5A TO-252 3-Pin NJM7809DL1A-TE1
Brand: Nisshinbo Micro Devices
SKU: 219110
Price: 1.17 USD
Availability: InStock



Category Voltage Regulator Brand Nisshinbo Micro Devices Condition New

Specifications

Country of Origin	India
Brand	Nisshinbo Micro Devices
Height	2.29mm
Length	6.54mm
Model	NJM7809DL1A-TE1
Width	6.04mm
Mount Type	Surface
Output type	Fixed
Series	NJM78xx
Power Rating	1W
Output Current	1.5A
Maximum Operating Temperature	85°C
Package Type	TO-252
Load Regulation	180 mV
Minimum Operating Temperature	-40°C
Polarity	Positive
Regulator Type	Linear Voltage
Number of outputs	1
Maximum Input Voltage	35V
Output Voltage	9V
Quiescent Current	4.3mA
Line Regulation	180 mV
Pin Count	3

Key Features

Provides stable 9V fixed output voltage for reliable power supply.
Supports 1.5A maximum output current suitable for various electronic circuits.
Packaged in compact TO-252 3-pin surface mount for easy PCB integration.
Incorporates internal thermal overload protection and short circuit current limit.
Operating temperature range from -40°C to 85°C ensures durability in diverse conditions.
Low quiescent current of 4.3mA optimizes power consumption.
Linear voltage regulator type ensures low noise and excellent ripple rejection.
Ideal for on-card regulation in electronics and power management IC applications.

Product Description

Nisshinbo Micro Devices NJM7809DL1A-TE1 is a high-performance linear voltage regulator designed for use in electronic circuits requiring a stable 9V fixed output voltage. This 1-channel voltage regulator is built using bipolar technology and packaged in a compact TO-252 3-pin surface mount form factor, providing easy integration into PCB layouts.

Its 1.5A maximum output current capacity makes it suitable for power management in various industrial, laboratory, and commercial electronic devices. The NJM7809DL1A-TE1 features internal protection mechanisms including thermal overload protection and current limiting, which improve reliability and prevent damage in case of faults.

This device operates within a wide temperature range from -40°C to 85°C, making it appropriate for use across diverse environmental conditions encountered in industrial and manufacturing applications. The regulator’s low quiescent current of 4.3mA enhances efficiency by reducing unnecessary power drain during standby.

Additional advantages include excellent line and load regulation of 180 mV, delivering consistent voltage stability. Its linear regulator architecture ensures low noise and good ripple rejection, which is critical for sensitive electronic systems.

Stable 9V fixed voltage output with 1.5A output current. TO-252 3-pin package for surface mounting on PCBs. Internal thermal overload and short-circuit protection enhance device safety. Operates in temperature range -40°C to +85°C suitable for industrial environments.

Low quiescent current of 4.3mA improves power efficiency. Linear voltage regulator type ensures minimal output noise. Ideal for on-card power regulation in communications, computing, and control equipment.

Set within the Electronics & Electricals category under Power Management ICs and Voltage Regulators, this product serves key uses in manufacturing, laboratory research, and commercial electronics power supply systems. Its reliable output and built-in safety features help ensure stable operation and device protection across demanding applications.
