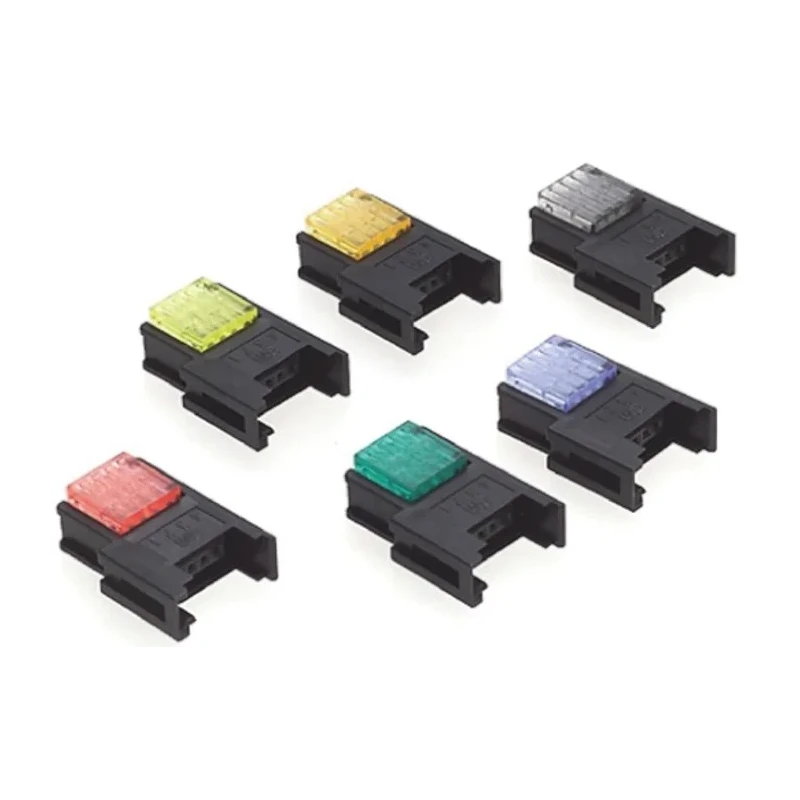

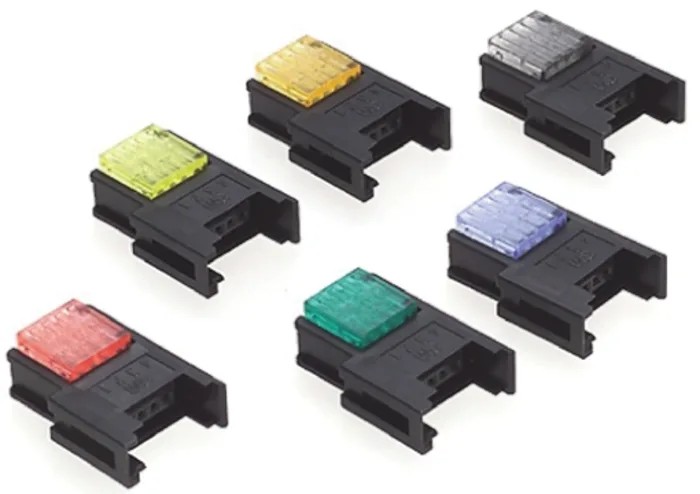

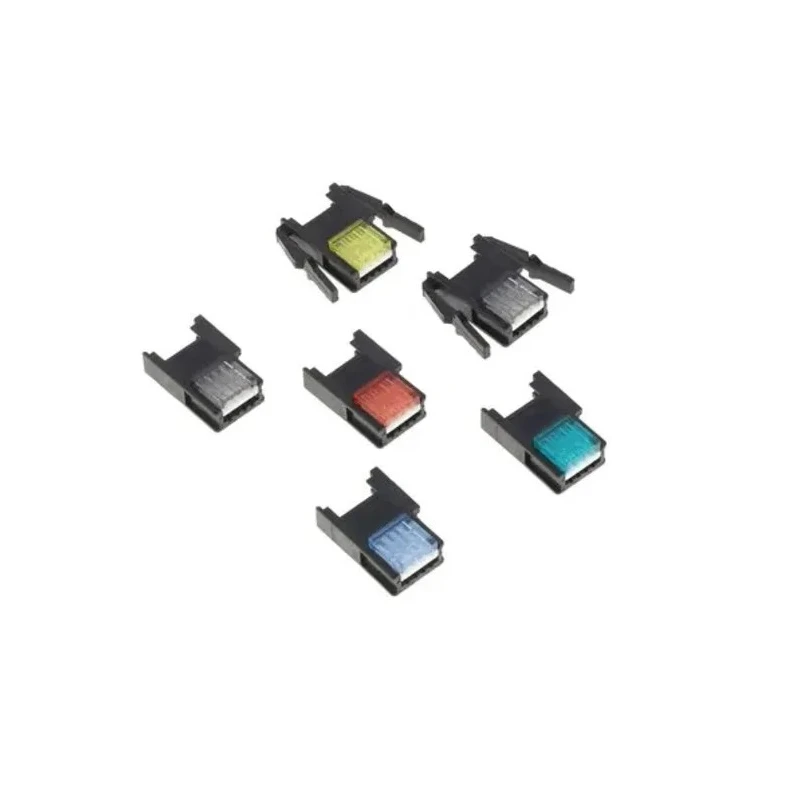

3M 4-Way IDC Connector Female for Cable, 1 Row 37304-A206-00E MB

Free Delivery in India | Lowest Global Shipping Charges

3M 4-Way IDC Connector Female for Cable, 1 Row 37304-A206-00E MB



Category IDC Connector Brand 3M Condition New

Specifications

Country of Origin	Japan
Voltage	32V ac
Brand	3M
Orientation	Straight
Current	3A
Model	37304-A206-00E MB
Mount Type	Cable
Housing Material	Thermoplastic
Contact Material	Copper
Series	373
Termination Type	IDC
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Number of Rows	1
Pitch	6.5mm
Contact Plating	Gold over Nickel
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Features a shrouded, straight orientation with gold over nickel plating for enhanced conductivity.
Rated for 3A current and 32V AC voltage, suitable for industrial and electronic applications.
Compatible with wire diameters between 26 and 20 AWG for versatility.
Constructed with copper contacts and durable thermoplastic housing for longevity.
Operates reliably between -20°C and 85°C temperature range.
Includes integrated wire retention for secure termination without wire stripping.
Capable of mating up to 300 times to reduce waste and maintenance costs.
Designed for use in LED lighting, pressure sensors, and food packaging industries.

Product Description

3M 37304-A206-00E MB is a 4-way IDC connector designed for easy and reliable connection of ribbon cables to PCBs. It features a female connector with one row of contacts, suitable for applications requiring up to 3A current and 32V AC voltage. The shrouded design and gold over nickel plating ensure secure and corrosion-resistant contact, ideal for industrial control and electronic systems.

The connector's thermoplastic housing provides resistance to wear and corrosion, making it durable in demanding environments. Its integrated wire retention cover holds wires firmly during termination, eliminating the need to strip wires manually. This product supports wire diameters from 26 to 20 AWG, enhancing its versatility across multiple wiring scenarios.

Rated for a temperature range from -20°C to 85°C, this IDC connector withstands typical operating conditions in industrial, manufacturing, and HVAC systems. The connector can be mated up to 300 times, significantly reducing waste in maintenance and replacement. Lightweight and requiring only standard pliers for installation, it facilitates quick and efficient wiring operations.

Shrouded IDC wiremount socket with integrated cable retention. High mating cycles provide reliable connection in sensor control and automation applications. Gold over nickel plated copper contacts ensure signal integrity and corrosion resistance.

Compact design suitable for tight installation spaces. Applicable in LED lighting, pressure sensing, food packaging, and industrial control. No special tooling needed; uses standard pliers for termination. Supports multiple wire sizes enhancing application flexibility.

Thermoplastic housing for enhanced durability in harsh environments.

This 3M IDC connector is a trusted choice for high-performance electronic and industrial connection needs. Explore similar IDC Connectors and other 3M products on EnvMart for wiring and connector solutions.
