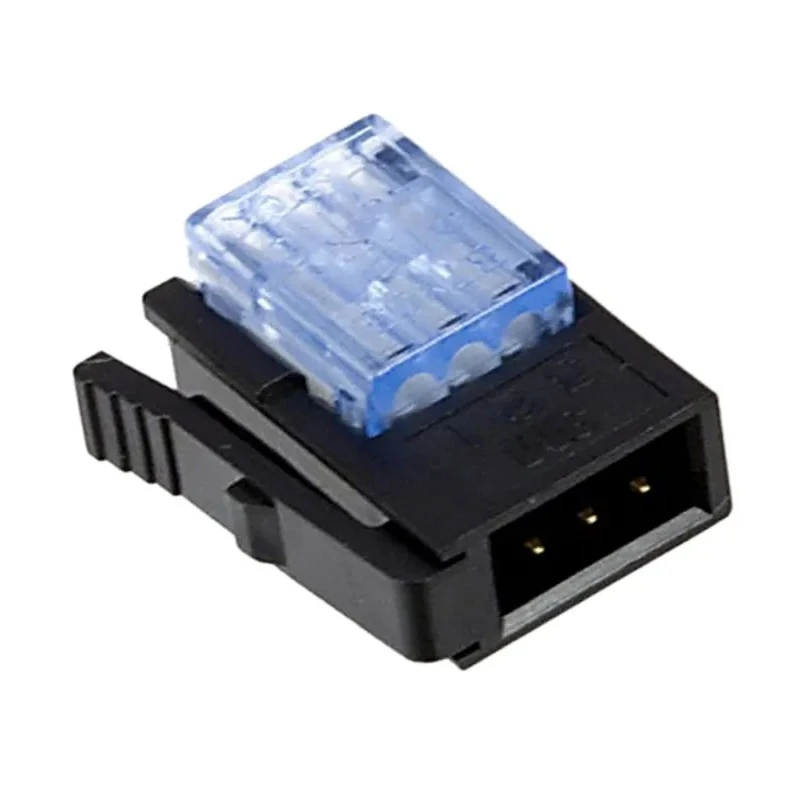

3M 3-Way IDC Connector Male for Cable, 1 Row 37103-A165-00E MB

3M 37103-A165-00E MB 3-Way IDC Connector Male for Cable, 1 Row is a high-quality IDC Connector designed for efficient and secure cable connections in various electronic applications. Operating at 32V AC with a maximum current rating of 3A, this connector supports a 2mm pitch and features three contacts arranged in a single row.

The contacts are made from copper with gold plating over nickel, providing excellent conductivity and resistance against corrosion. This design contributes to reliable and durable electrical connections.

The housing is made of thermoplastic material that offers flame retardant properties complying with UL 94V-0 standards, enhancing safety by preventing prolonged burning if exposed to fire. The connector’s operating temperature range is from -20°C minimum to a maximum of 85°C, which suits a wide variety of industrial and consumer electronics environments.

With an IDC (Insulation Displacement Contact) termination type, wires do not require stripping before insertion, saving time and effort during assembly. The built-in retention mechanism secures the cable to withstand impact and vibration, ensuring stable connections in challenging conditions.

This connector is used extensively in audio-visual systems, smartphones, consumer electronics, and sensor control applications due to its compact, space-saving design and reliable performance. Its straight orientation enables easy cable routing in tight spaces.

The connector supports a wire size range between 26 and 20 AWG for versatility. Thermoplastic body delivers insulation protection to prevent electric shocks. High conductivity copper alloy contacts ensure stable electrical performance.

Gold over nickel plating enhances corrosion resistance and durability. Flame retardant rating UL 94V-0 adds safety assurance. Compact design for space efficiency in device assemblies. Reliable cable retention mechanism for secure connections.

Manufactured in Japan ensuring consistent quality and reliability.

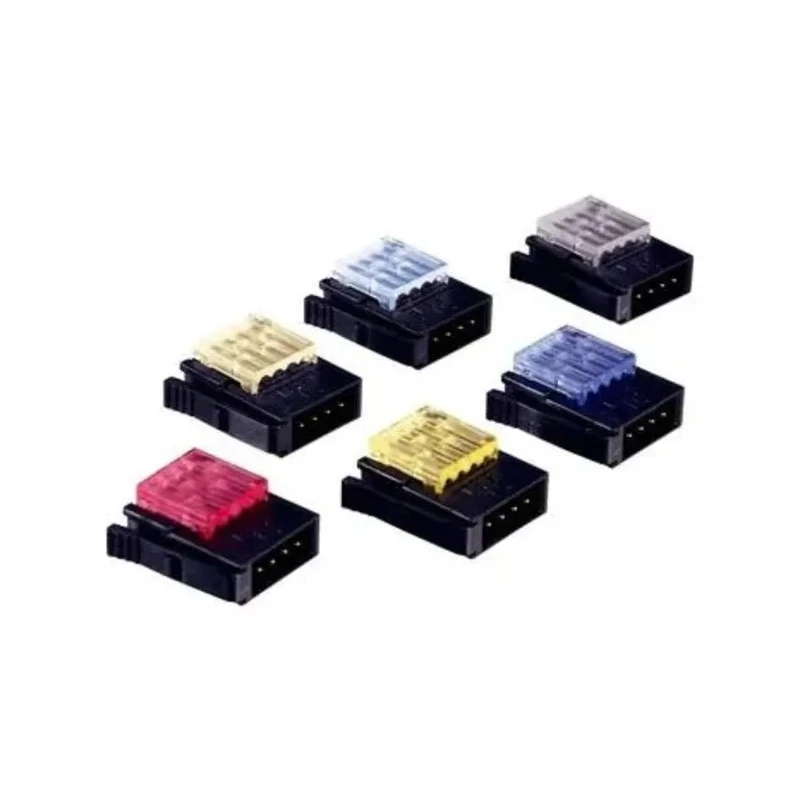

3M’s 371 series Mini-Clamp II connectors provide a standard for sensor, LED, switch, and other small device connections, featuring easy IDC termination without special wire preparation. These connectors provide cost-effective and reliable connectivity suitable for factory automation, industrial controls, and other I/O applications.
