STMicroelectronics Brushed DC Motor Low Voltage Dual Brush DC Motor Driver 16-Pin QFN STSPIN240

Free Delivery in India | Lowest Global Shipping Charges

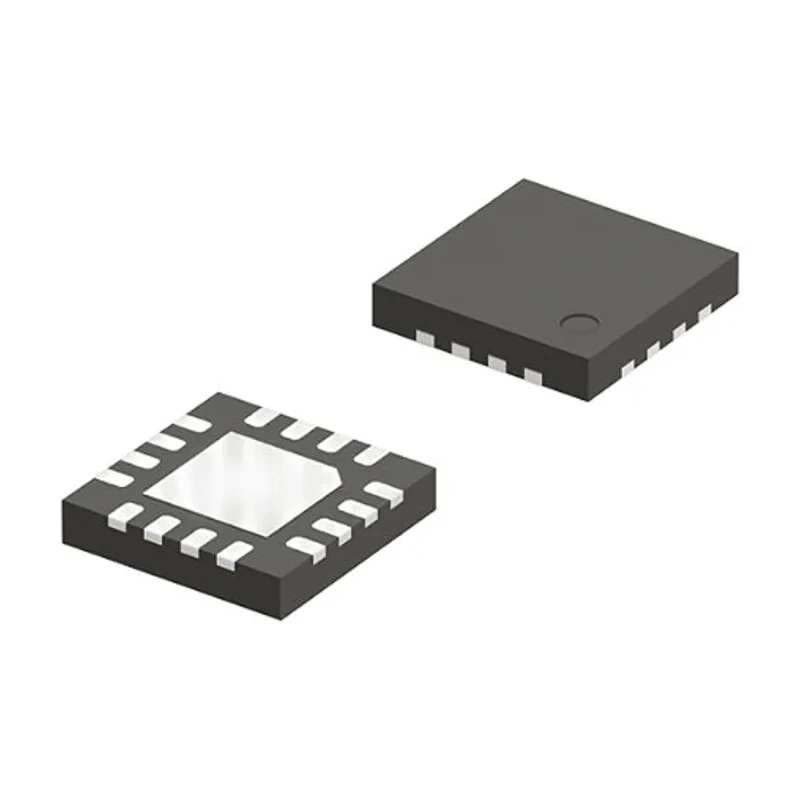

STMicroelectronics Brushed DC Motor Low Voltage Dual Brush DC Motor Driver 16-Pin QFN STSPIN240

Name: STMicroelectronics Brushed DC Motor Low Voltage Dual Brush DC Motor Driver 16-Pin QFN STSPIN240
Brand: STMicroelectronics
SKU: 218845
Price: 2.62 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	980μm
Length	3.15mm
Model	STSPIN240
Width	3.15mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	STSPIN
Configuration	H Bridge
Output Current	1.3A
Maximum Operating Temperature	150°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Standards/Approvals	ECOPACK
Pin Count	16
Maximum Supply Voltage	10V
Minimum Supply Voltage	1.8V
Supply Current	1.3mA

Key Features

Operates with a supply voltage range of 1.8 to 10 V for versatile battery-powered applications.
Maximum output current of 1.3 Arms for reliable motor control.
Implements H bridge configuration with integrated PWM current control and fixed off-time.
Features extensive protection including overcurrent, overtemperature, and short-circuit safeguards.
Compact 3.15 x 3.15 mm QFN package measuring 980 μm in height.
Low standby current consumption less than 80 nA for energy-efficient operation.
Designed for surface mount with 16 pins suitable for modern electronic assemblies.
Operating temperature range from -40°C to 150°C for robust industrial performance.

Product Description

STMicroelectronics STSPIN240 is a brushed DC motor low voltage dual brush DC motor driver integrated into a small 16-pin QFN package measuring 3.15 x 3.15 mm with a height of 980 μm. It features an H bridge configuration optimized for battery-powered devices.

This device provides a maximum output current of 1.3 Arms and supports an operating voltage range from 1.8 to 10 V. The dual full bridges implement independent PWM current controllers with fixed off-time to accurately manage motor speed and torque.

Protection features include non-dissipative overcurrent protection, short-circuit protection, and thermal shutdown, ensuring reliable operation in demanding conditions. It has a very low standby current consumption of less than 80 nA, thus extending battery life in portable applications.

The STSPIN240 is designed for surface mount applications with a 16-pin QFN package, making it suitable for compact electronic circuit assemblies. It can operate in temperatures ranging from -40°C up to 150°C and complies with ECOPACK standards, highlighting its environmental compliance.

This motor driver IC is widely used in automotive, industrial, and consumer electronics where efficient and reliable brushed DC motor control is critical. Its small form factor combined with advanced protection and energy-saving features make it suitable for demanding embedded system designs.

Operates between 1.8 to 10 V supply voltage. Maximum output current of 1.3 Arms ensures robust motor control. Independent PWM controllers provide precise current regulation. Wide operating temperature range from -40°C to 150°C.

Energy-efficient with standby consumption under 80 nA. Overcurrent, short-circuit, and thermal protections enhance reliability. Surface mountable 16-pin QFN package sized 3.15 x 3.15 x 0.98 mm. Explore reliable Motor Driver ICs like the STSPIN240 to integrate advanced motor control in your industrial and electronic applications via EnvMart’s extensive catalog.
