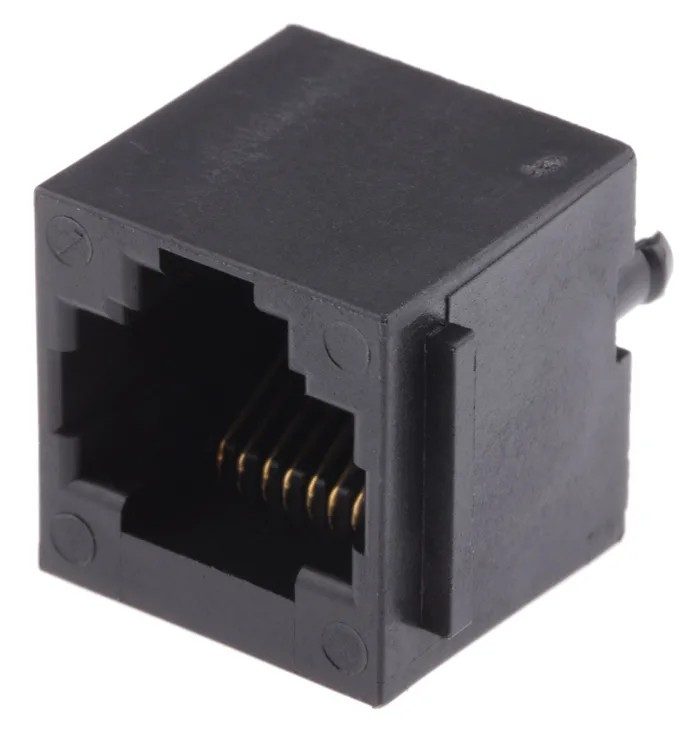

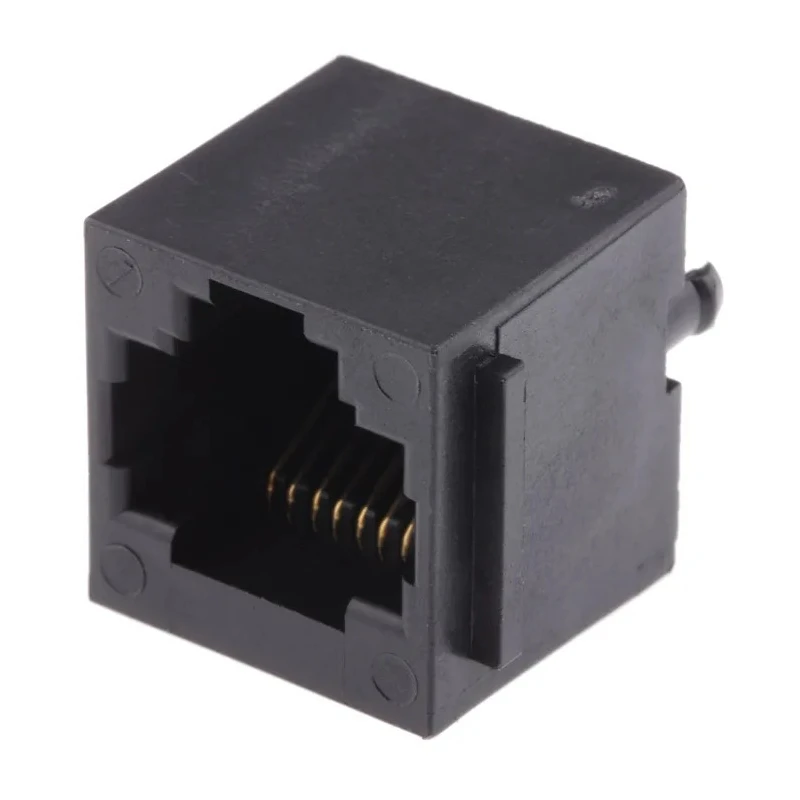

Amphenol Communications Solutions MOD JACK Series RJ45 Connector Female Through Hole Cat3 Shielded Straight 1 90598-001LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions MOD JACK Series RJ45 Connector Female Through Hole Cat3 Shielded Straight 1 90598-001LF

Name: Amphenol Communications Solutions MOD JACK Series RJ45 Connector Female Through Hole Cat3 Shielded Straight 1 90598-001LF
Brand: Amphenol Communications Solutions
SKU: 218280
Price: 1.59 USD
Availability: InStock



Category Ethernet Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	China
Brand	Amphenol Communications Solutions
Orientation	Straight
Length	15.87mm
Model	90598-001LF
Depth	15.62mm
Connector Type	Modular Jack
Number Of Ways	8
Width	17.78mm
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	MOD JACK
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-65°C
Shield Type	Shielded
Contact Plating	Gold
Connector Gender	Female
LAN Category	Cat3
Ethernet Connector Type	RJ45

Key Features

The connector supports Cat3 LAN category for data communication.
Features a shielded design providing EMI and ESD protection.
Through hole mount type ensures secure PCB attachment.
Constructed with copper alloy contacts plated in gold for enhanced conductivity.
Operating temperature range from -65°C to 125°C for robust performance.
Compact dimensions with a length of 15.87mm and width of 17.78mm.
Compatible with solder termination type for reliable electrical connections.

Product Description

Amphenol Communications Solutions 90598-001LF MOD JACK Series RJ45 Connector Female is a high-quality modular jack connector designed for Cat3 network applications. This connector is engineered to support low speed networking such as telephones, modems, and POS terminals where reliable connectivity and EMI shielding are essential.

The RJ45 connector features a shielded construction that offers excellent protection against electromagnetic interference and electrostatic discharge, making it suitable for sensitive electronic environments. It is mounted through hole style, providing stable PCB fixation supported by board locks during the soldering process.

Manufactured with copper alloy contacts and gold plating, this connector ensures high conductivity and corrosion resistance. It operates efficiently within a wide temperature range from -65°C to 125°C, suitable for diverse industrial and commercial applications.

The compact form factor, measuring approximately 15.87mm in length and 17.78mm in width, makes it ideal for space-limited circuit board designs. The straight orientation facilitates easy cable connections without strain.

The connector supports Cat3 LAN standards for communications up to 16 Mbps. Shielded design minimizes EMI and ESD impact. Through hole mounting ensures durable PCB attachment with board locks. Gold plated copper alloy contacts enhance signal integrity.

Solder termination type for robust electrical contact. Wide operating temperature range from -65°C to 125°C. Compact dimensions optimize PCB space utilization.

This RJ45 modular jack is ideal for use in telecommunications, data networking, POS machines, security systems, laptops, and other low-speed Ethernet applications. It is engineered for industrial, laboratory, and commercial network connectivity setups.
