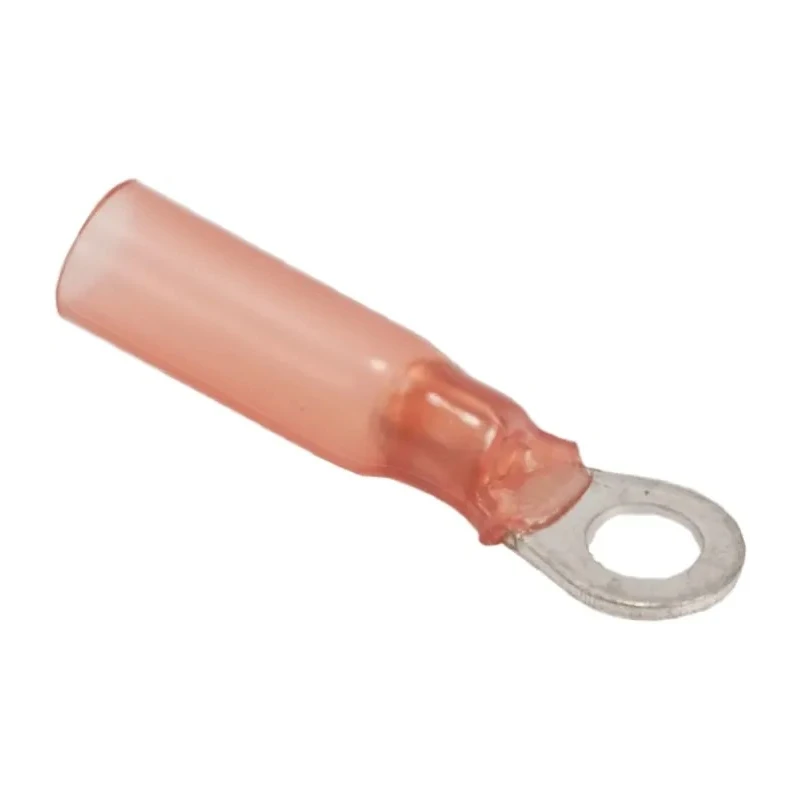

TE Connectivity TERMINYL Insulated Ring Terminal M4 Stud Size 8 AWG Wire Size Red 53041
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 1.09mm |
| Model | 53041 |
| Insulation | Insulated |
| Overall Length | 36.2mm |
| Contact Material | Copper |
| Series | TERMINYL |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Minimum Wire Size AWG | 8AWG |
| Outer Ring Diameter | 12.14mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed from high conductivity copper with tin plating for corrosion resistance.
- Nylon insulation provides dielectric strength and easy wire insertion.
- Suitable for wire sizes 8 AWG with a stud size of M4.
- Overall length of 36.2 mm ensures reliable connectivity.
- Meets RoHS standards and tolerates maximum operating temperature of 105°C.
- Provides maximum vibration and shock resistance for industrial applications.
- Outer ring diameter measures 12.14 mm and inner ring diameter 4.34 mm.
- Contact thickness is 1.09 mm for stable electrical contact.
Product Description
TE Connectivity 53041 Insulated Ring Terminal is a robust electrical connector designed to facilitate secure and reliable wiring connections for M4 stud applications with 8 AWG wire sizes. It features high-grade copper contact material plated with tin to deliver excellent conductivity and corrosion resistance. The nylon insulation improves dielectric strength and ensures ease of wire insertion, enhancing safety and performance.
With an overall length of 36.2 mm and ring dimensions optimized for M4 studs, these ring terminals are engineered to withstand harsh industrial conditions including high vibration, shock, and temperatures up to 105°C. The tin-plated copper contacts ensure durability and consistent electrical connection reliability.
These terminals conform to RoHS regulations and are manufactured in the United States to meet stringent quality standards. Ideal for use in electrical, industrial manufacturing, and power distribution applications, this ring terminal provides a reliable solution for wire termination needs where secure stud connections are needed.
Constructed from high conductivity copper with tin plating for corrosion resistance. Nylon insulation provides dielectric strength and easy wire insertion. Suitable for M4 stud size and 8 AWG wire size applications. Overall length of 36.2 mm for stable and secure connections.
Conforms to RoHS standards ensuring compliance with environmental regulations. Designed to withstand extreme vibration, shock, and operating temperatures. Outer ring diameter of 12.14 mm and inner ring diameter of 4.34 mm.
Contact thickness of 1.09 mm enhances mechanical and electrical stability.
These ring terminals are essential components in electrical panels, automation equipment, and other industrial power connector assemblies. Their design ensures efficiency and safety in wiring setups, making them suitable for electrical contractors, manufacturers, and maintenance professionals.
Discover more products within the Electronics & Electricals > Power Connectors > Ring Terminal category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This terminal is suitable for wire sizes of 8 AWG, with a minimum wire size of 6.6 mm² and a maximum wire size of 10.5 mm².
The outer ring diameter measures 12.14 mm, the inner ring diameter is 4.34 mm, and the contact thickness is 1.09 mm.
It features nylon insulation that provides dielectric strength and facilitates easy wire insertion.
The contact material is high conductivity copper, which is plated with tin for corrosion resistance.
Yes, it conforms to RoHS standards, ensuring compliance with environmental regulations.
This model is ideal for use in electrical, industrial manufacturing, and power distribution applications.
It is manufactured in the United States.
The overall length of this terminal is 36.2 mm.
This terminal is designed for M4 stud size applications.
The design ensures maximum vibration and shock resistance, making it suitable for harsh industrial conditions.
This terminal belongs to the TERMINYL series by TE Connectivity.
