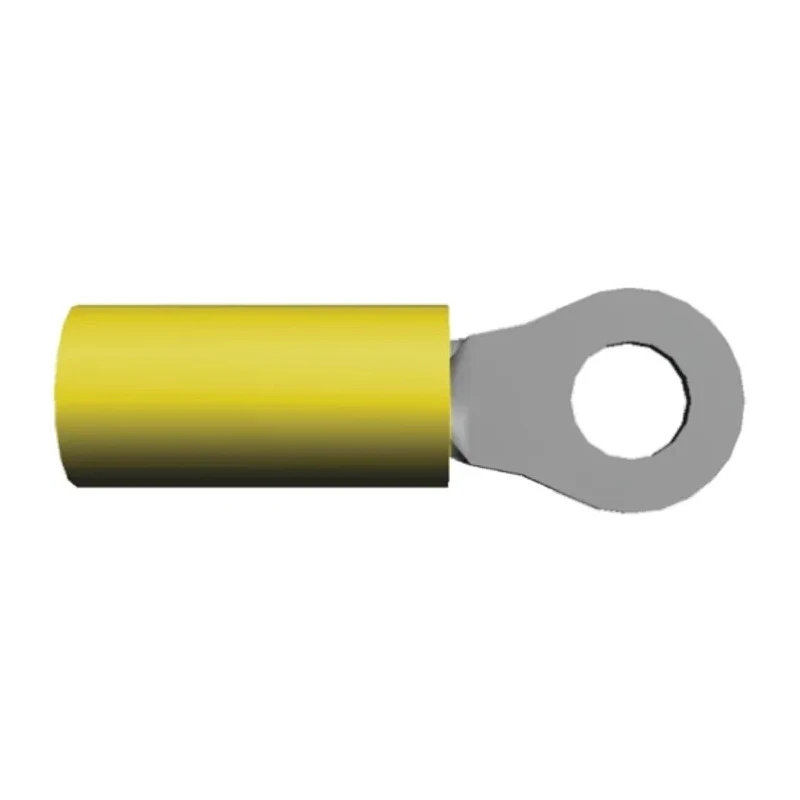

TE Connectivity PIDG Insulated Ring Terminal Yellow M3.5 Stud Size 12 AWG to 10 AWG Wire Size 320567
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 320567 |
| Insulation | Insulated |
| Overall Length | 27.51mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.375mm |
| Inner Ring Diameter | 0.145mm |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Outer nylon insulation sleeve is color-coded yellow for easy wire size identification.
- Serrated wire barrel ensures superior contact and tensile strength.
- Funnelled wire entry design for efficient and rapid wire insertion.
- Meets RoHS compliance for environmental safety.
- Suitable for operating temperatures up to 105°C.
- Designed for reliable crimp performance in demanding circuit environments.
- Compatible with wire sizes ranging from 12 to 10 AWG (2.6 mm² to 6.6 mm²).
Product Description
TE Connectivity 320567 PIDG Insulated Ring Terminal is a precisely engineered ring tongue wire crimp terminal designed for superior reliability in demanding electrical circuits. Featuring a high conductivity copper body and barrel, it ensures optimal electrical performance and strength.
The terminal includes serrations inside the wire barrel to provide maximum contact area and tensile strength after crimping, making it highly dependable for industrial and commercial applications. Its copper sleeve supports wire insulation and prevents fraying, while the outer yellow nylon sleeve provides color coding to facilitate easy wire gauge identification.
The nozzle-shaped wire entry simplifies inserting wires quickly and reduces wire strand damage, supporting high-speed production environments. These terminals are suitable for wire sizes 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²) and utilize M3.5 stud size for versatile mounting options.
Designed to operate reliably up to 105°C, this PIDG insulated ring terminal meets RoHS standards ensuring compliance with environmental directives. It is ideal for applications in instrumentation, control panels, lighting, power supplies, automotive, aerospace, motors, and various manufacturing sectors.
High conductivity copper body for enhanced electrical performance. Color-coded yellow nylon insulation sleeve for easy identification. Serrated barrel design improves contact and tensile strength. Funnelled entry allows rapid wire insertion during production.
RoHS compliant and suitable up to 105°C operating temperature. Compatible with 12 to 10 AWG wire sizes (2.6 mm² to 6.6 mm²). M3.5 stud size for reliable mechanical connection. Tin plating on copper contact for corrosion resistance.
Reliable crimping enabled by specialized tool dies and design.
This TE Connectivity PIDG Ring Terminal is a versatile and robust electrical connector designed to deliver consistent performance in a wide array of industrial applications. Explore TE Connectivity products and Ring Terminals on EnvMart for your electrical connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
The maximum operating temperature for this insulated ring terminal is 105°C.
The contact material of this terminal is copper, which provides enhanced electrical performance.
This terminal is designed for an M3.5 stud size, allowing for versatile mounting options.
This terminal meets RoHS compliance, ensuring it adheres to environmental safety standards.
The overall length of this insulated ring terminal is 27.51 mm.
Yes, it features a funnelled wire entry design that simplifies and speeds up wire insertion while reducing strand damage.
This terminal has a nylon insulation sleeve, which is color-coded yellow for easy identification of wire sizes.
The thickness of this terminal is 0.79 mm.
The contact of this terminal is tin plated, which helps provide corrosion resistance.
This terminal is manufactured in the United States.
This terminal belongs to the PIDG series, designed for reliable performance in demanding electrical circuits.
