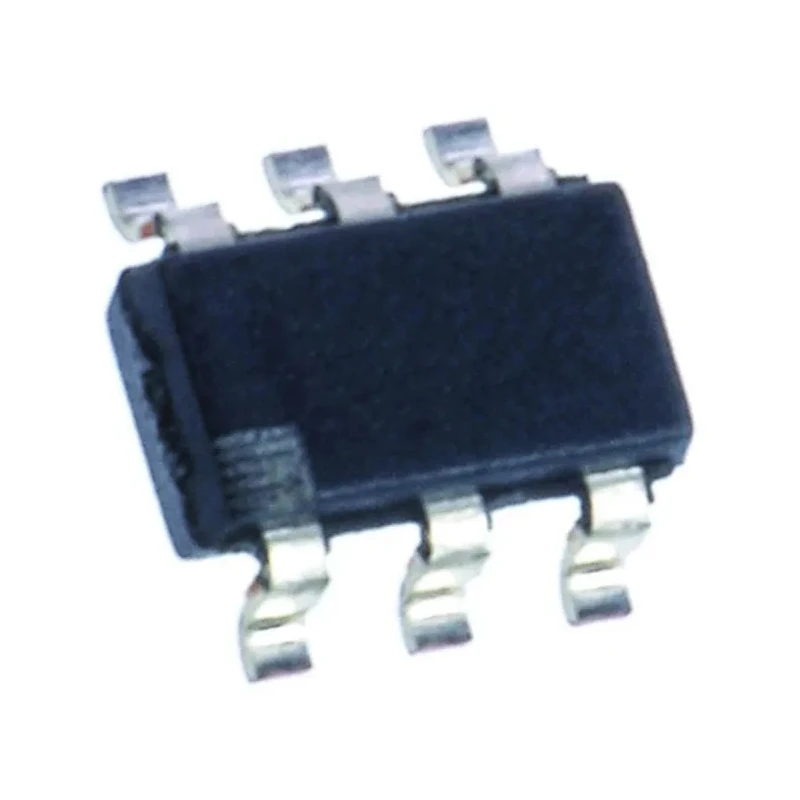

Texas Instruments 4-Element Uni-Directional TVS Diode Array 6-Pin SOT-553 TPD4E001DRLR

Texas Instruments TPD4E001DRLR is a 4-Element Uni-Directional Transient Voltage Suppressor (TVS) diode array designed for electrostatic discharge (ESD) protection of sensitive electronic data lines. Packaged in a compact 6-pin SOT-553 surface mount format, this component offers reliable transient voltage suppression for critical interfaces including DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.

The diode array features a complex diode configuration optimized for uni-directional ESD protection with a minimum breakdown voltage of 11 volts and a clamping voltage of 17 volts, which efficiently clamps voltage spikes to protect downstream circuitry. With a maximum peak pulse current rating of 5.5 amperes and low maximum reverse leakage current of 1 nA, it ensures high performance with minimal leakage under normal operation.

Operating reliably over a temperature range of -40°C to 85°C, it meets the stringent automotive industry standard AEC-Q100 and complies with IEC61000-4-2 level 4 for ESD protection, ensuring suitability for automotive and industrial applications.

The series TPD4E001 provides a robust solution for serial data bus ESD protection, allowing designers to facilitate safe and durable electronic systems in industrial, automotive, communication, and consumer electronics contexts.

This TVS diode array includes 4 elements for efficient transient voltage suppression. The device is uni-directional, designed for ESD protection on data lines. It has a 6-pin SOT-553 surface mount package suitable for compact PCB designs.

Features a minimum breakdown voltage of 11 V and clamping voltage of 17 V to safeguard circuitry. Operates within a temperature range from -40°C to 85°C ensuring reliability in various conditions. Maximum peak pulse current rating is 5.5 A providing robust surge protection.

The device supports protection for DVI, HDMI, IEEE1394, USB, Ethernet, and video lines effectively. It complies with automotive standard AEC-Q100 and IEC61000-4-2 level 4 ESD protection standards.

This component is highly suited for use in industrial electronic equipment, automotive systems, telecommunications devices, consumer electronics, and any application requiring enhanced ESD protection on sensitive data lines. The small form factor and surface mount package allow for space-efficient PCB layout designs.

EnvMart offers this Texas Instruments TPD4E001DRLR TVS Diode Array as a reliable, high-quality solution meeting industry standards and technical requirements for protecting sophisticated electronic systems.
