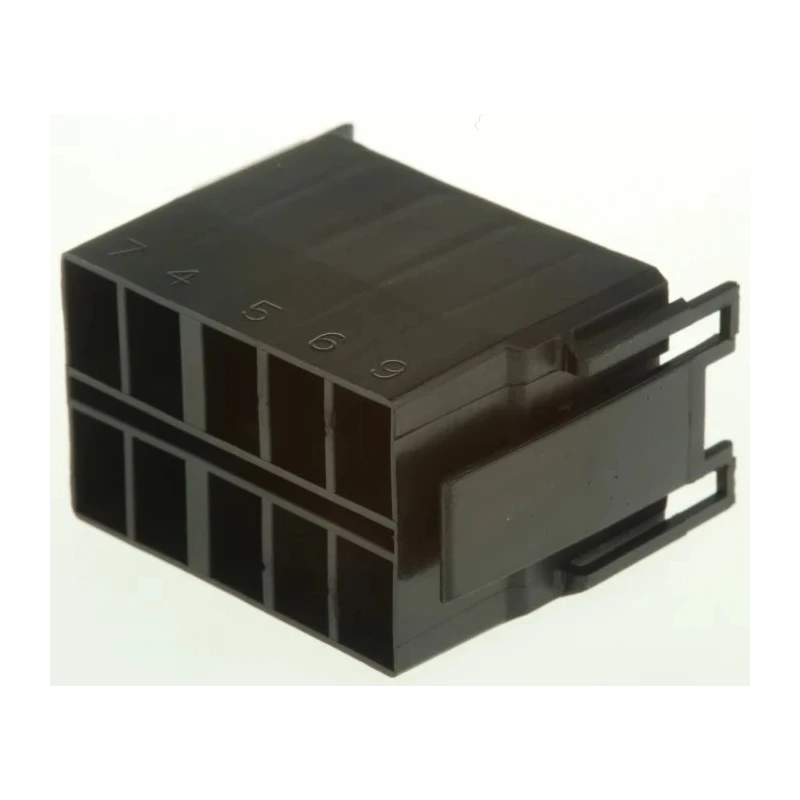

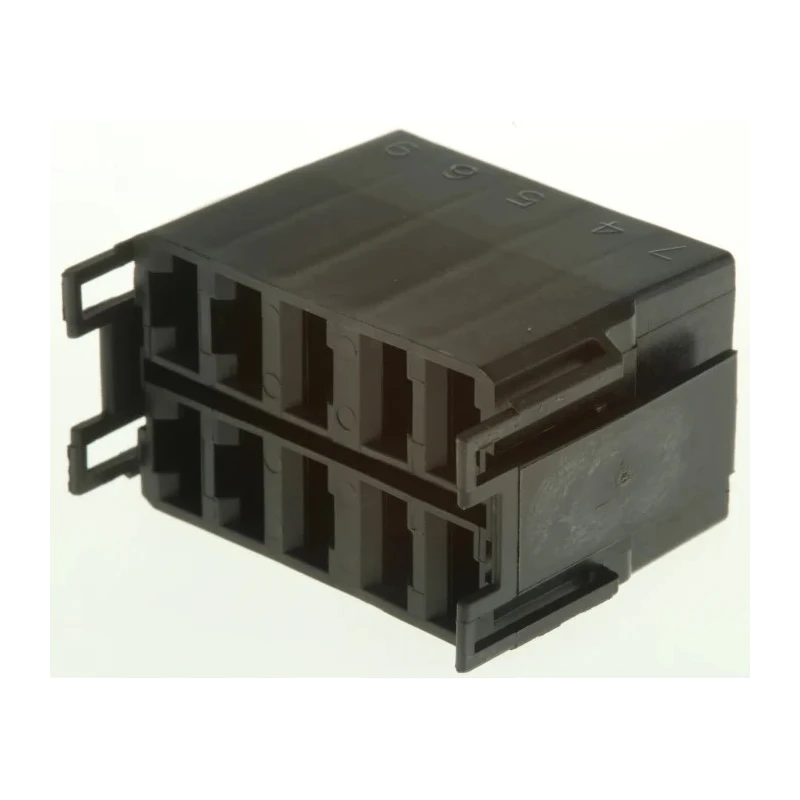

APEM Rocker Switch Connector for use with Rocker Switch U2292

APEM U2292 Rocker Switch Connector is engineered for reliable double pole electrical connections, supporting 10A current at 24V DC with snap-in rocker switch cases and 6.35x0.8mm quick connect terminals.

Designed specifically for use with rocker switches, this connector facilitates efficient wiring harness preparation and rapid panel assembly in industrial and commercial electrical systems.

Available in both non-illuminated and LED illuminated versions, it supports 12V or 24V red, green, or amber single or twin LED configurations to suit diverse signalling requirements.

The connector is compatible with a wide range of switch actuator colours and markings, allowing for tailored applications to meet specific operational needs. Manufactured in France, it complies with RoHS standards, ensuring environmentally friendly and high-quality production.

Its robust design guarantees operation in harsh environments with an operating temperature range from -40 to +85°C and a dielectric strength rating of 2,000 Vrms at 50 Hz between terminals.

With low contact resistance of 10 milliohms, this connector ensures efficient electrical conduction and system reliability.

Additional accessories such as switch case housings, panel blanking plugs, actuator removal tools, and rear crimp connector housings are available to complement the connector and optimize installation and maintenance.

Designed for use with rocker switches to facilitate wiring harnesses preparation and quick panel assembly. Double pole configuration suitable for 10A current at 24V DC. Compatible with non illuminated and LED illuminated versions with 12V or 24V LED options.

Supports various actuator colours and markings for customization. Constructed to meet RoHS standards and manufactured in France for high quality assurance. Operating temperature range from -40 to +85 °C ensures durability in various environments.

Dielectric strength is rated at 2,000 Vrms at 50 Hz between terminals for safety and reliability. Contact resistance maintained at 10 milliohms for efficient electrical conduction. Compatible accessories include switch case housings, panel blanking plugs, and actuator removal tools for enhanced installation flexibility.

This rocker switch connector is ideal for industrial, commercial, and automation applications requiring robust switch connections with easy assembly and maintenance options. Explore more Electrical Connectors and rocker switch components in our expanding EnvMart collection.
